Product overview
KL1xxx 31Version: 1.0.0
2.7.2 KL1862, KL1872 - LEDs and connection

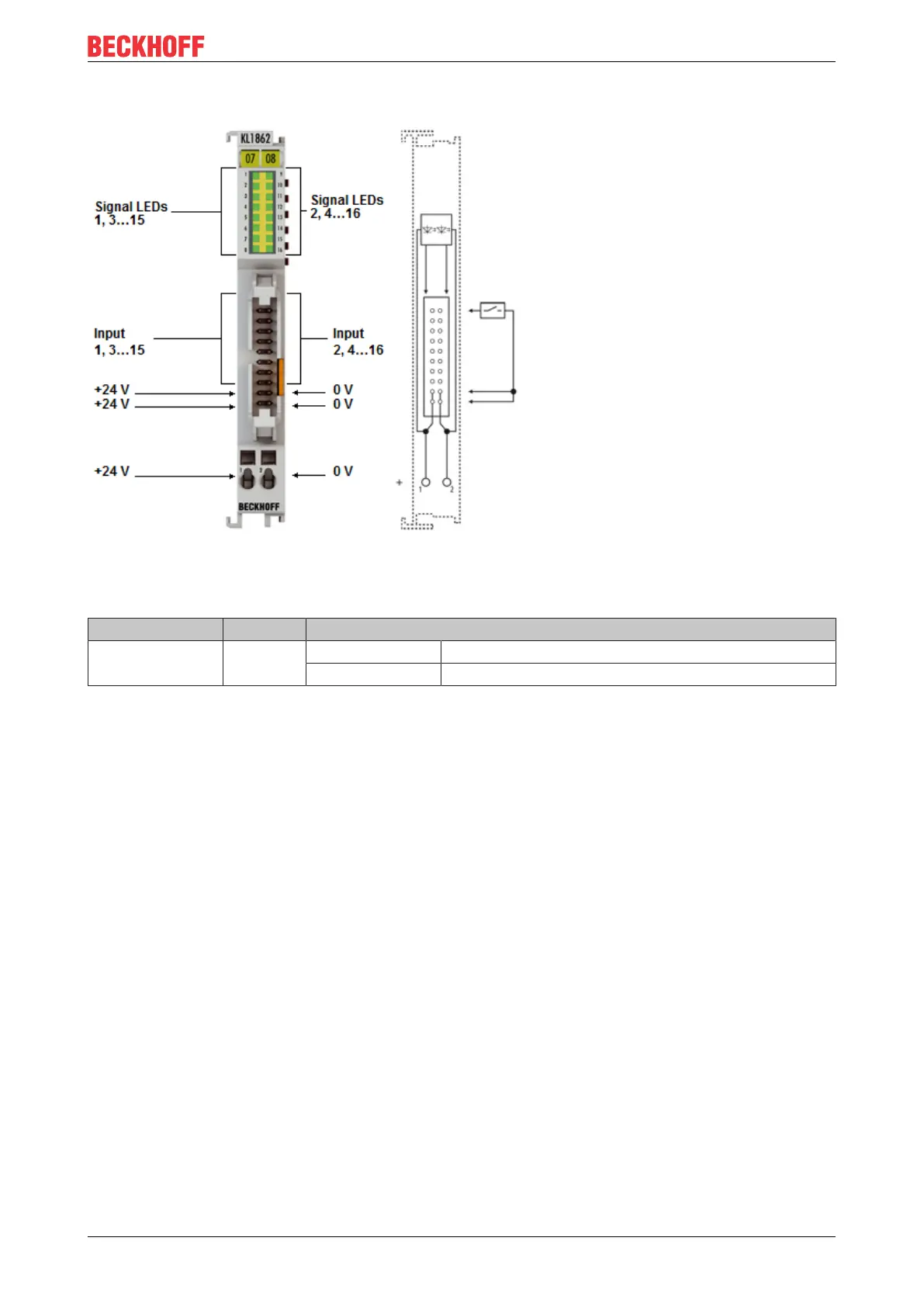

Fig.24: KL1862
KL1862, KL1872 - LEDs
LED Color Meaning
Signal LED 1 - 16 green off Signal voltage "0" (-3V ... 5V)
on Signal voltage "1" (11V ... 30V)
KL1862, KL1872 – Connection
2 x 10 pinconnector RM 2.54 mm with locking mechanism for connecting a 2 x 10 pin plug connector (post
socket with insulation displacement contact for ribbon cable); standard ribbon cable connector (standardized
according to IEC 60603-13).
