Product overview
KL1xxx 15Version: 1.0.0

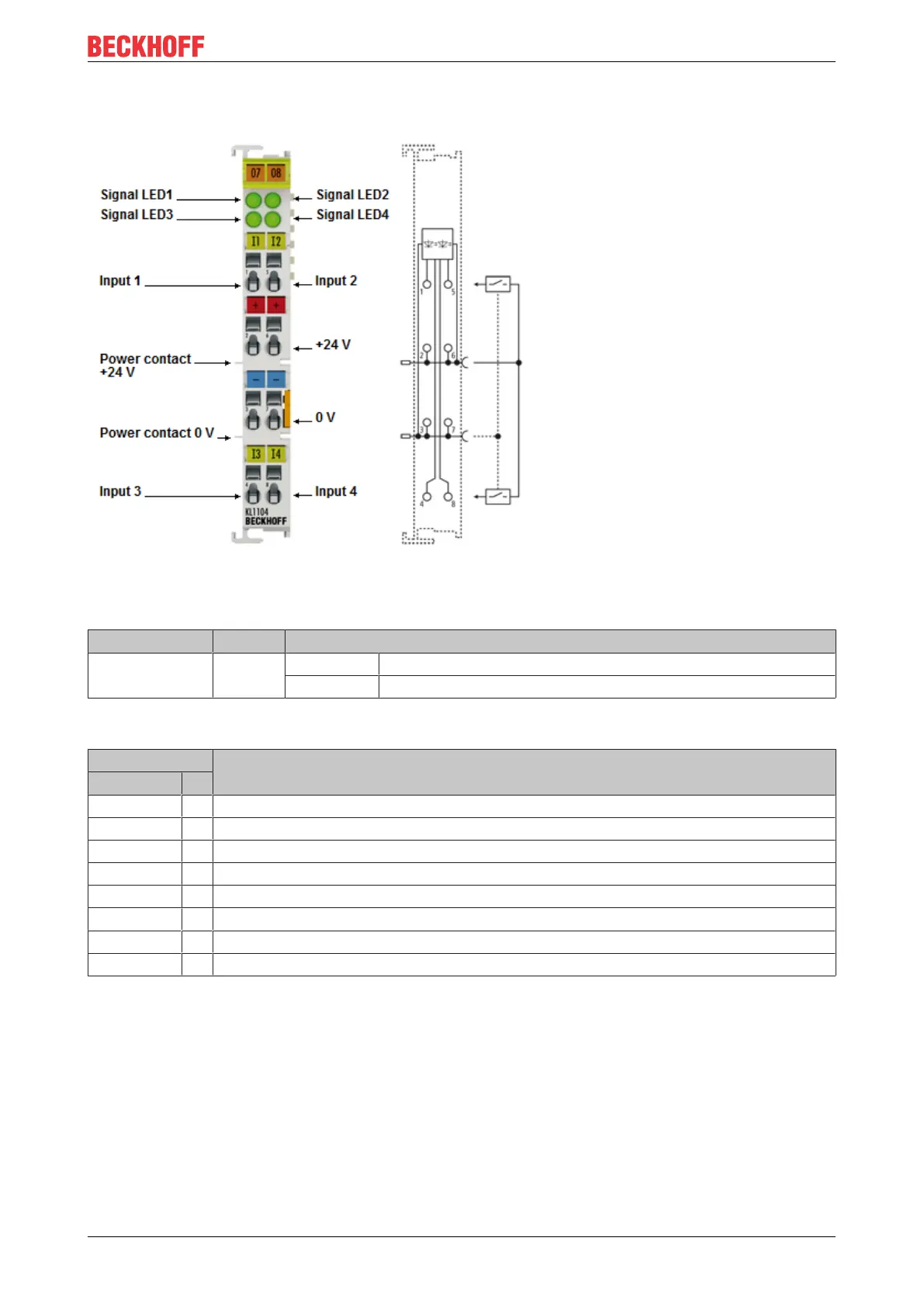

2.3.2 KL1104, KL1114 - LEDs and connection
Fig.7: KL1104
KL1104, KL1114 - LEDs
LED Color Meaning
Signal LEDs 1 -
4
green off Signal voltage "0" (-3V ... 5V)
on Signal voltage "1" (15V ... 30V)
KL1104, KL1114 - Connection
Terminal point Description
Name No.
Input1 1 Input 1
+24V 2 Sensor supply +24 V (internally connected to terminal point 6 and positive power contact)
0V 3 Sensor supply 0 V (internally connected to terminal point7 and negative power contact)
Input3 4 Input 3
Input2 5 Input 2
+24V 6 Sensor supply +24 V (internally connected to terminal point 2 and positive power contact)
0V 7 Sensor supply 0 V (internally connected to terminal point3 and negative power contact)
Input4 8 Input 4
