Application examples - overview
KL2791 21Version: 2.0.0
4 Application examples - overview
• KL2791-0000 [}21]: Speed controller terminal with power contacts
• KL2791-0011 [}22]: Speed controller terminal without power contacts
4.1 KL2791-0000 - application example
WARNING
Risk of injury through electric shock and damage to the device!
Bring the Bus Terminals system into a safe, de-energized state before starting mounting,
disassembly or wiring of the Bus Terminals!
The example illustrates control of an AC motor through a KL2791-0000. The mains voltage (230V
AC
) is
supplied to the power contacts via the KL9160 power feed terminal.

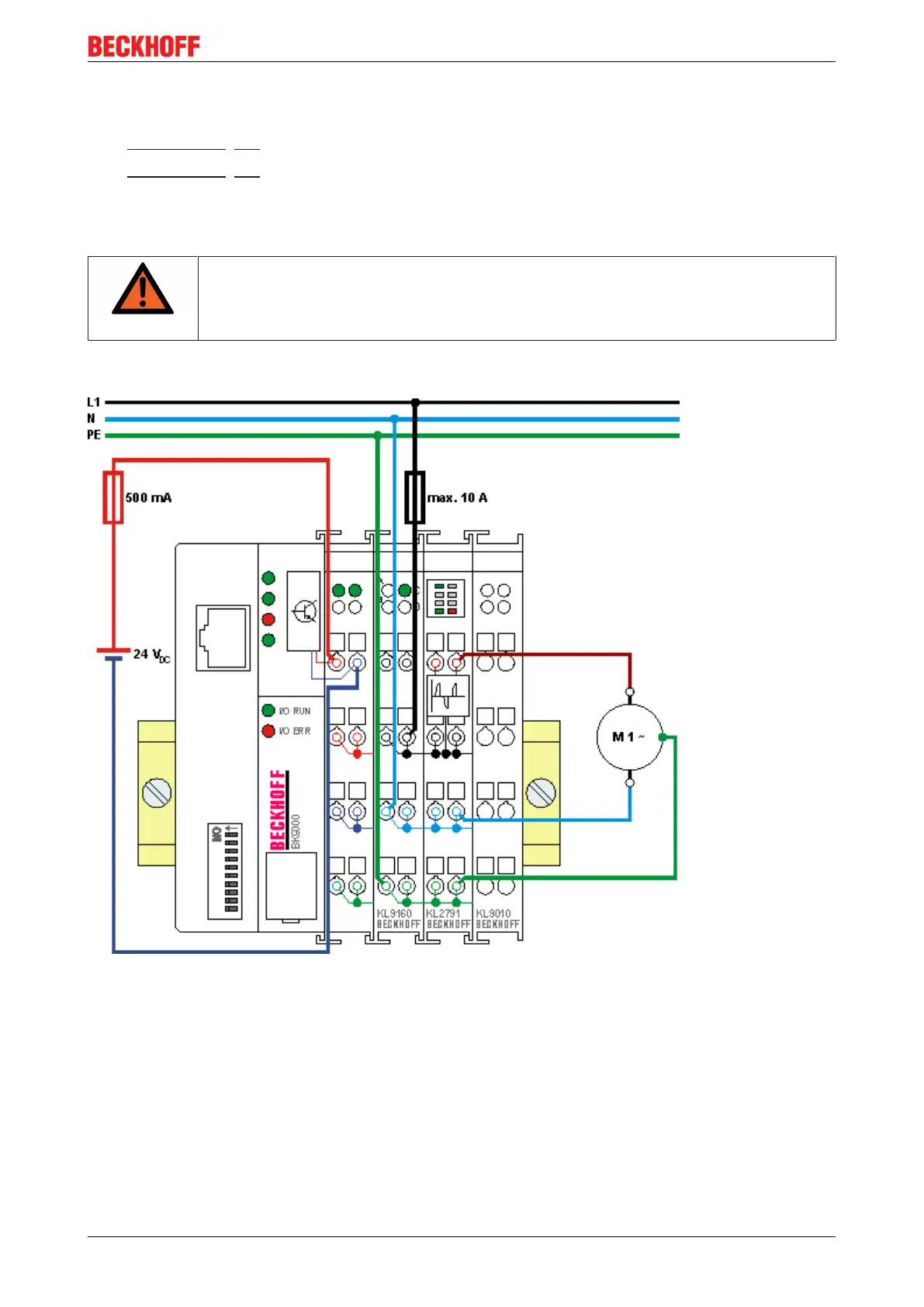

Fig.12: KL2791-0000 - application example
Power feed terminal
A power feed terminal can supply several speed controller terminals.
