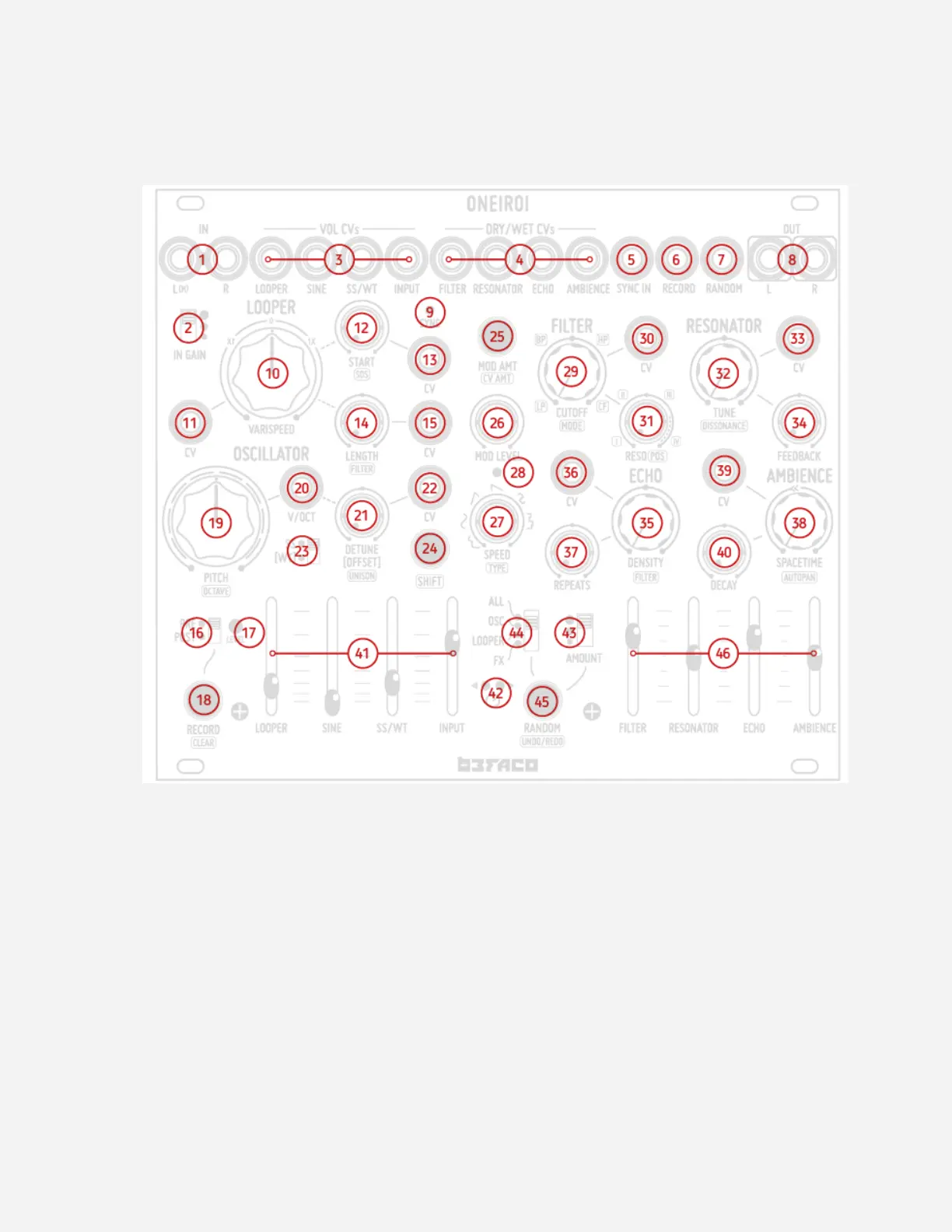

4 Front Panel controls
1. Stereo input. The left channel normals to the right channel
2. Input gain switch
3. Volume CVs. It is affecting the levels of the four signal sources. Range 0 to 10V
4. Dry/wet CVs. It is affecting the four effect units. Range 0 to 10V
5. Sync in. Synchronizes the LFO and Delay time to an external source, and reset the looper
to the start point. Accept triggers of a minimum of 1V
6. Record IN. Gate Input for recording. Start recording at a high level (>1V) and stop
recording at a low level (0V)
7. Random IN. Randomize the parameters when high (>1V)
8. Stereo output. Eurorack level. The left channel normals to the right channel
