BEHR S5 - Rear View of the behr S5; Overview of Rear Side; Tubing Connections; Electrical Connections

– 7 –
© behr Labor-Technik 2013
249101
RS232-1 Titration Unit
Parallel-PrinterRS232-2 / Titr.Unit
USB
Level Detectors
Power
3.13.2
3.3
3.4
3.5
3.6 3.7
H BO3 3
1
Water outlet
4
Cooling water inlet
with filter
H O Sample2
2
Pump for suction
sample
5
NaOH
3
H O for steam
generator
2
6
Rear view of the behr S 5
Fig. 1: Overview of the rear side
1.1 Air vent
1.2 Overpressure steam release
1.3 Steam generator overflow outlet
1.4 Steam generator drain
1.5 Excessive temperature circuit breaker

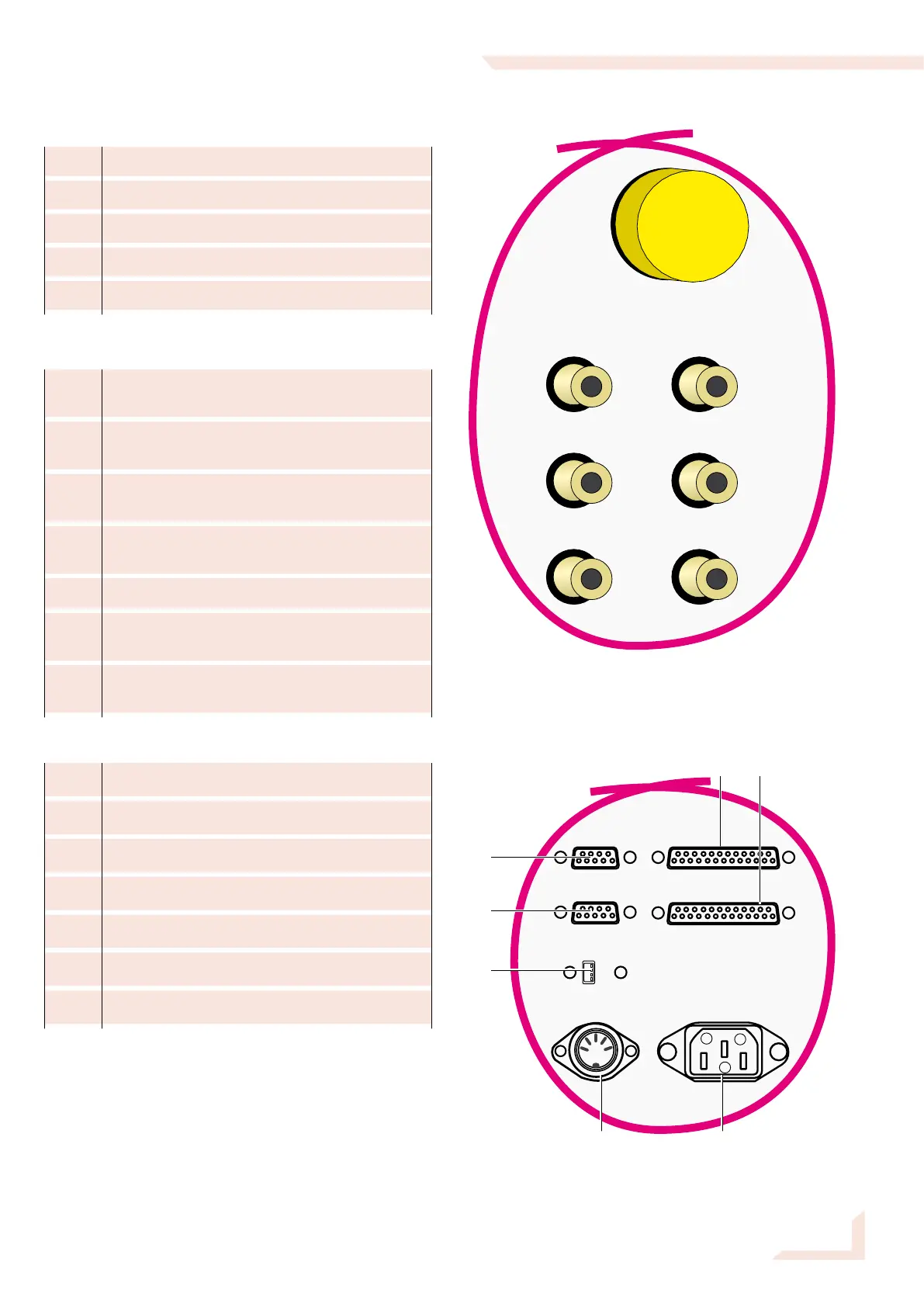

Fig. 2: Tubing connections
-- Cooling water inlet connection with filter
sieve; ¾“ connection for 10/17 PVC hose
1
Boric acid; Connection nipple for 4/7 PVC tub-
ing
2
sample dilution water; Connection nipple for 4/7
PVC tubing
3
NaOH.
Connection nipple for 8/12 PVC-tubing
4
Cooling water outlet, 8/12 PVC tubing
5
sample waste disposal;-Connection nipple for
8/12 Verprene tubing
6
H
2
O for steam generation; Connection nipple
for 4/7 PVC-tubing
Fig. 3: Electrical connections
3.1 Socket for electrical (Mains) power cable
3.2 Socket for level monitoring
3.3 Reserved for future use
3.4 RS 232 port for titrator
3.5 RS 232 port for software updates
3.6 25-pin port for titrator
3.7 Printer port
Rear view of the behr S 5
Figure 3: Electrical connectors
Figure 2: Hose connectors
