Use the POWER switch to switch the ULTRAMIZERPRO on or off.
1.3.2 Back panel

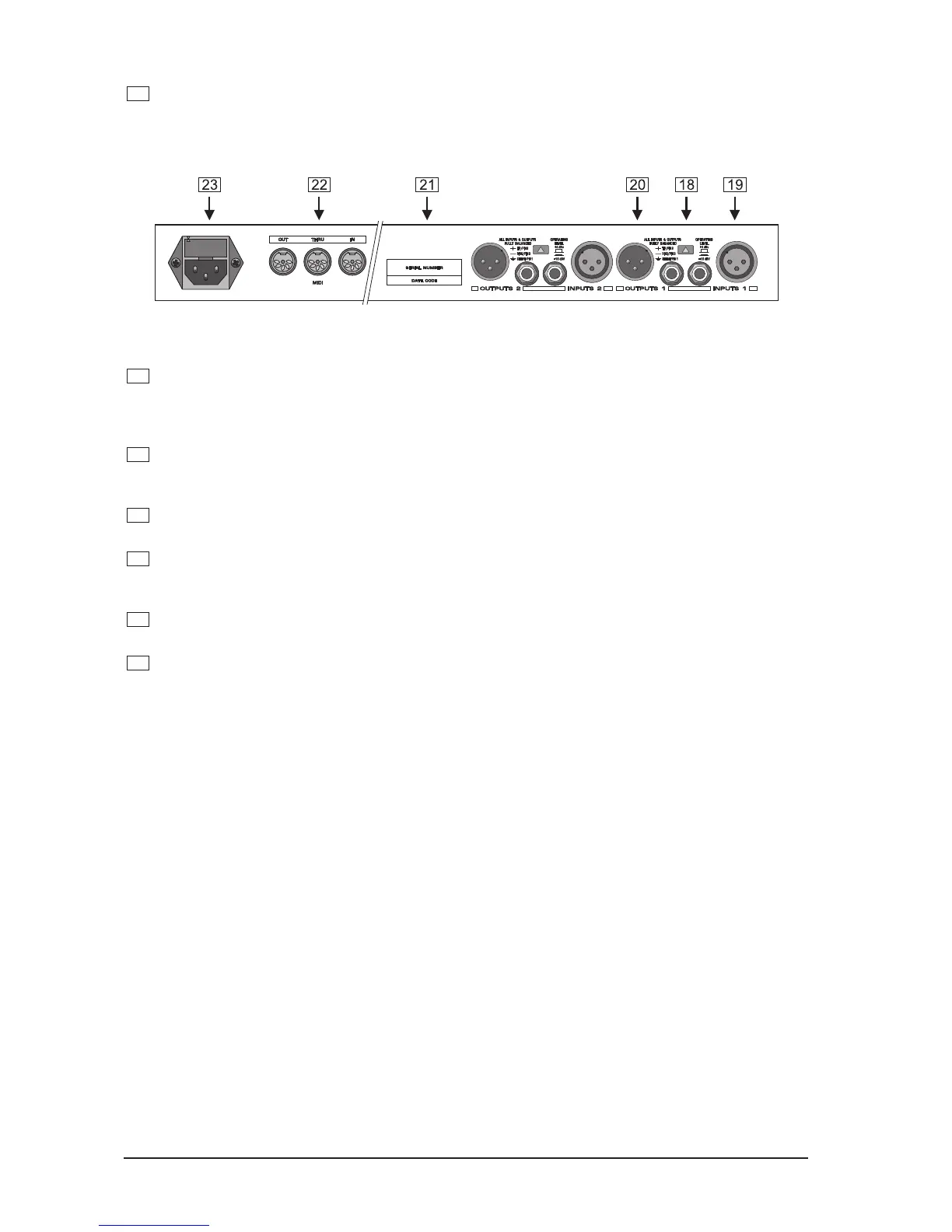

Fig. 1.4: Back panel connectors and control elements
18
Use the OPERATING LEVEL switch to adapt the ULTRAMIZERPRO to different operating levels. You
can select a -10dBV semi-pro level used for home recording and a +4dBu level used in professional
studios. This way the ULTRAMIZERPRO is always optimally adapted to the used nominal operating
level.
19
These are the ULTRAMIZERPROs analog INPUTS. The ULTRAMIZERPRO has both XLR and jack
inputs and outputs. Each XLR and jack set is wired parallel and can be used either balanced or
unbalanced.
20
These are the ULTRAMIZERPROs analog OUTPUTS. Also on balanced or unbalanced XLR or TRS
jacks.
21
Please take the time to complete the enclosed Warranty Registration Card. Put the instruction manual
in a safe place and return the completed Warranty Registration Card to us within 14 days of purchase,
making sure that the dealer stamp has been acquired.
22
These are the ULTRAMIZERPROs MIDI connectors (MIDI OUT / THRU / IN). Via these connectors
total remote control is possible.
23
This is the MAINS CONNECTOR / FUSE HOLDER / VOLTAGE SELECTOR. Before you connect the
unit, please make sure that the displayed voltage corresponds to your Mains supply. Please note that
the AC voltage selection is defined by the position of the Fuse Holder. If you intend to change the
operating voltage, remove the Fuse Holder and turn it by 180 degrees before you reinsert it. Matching
the two markers monitors the selected voltage. Please note that, depending on the mains voltage
supplied to the unit, the correct fuse type and rate must be installed (see chapter 6.2 Specifications).
Please use the enclosed mains cable to connect the unit to the mains power supply.
+ Please note that not all appliances can be used with different mains voltage ratings. Please
check the description on the back of the unit and the box.
1.3.3 Restoring factory defaults
To protect the DSP1400P against user errors, an important edit command has been implemented via a
particular key combination. In normal operating mode the presets cannot be reset to their factory defaults, so
as to secure your own programs as safely as possible. Please proceed as follows to reinitialize the preset
default settings:
+ Press and keep the keys Effect and PRESET before powering up the ULTRAMIZERPRO. Then
switch on the DSP1400P and keep the two keys pressed for about two seconds. The program
numbers are counted up and reset to their original default settings.
2. OPERATION
The ULTRAMIZERPRO is one of the latest generation digital processing devices. Especially designed for
processing the total mix or complex music signals. BEHRINGERs past experience in digital and analog
processing devices come together in this new device. In the DSP1400P, the advantages of digital technology
