Built-in expansion port for audio
interface cards or digital
networking bridges
MIDI In/Out for remote scene recall
or controlling other MIDI equipment
Future rmware updates, incl.
new FX “Plug Ins”, downloadable
from behringer.com free of charge
Conceived and designed by
BEHRINGER Germany

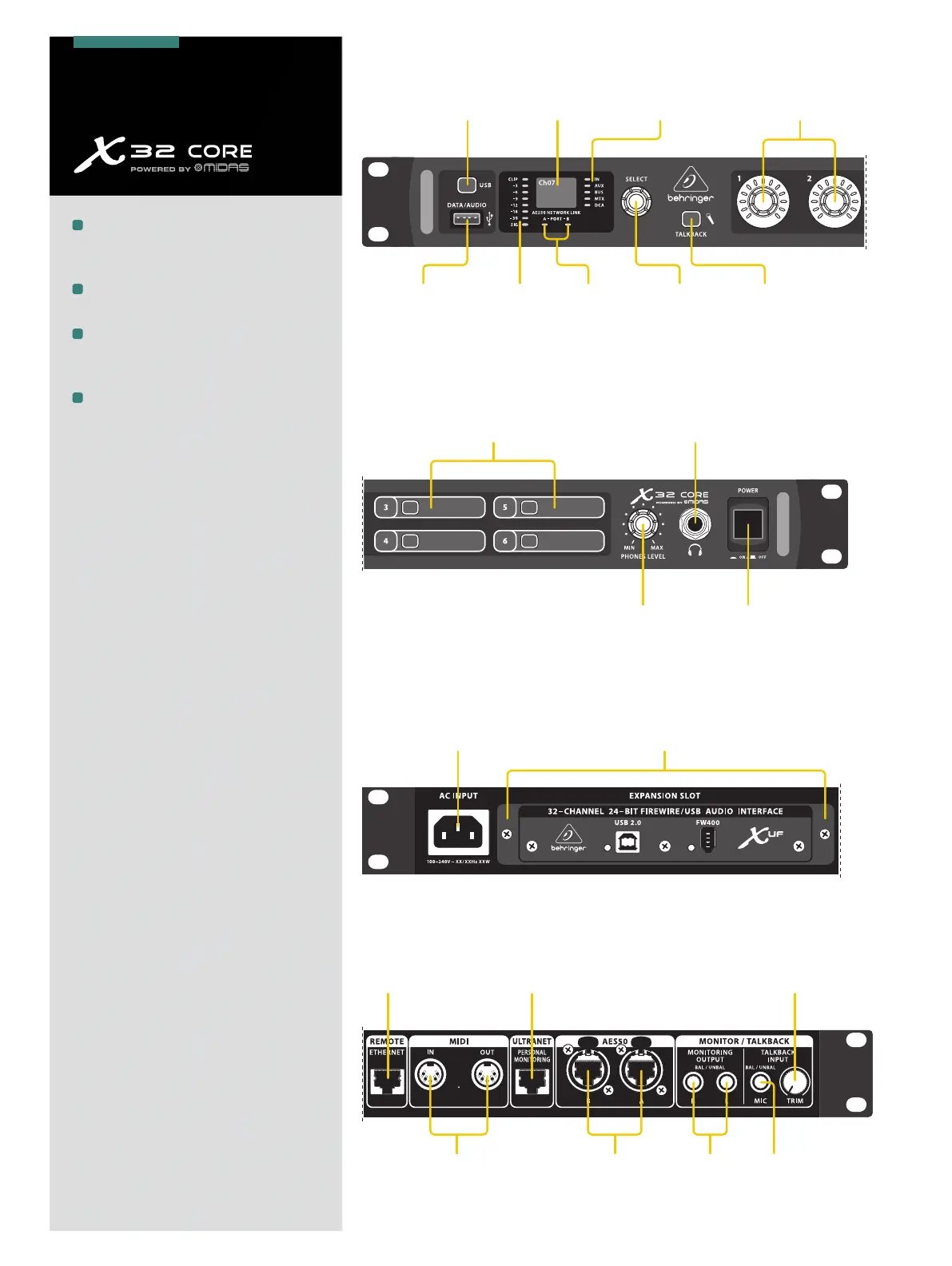

Front and Rear Panels
*FireWire, iPhone, and iPad are trademarks of Apple Inc., registered
in the U.S. and other countries. The AES50 trademark is a property of
the Audio Engineering Society, NY. All trademarks, including, butnot
limited to Lexicon, PCM, EMT, Quantec and QRS are trademarks or
registered trademarks of their respective owners. Their use neither
constitutes a claim of the trademarks nor aliation of the trademark
owners with MUSIC Group. Product names are mentioned solely as a
reference for X32 CORE compatibility and eects.
**P16 Personal Monitoring System and Digital Snake are not included.
USB socket for rmware
updates and recording
Level meter
LCD channel display
AES50 Network
Link indicators
Input/Auxiliary/Bus/
Matrix/DCA indicator
Input/Auxiliary/Bus/
Matrix/DCA selector
Talkback control
Assignable
parameter controls
USB storage
and setup
Assignable buttons
(user-denable for frequent tasks)
Phones Level
control
Power switch
Headphones output
IEC Power socket
Slot for mounting
optional interface cards
Ethernet connector
ULTRANET output to
P16 personal mixers
MIDI I/O AES50 A/B
Bi-Directional Ports
Monitor
Outputs
Talkback mic
input
Sensitivity adjust for
talkback mic
