10
MIPP
Release 01 01/12

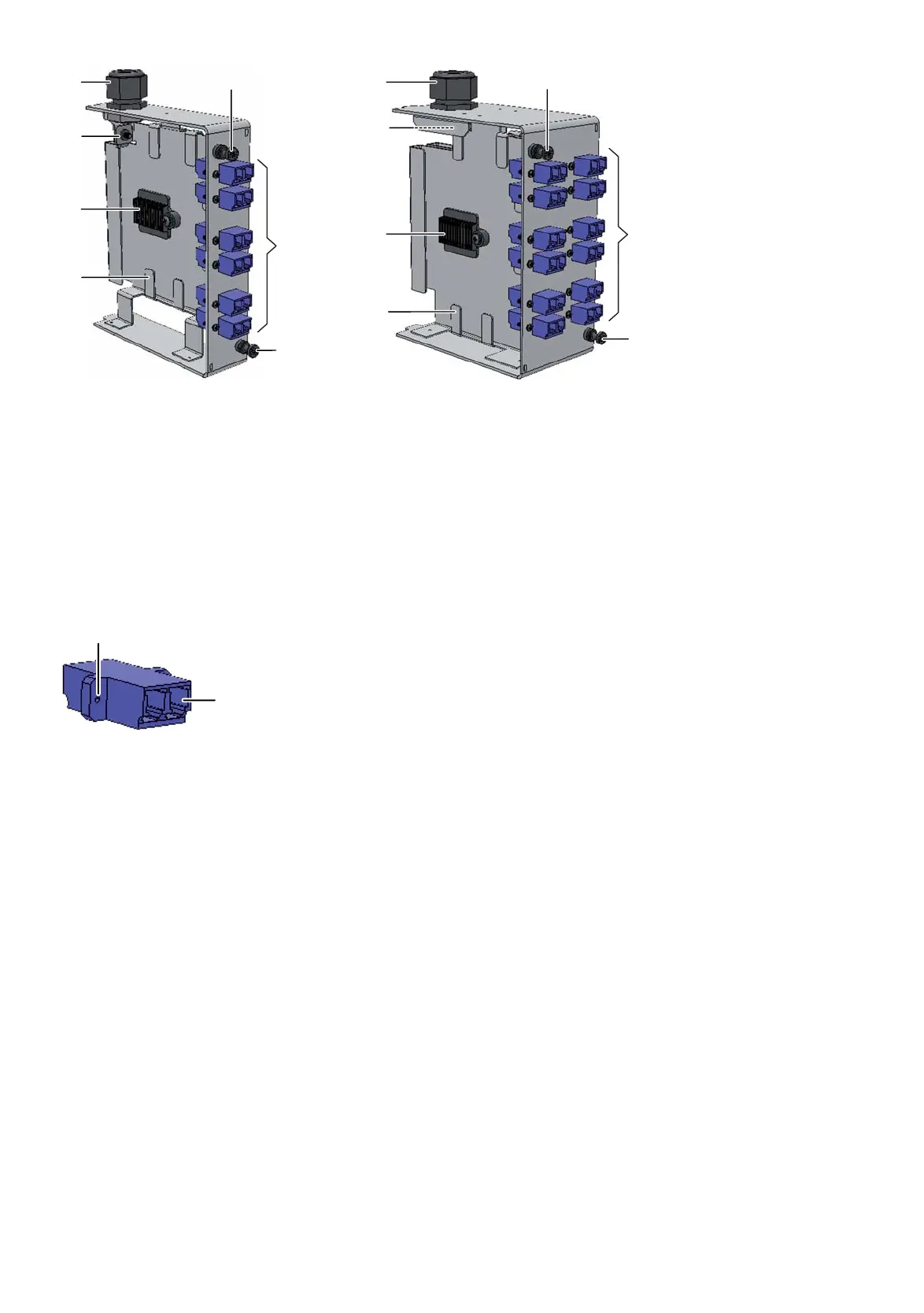

Figure 3: LC single module and LC double module – Components
1 – Cable gland
2 – Fixing screw
3 – LC Duplex adapters
4 – Fixing screw
5 – Fiber guiding "fingers"
6 – Optical fiber splice holder
7 – Fixing for strain relief
Figure 4: LC Duplex adapter
1 – Hole for assembly
2 – Connector inlet
The following cable types can be used:
 OF loose tube cable
 Tight buffered cable
 Semi-tight buffered cable
The following connector types can be used:
 LC according to IEC 61754-20
2
4
1
3
5
6
1
5
6
4
3
2
7
7
1
2
