Proceed as follows:
 Remove the wall mounting plate from the device.
 Position the wall mounting plate as a drill hole guide at the desired spot
on the wall and draw-in the four bore holes.
 Drill 4 holes and insert the 4 wall anchors into the holes.
 Affix the wall mounting plate to the wall with the top 2 screws.
 Assemble the device on the wall mounting plate as shown on fig. 13:
Attach the upper snap-in guide of the device into the rail and press the
device down against the rail until it snaps into place.

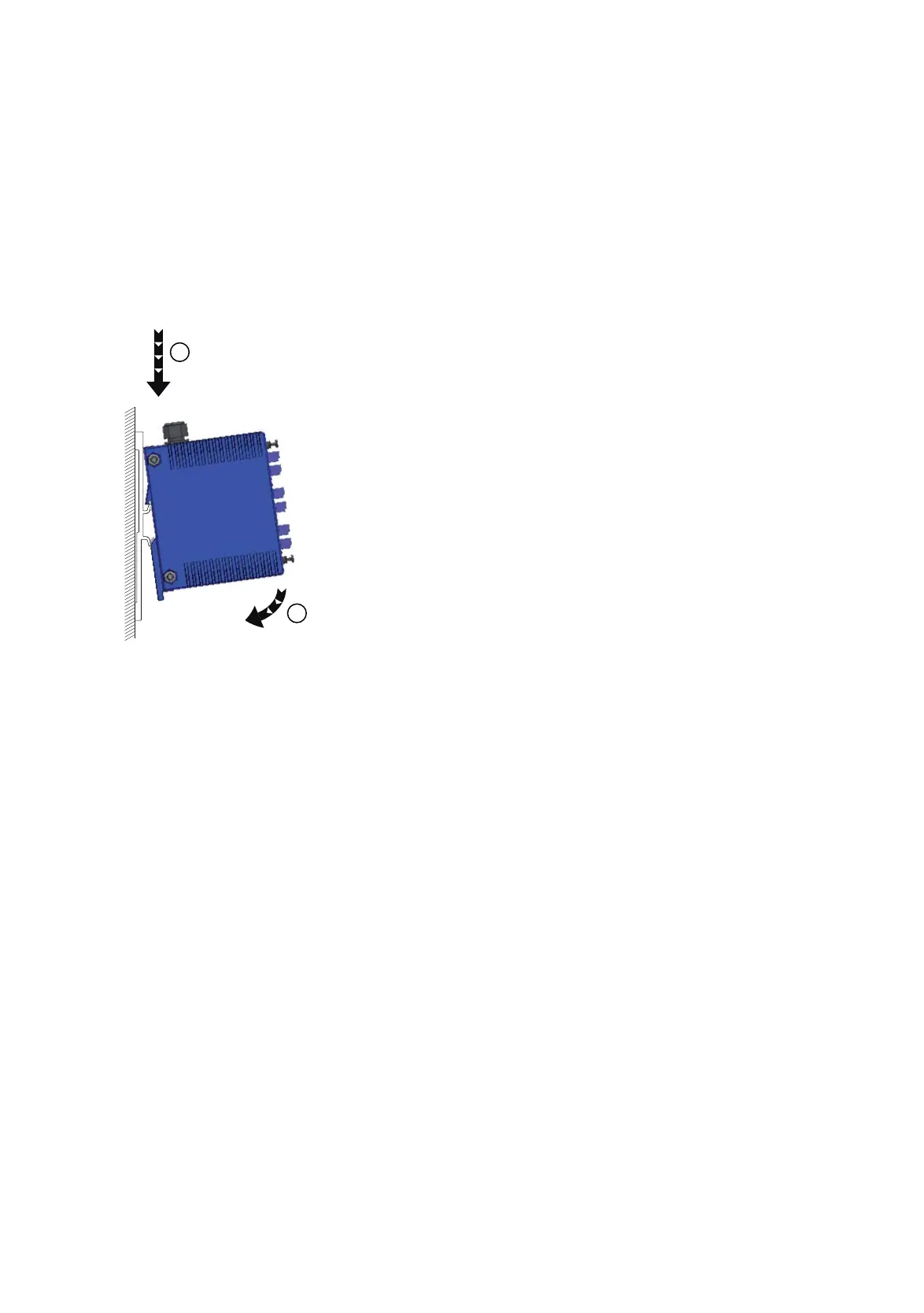

Figure 13: Assembling the device on the wall mounting plate
 Turn the 2 lower screws through the drill holes in the device and in the wall
mounting plate in the wall.
Device is now ready for operation.
