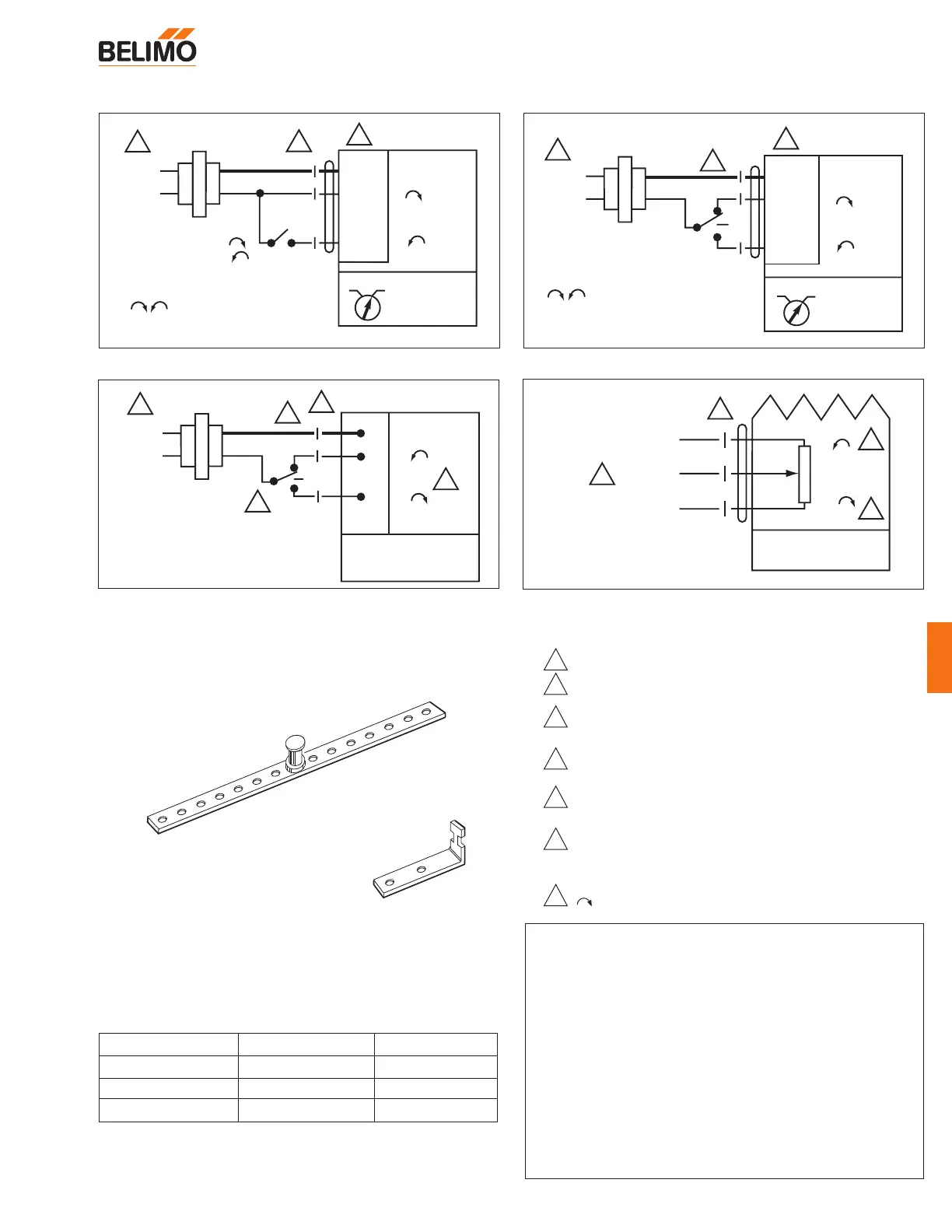

Belimo LM Series User Manual

159
LM
G20492-Subject to change. © Belimo Aircontrols (USA), Inc.
1
3
2
24 VAC Transformer
a open
a closed
The indication of direction
is valid for switch position R.
Blk (1) Common
Red (2) +
Wht (3) +
LM24-3 (-T) US
LR
a
Line
Volts
1
2
3
24 VAC Transformer
The indication of direction
is valid for switch position CW.
Blk (1) Common
Red (2) +
Wht (3) +
LM24-3 US
CCW CW
Line
Volts
LM24-3 (-T) US / LM24-3 (-5P0) (-T) US
On-off/ floating point control, non-spring return, direct coupled, 24 V
On-off control
Line
Volts
1 Common
2 +
3 +
24 VAC Transformer
LM24-3-T US
LM24-5P0-T US
6
5
1
2
4
Floating point or on-off control of LM24-3-T US and
LM24-3-5P0-T US
Floating point or on-off control
Bulk packaging
Bulk Pack No. Actuator Type Quantity/Pack
LM24-3.1 US LM24-3 US 32
LM24-3-T.1 US LM24-3-T US 48
LM24-3-5P0-T.1 US LM24-3-5P0-T US 48
®
T-Type bracket
These are included in the single-actuator
packages and are available
at no extra cost in the bulk
packages upon request.
Part # 11533 (1 piece)
L-Type anti-rotation bracket.
Included with each bulk
packaged actuator.
W080
W082
W081
To have better control of job site inventory and reduce the
environmental impact of unnecessary packing material.
Part #: 22065 (1 piece)
12502-00002
(includes 22065: 16 pieces)
shipped with bulk pack option.
LM24… on-off - Typical Specification:
Control damper actuators shall be electronic direct coupled
type which require no crank arm and linkage. Actuators shall
be UL and CSA listed, have a 5 year warranty, and be man-
ufactured under ISO 9001 International Quality Control
Standards. Actuators shall have reversing switch and manual
override on the cover, and be protected from overload at all
angles of rotation. If required, actuator will be provided with
screw terminal strip for electrical connections (LM24-3-T US
and LM24-3-5P0-T US). If required, one adjustable SPDT aux-
iliary switch shall be provided (LM24-S US). If required, actua-
tors shall be provided with a built-in 5 kΩ feedback potentiome-
ter (LM24-3-5P0-T US) for use in modulating (floating point)
applications. Actuators shall be as manufactured by Belimo.
LM24-3-5P0-T US
0
10/5
10kΩ/5kΩ
Feedback
potentiometer
7
5
4
7
Org (P1)
Blue (P2)
Yel (P3)
Feedback potentiometer wiring for LM24-5P0-T US
3
2
4
5
6
7
1
Provide overload protection and disconnect as required.
Actuators may also be powered by 24 VDC.
Actuators are provided with color coded wires. Wire
numbers are provided for reference.
For position indication, the LM24-3-5P0-T US is provided
with a 5 kΩ feedback potentiometer.
The LM24-3-T US and LM24-3-5P0-T US are provided
with a numbered screw terminal strip instead of cable.
Switch wires 2 and 3 to change rotation direction of
LM24-3-T US and LM24-3-5P0-T US (does not have
CW/CCW external switch).
Value based on resistance between (P1) and (P2).
indicates direction of rotation of actuator.
Notes
W090
