LM24-SR (-T) US
Proportional control, non-spring return, direct coupled,
24 V, for 2 to 10 VDC and 4 to 20 mA control signal
1
2
7
24 VAC Transformer
Blk (1) Common
Red (2) + Hot
Wht (3) Y 2 to
10V Input
Grn (5) U 2 to 10V Output
LM24-SR US
CCW CW
Line
Volts
2 to 10 VDC
Control Signal
2 to 10 VDC
Feedback Signal
(–)
(+)
(–)
(+)
6
1
2
7
24 VAC Transformer
Blk (1) Common
Red (2) + Hot
Wht (3) Y 2 to
10V Input
Grn (5) U 2 to 10V Output
LM24-SR US
CCW CW
Line
Volts
4 to 20 mA
Control Signal
2 to 10 VDC
Feedback Signal
(–)
(+)
(–)
(+)
6
8
Ω
500Ω

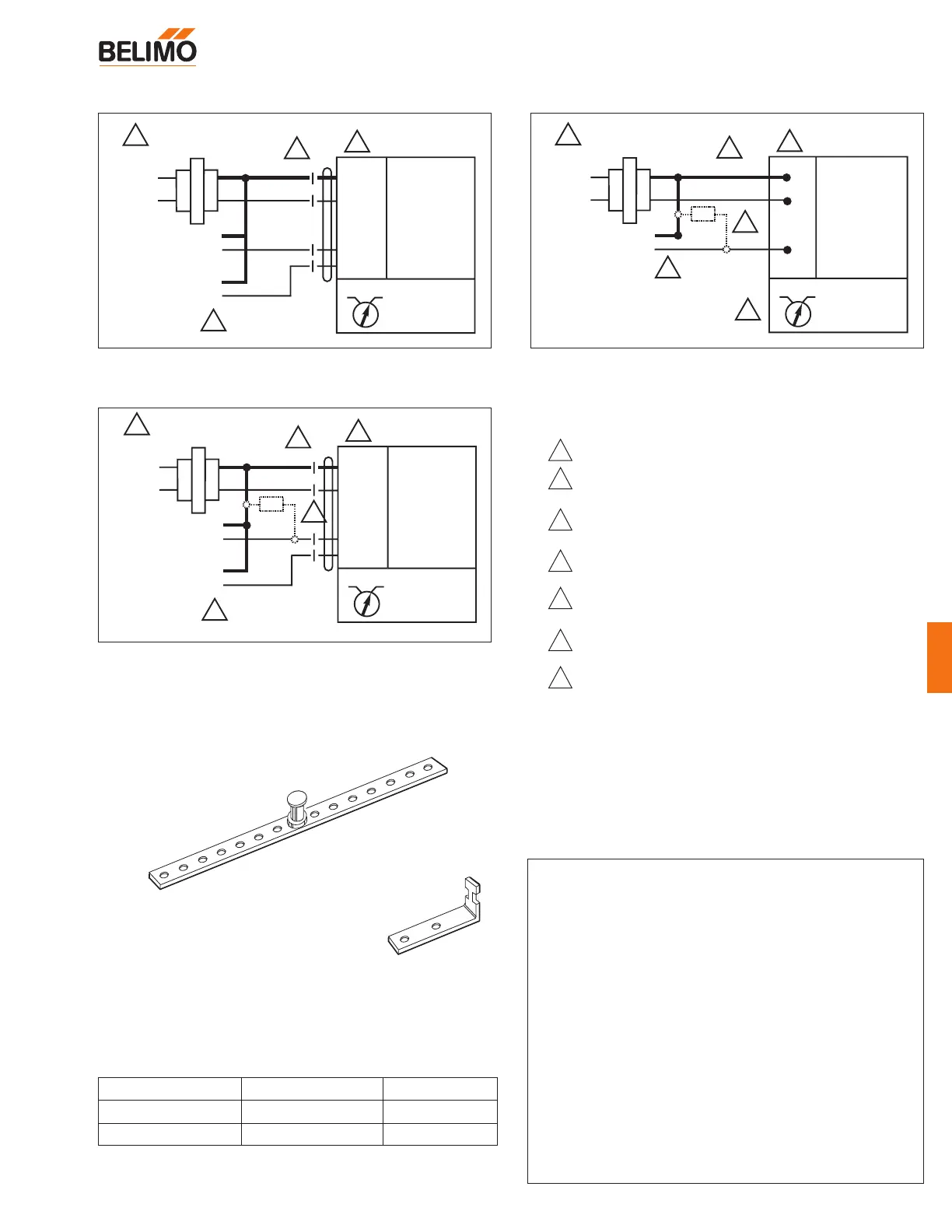

2 to 10 VDC control of LM24-SR US
4 to 20 mA control of LM24-SR US with 2 to 10 VDC
feedback output
2
4
5
6
7
8
1
Provide overload protection and disconnect as required.
Actuators are provided with color coded wires. Wire
numbers are provided for reference.
The LM24-SR-T US is provided a screw terminal
instead of cable.
The LM24-SR-T US does not have feedback.
Connect actuator common (Wire 1) to Negative (–) leg
of control circuits only.
Actuators may also be powered by 24 VDC.
A 500Ω resistor (ZG-R01) must be added for 4 to 20
mA control.
1
4
7
24 VAC Transformer
1 Common
2 + Hot
3
Y 2 to 10V Input
LM24-SR-T US
CCW CW
Line
Volts
4 to 20 mA
Control Signal
w/500Ω resistor
(–)
(+)
6
8
Ω
500Ω
2 to 10 VDC
5
2 to 10 VDC and 4 to 20 mA control of LM24-SR-T US
®
Bulk packaging LM24-SR US and LM24-SR-T US
LM24-SR (-T) US - Typical Specification:
Control damper actuators shall be electronic direct coupled
type which require no crank arm and linkage. Actuators shall
be UL and CSA listed, have a 5 year warranty, and be man-
ufactured under ISO 9001 International Quality Control
Standards. Actuators shall have Brushless DC motor.
Actuators shall have reversing switch and gear disengage-
ment button on the cover, and be electronically protected from
overload at all angles of rotation. Actuators shall respond to 2
to 10VDC output relative to position regardless of the amount
of damper rotation. A 2 to 10 VDC feedback signal shall be
provided for position indication or master-slave applications.
Actuators shall be as manufactured by Belimo.
An electronic angle of rotation adjustment shall be provided to
reduce the actuators rotation from 100 to 20% while still using
the full input signal and feedback control range. (LM24-SR US)
If required, actuator will be provided with screw terminal strip for
electrical connections (LM24-SR-T US).
Notes
Bulk Pack No. Actuator Type Quantity/Pack
LM24-SR .1 US LM24-SR US 32
LM24-SR-T.1 US LM24-SR-T US 48
T-Type bracket
These are included in the single-actuator
packages and are available
at no extra cost in the bulk
packages upon request.
Part # 11533 (1 piece)
W083W084
W085
To have better control of job site inventory and reduce the
environmental impact of unnecessary packing material.
L-Type anti-rotation bracket.
Included with each bulk
packaged actuator.
Part #: 22065 (1 piece)
12502-00002
(includes 22065: 16 pieces)
shipped with bulk pack option.
