Application
For on-off control of dampers in HVAC systems (LMC24 US).
For proportional modulation of dampers in HVAC systems
(LMC24-SR-T US). Actuator sizing should be done in accor-
dance with the damper manufacturer’s specifications. The
actuator mounts directly to the damper operating shaft with
a universal V-bolt clamp assembly.
The LMC24-SR-T US actuator operates in response to a 2 to 10
VDC or, with the addition of a 500 Ω resistor, a 4 to 20 mA input
signal from an electronic controller or positioner. A 2 to 10 VDC
feedback signal is provided for position indication or master
slave applications. The LMC24-SR US provides an electronic
angle of rotation adjustment (not available in the LMC24-SR-T US) to
limit the actuators rotation 20% to 100% while still using the full
input signal and feedback control range.
Operation
The actuator is not provided with and does not require any limit
switches, but is electronically protected against overload. The
angle of rotation is mechanically limited to 95°. When reaching
the damper or actuator end position, the actuator automatically
stops. The gears can be manually disengaged with a button on
the actuator cover. The position of the actuator is indicated by a
visual pointer. The anti-rotation strap supplied with the actuator
will prevent lateral movement.
Accessories
LM-P T-type anti-rotation bracket
IRM-100 Input scaling module (For LMC24-SR-T US only)
ZG-LMSA Short shaft adaptor
PTA-250 Pulse width modulating interface
(For LMC24-SR-T US only)
SGA24 Min. and/or manual positioner in NEMA 4 housing
(For LMC24-SR-T US only)
SGF24 Min. and/or manual positioner for flush panel mount
(For LMC24-SR-T US only)
Tool-06 8mm and 10 mm wrench
ZAD24 Digital position indication (For LMC24-SR-T US only)
ZG-R01 500Ω resistor for 4 to 20 mA
(For LMC24-SR-T US only)

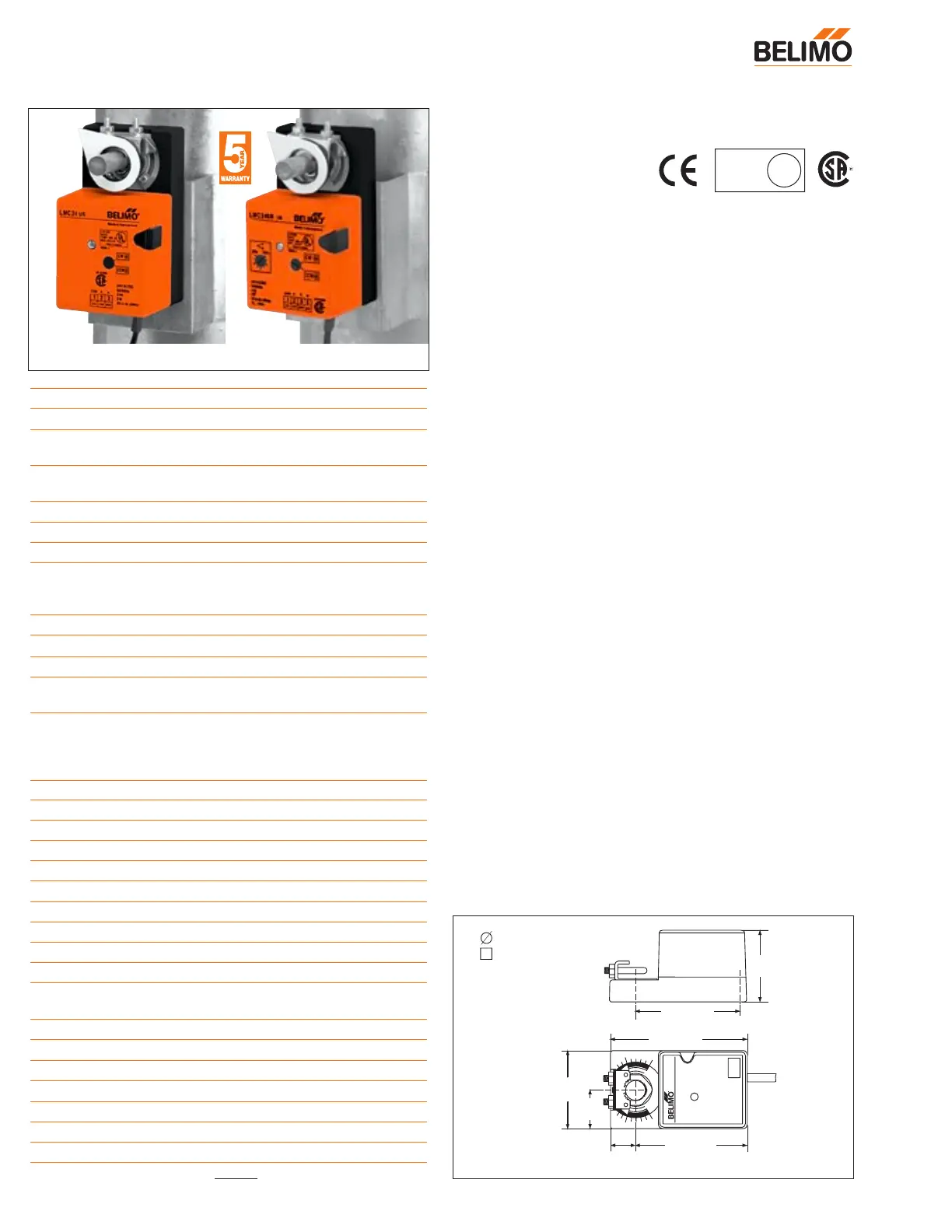

LMC24 (-SR) (-T) US
Non-spring return, direct coupled, 24 V, 25 to 35 sec. running time
Torque min. 18 in-lb, for control of damper surfaces up to 4.5 sq ft.
LMC24 US (on/off)
LMC24-SR US (proportional)
LMC24-SR-T US (proportional)
TEMP. IND &
REG. EQUIP.
Technical Data LMC24 (-SR) US…
Power supply 24 VAC ± 20% 50/60 Hz 24 VDC ± 10%
Power consumption LMC24 US 2.0 W (1 W)
LMC24-SR (-T) US 2.5 W (1 W)
Transformer sizing LMC24 US 3 VA
LMC24-SR (-T) US 4 VA
Electrical connection 3 ft, 18 GA, UL CL2P plenum cable
Control On-off (LMC24 US)
Overload protection Electronic throughout 0 to 95° rotation
Angle of rotation max 95°, adjust. with mechanical stops
(LMC24 US), electronically adjustable
20 to 100% on LMC24-SR US only
Torque min 18 in-lb [2 Nm]
Operating range Y
2 to 10 VDC, 4 to 20 mA (LMC24-SR (-T) US)
Input impedance
100 kΩ (0.1 mA), 500Ω (LMC24-SR (-T) US)
Feedback output ‘U’ 2 to 10 VDC (max. 0.7 mA )
(LMC24-SR-T US)
Direction of rotation reversible with switch CCW/CW
(LMC24-SR(-T) US)
CW with a decrease in voltage
CCW with a decrease in voltage
Position indication clip-on indicator
Running time 25 to 35 sec. for 0 to 18 in-lb
Manual override external push button
Humidity 5 to 95% RH, non-condensing
Ambient temperature -22°F to +122°F [-30°C to +50°C]
Storage temperature -40°F to +176°F [-40°C to +80°C]
Housing type NEMA type 2
Housing material rating UL94-5V
Noise level less than 35 dB (A)
Servicing maintenance free
Agency listings UL 873 listed, CSA C22.2
No.24 certified, CE
Quality standard ISO 9001
Weight 1.2 lbs [0.55 kg]
LMC24-SR-T US
Electrical connection Screw terminals (for 26 to 14 GA wire)
Angle of rotation max 95°, adjust. with mechanical stops
Housing NEMA type 1
Feedback No feedback with the LMC24-SR-T US
Note: LMC24(-SR) Actuators do not
have Brushless DC Motor
