Reset button is
located on the
bottom of the unit.
6. Power Jack
Connect the included 5V DC power supply to this jack.

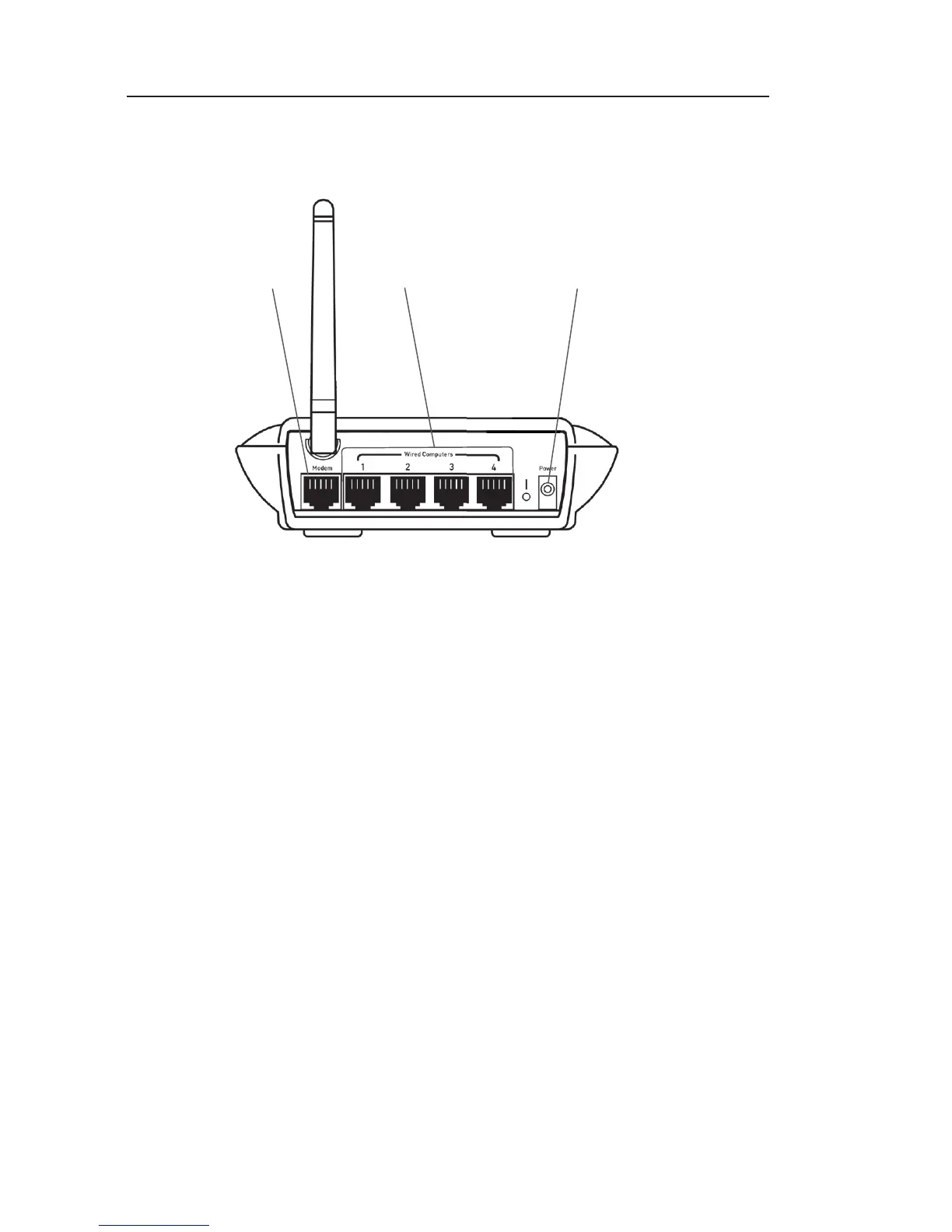

7. Connections to Computers (Wired Computer Ports) - BLUE
Connect your wired (non-wireless) computers to these ports. These
ports are RJ45, 10/100 auto-negotiation, auto-uplinking ports for
standard UTP category 5 or 6 Ethernet cable. The ports are labeled
1 through 4. These ports correspond to the numbered LEDs on the
front of the Router.
8. Connection to Modem (Modem Port) - GREEN
This port is for connection to your cable or DSL modem. Use the
cable that was provided with the modem to connect the modem
to this port. Use of a cable other than the cable supplied with the
cable modem may not work properly.
9. Reset Button
The “Reset” button is used in rare cases when the Router may
function improperly. Resetting the Router will restore the Router’s
normal operation while maintaining the programmed settings. You
can also restore the factory default settings by using the “Reset”
button. Use the restore option in instances where you may have
forgotten your custom password.
