3-5. REMOVE the Installation Template.
3-6. If mounting into concrete, INSERT four
TOGGLER
®
brand Wall Anchors (M17) into

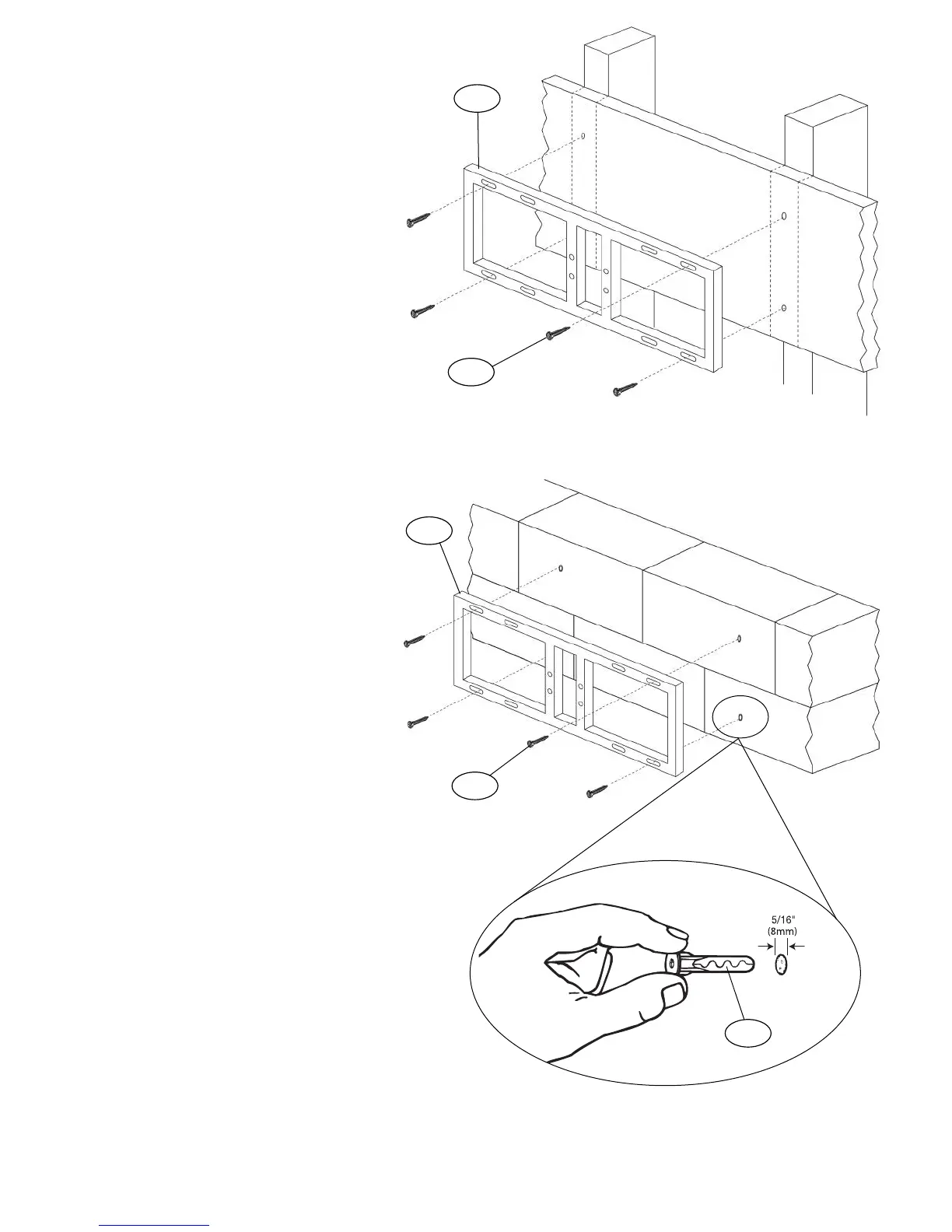

the drilled holes. [FIGURE 3-7]
3-7. PLACE the Wall Plate (M9) over the holes
and SCREW in the Lag Bolts (M18) about
half way. Use a LEVEL to make sure the
Wall Plate is level and make any necessary
adjustments. Once straight, TIGHTEN all of
the Lag Bolts completely (DO NOT OVER
TIGHTEN!)
Fig. 3-5
Fig. 3-6
Fig. 3-7
M18
M18
M17
M9
M9
