Bell'O TPC2133 - Option 2: Flat Panel TV Mounting System

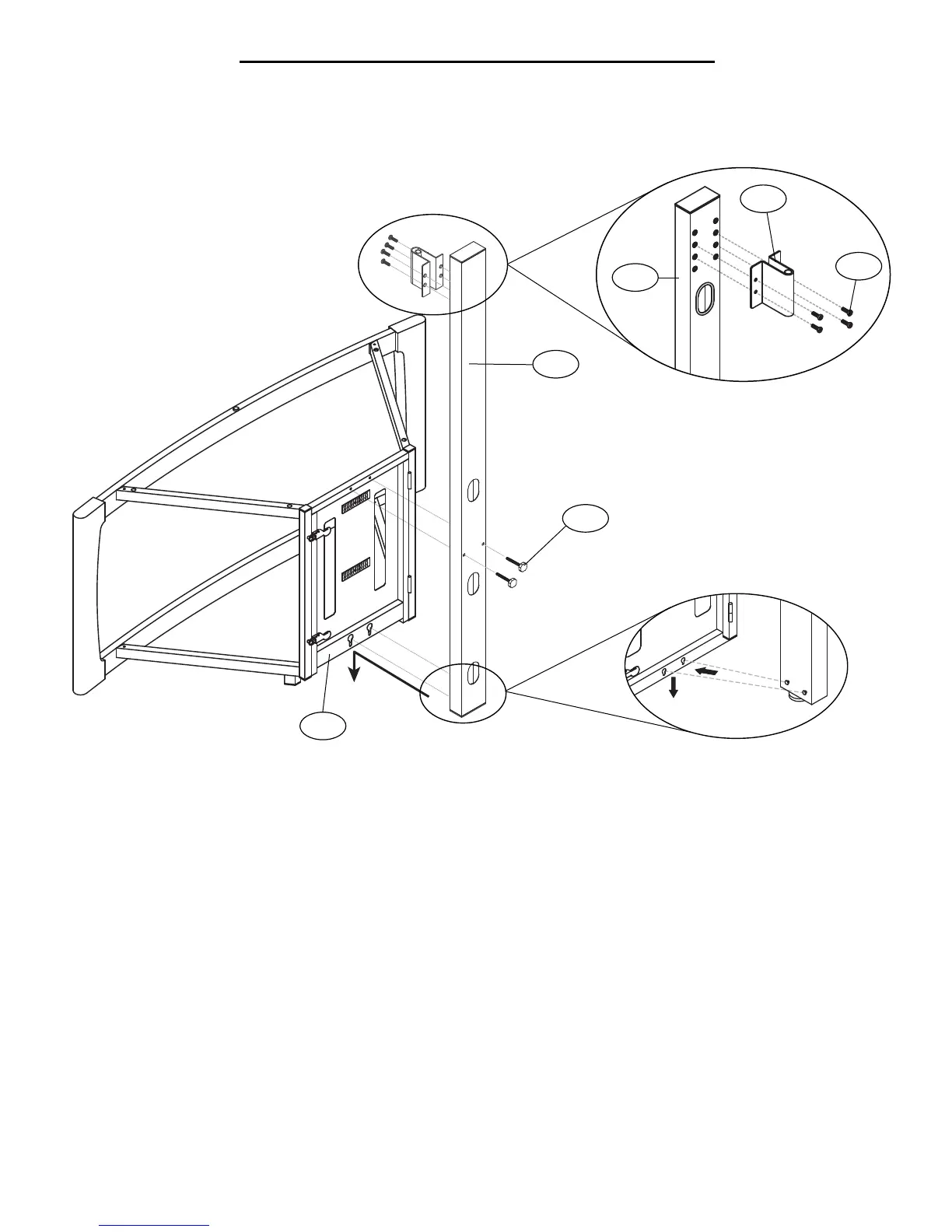

Fig. 2-1
(View from Front)
M10
M2
M1
M2
M3
M11
2-1. INSERT the bottom pegs of the Flat Panel Support Post (M2) into the holes at the BOTTOM rear of the CMS
®
(Cable Management
System) Panel (M1) and PUSH down. SECURE with two 65 mm Screw Knobs (M10) as shown in Fig. 2-1.
2-2. ATTACH the Mounting Bracket (M3) to the FRONT of the Flat Panel Support Post (M2) with four 15 mm Bolts (M11).
OPTION 2: FLAT PANEL TV MOUNTING SYSTEM
(View from Rear)
