Bell'O TPC2133 - Installing the Wall Mount in Wood

5/32"
(4 mm)
2.5"
(64 mm)
INSTALLING THE WALL MOUNT IN WOOD:

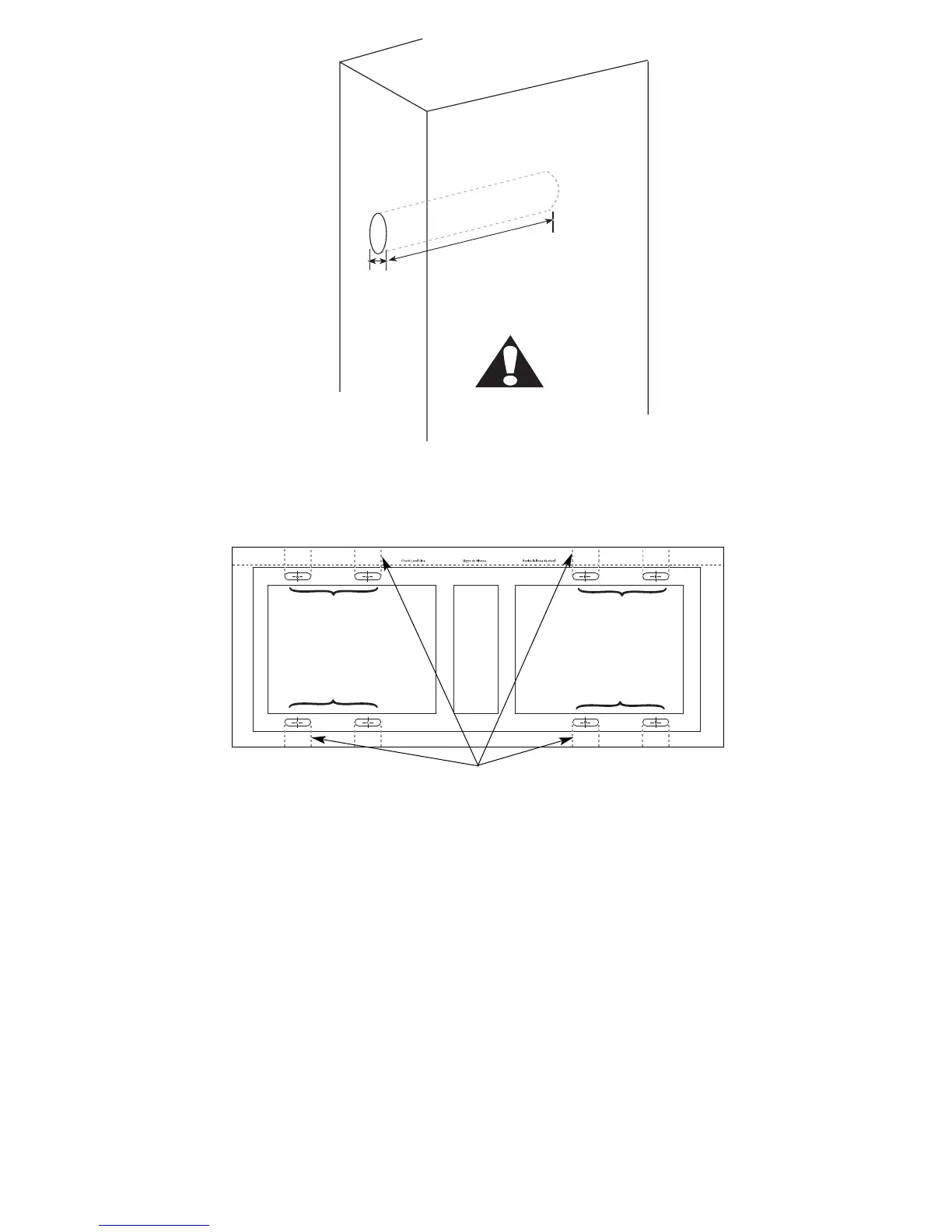

3-4. DRILL four holes 2.5" (64 mm) deep using a 5/32" (or 4 mm) size drill bit in the “A”, “B”, “C”, and “D” locations noted on the
Installation Template.
Fig. 3-3
A
C
B
D
USE LINES ON INSTALLATION TEMPLATE TO ALIGN TEMPLATE WITH STUD PENCIL MARkINGS.
