4-2. Carefully INSTALL the Top Glass Shelf (M8) as shown above. Make sure the silver posts under the Top Glass Shelf are properly inserted
into the holes in the Top Shelf Support Bar (M1). SECURE the Top Glass Shelf to the Support Bar using four 27 mm Turn Knobs (M16) as
shown. BE CAREFUL NOT TO OVERTIGHTEN.
4-3. SCREW two Middle Shelf Support Posts (M15) into the predrilled holes in sides of the Front Frame Assembly (M1). MAKE SURE the soft
rubber glass pads on the Posts are facing UP before attempting to install the Middle Shelf.
4-4. ATTACH five Soft Glass Pads (M14), evenly distributed, along the top edge of the Bottom Shelf Support Bar (M1). PLACE three on the
front portion, and two on the rear portion of the Bar.
4-5. Carefully INSTALL the Bottom Glass Shelf (M6) by lowering the Shelf down onto the Glass Pads (M14).
4-6. Carefully INSTALL the Middle Glass Shelf (M7) by sliding the Shelf back into the Shelf Support Brackets (M19) in the back of the Frame Assembly
(M1), and down onto the Shelf Support Posts (M15). Make sure the Middle Glass Shelf is properly inserted into the Shelf Support Brackets, and
tighten the small screw under the Shelf Bracket to secure the Shelf into place. BE CAREFUL NOT TO OVERTIGHTEN SCREWS.
NOTE (!) : There is an Adjustable Glass Pad located on the top front edge of the Front Frame (M1). TURN this Adjustable Glass Pad to adjust.
ALWAYS MAKE SURE THE STAND AND ALL SHELVES ARE LEVEL AND WELL SUPPORTED BEFORE ATTEMPTING TO PLACE ANY
COMPONENTS ON THEM.

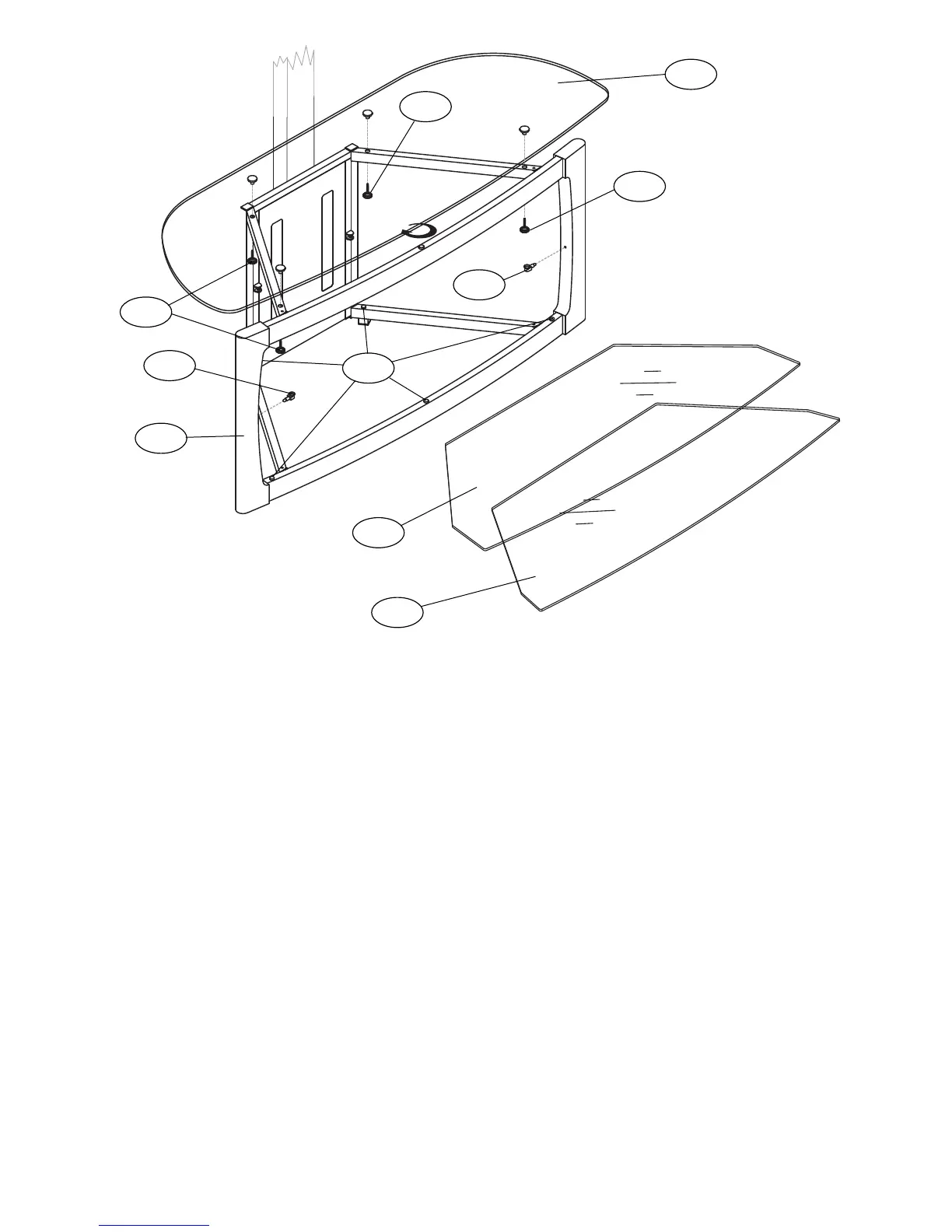

Fig. 4-2
M6
M7
M8
M16
M15
M1
M16
!
M15
M14
M16
