Bell System bellview - 1 Way Single Door System Wiring; Diagram 2 a: Cabling Layout

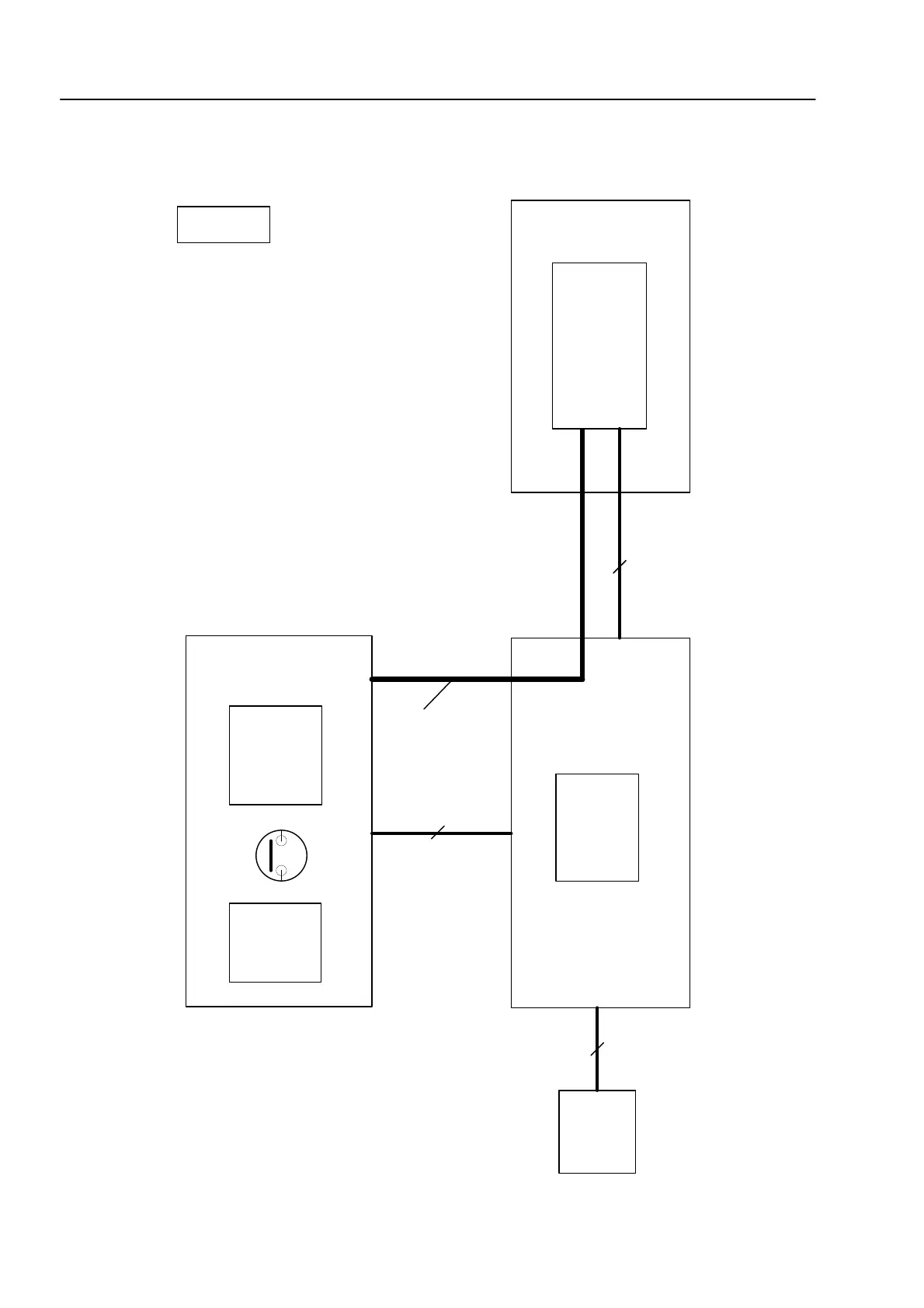

Diagram 2a : Cabling for a 1 way Single door system
Door Panel
Electrical
Cupboard
*1
Flat
Call
Button
Video
Phone
Lock
Release
M61
Speech
Unit
BV700
Camera
M540
Power
Supply
75R Co-ax
5
2
6 - 8 (see the
Bell View Video System
© 1997 Bell System (Telephones) Ltd.
previous page)
BV 1
Page 3 of 4
