HOW TO MEASURE WHEEL FACTOR
1
2
d
xx
c
Press the Right Button to adjust the value of the rst
digit of the Wheel Factor. Once you have entered the
correct value, press the Left Button to conrm the value
and advance to the next digit. Repeat for all four digits.
Press the Left Button to advance to KM/MILE selection.
KM/MILES SELECTION: After wheel size has been input,
the Km/Miles units for distance and speed will ash.
Press the RIGHT button to choose between Kilometer
(KM) and Mile (M), press the LEFT button to conrm.
Press and hold LEFT and RIGHT buttons for
4 seconds to access wheel size input mode.
Note all information in computer will be erased.
The digits on the bottom row will ash. The
value you need to enter into the computer is
the Wheel Factor. Wheel
Factor is the circumference of the wheel in
mm. To obtain Wheel Factor:
1) Fast (and not so accurate) Method — use
chart provided.
2) Most accurate method:

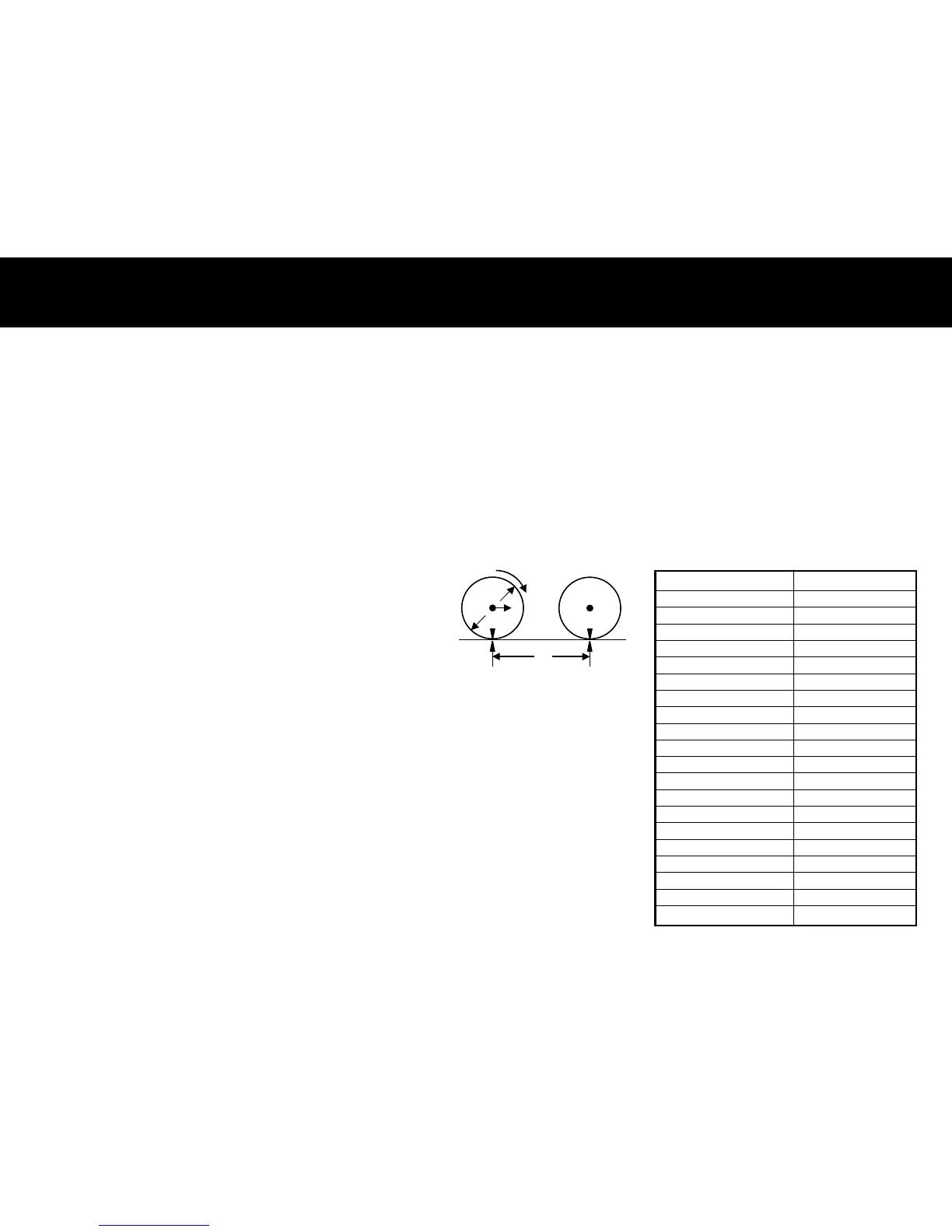

a) See gure 8.
b) Inate your tires to proper pressure
c) Put a mark on the outside circumference
of your front wheel (use masking tape)
d) Put a mark on the oor.
e) Put the mark on the wheel on the mark on
the oor.
f) Rotate the wheel one full revolution until
the mark on the wheel is on the oor
again. Mark this spot on the oor.
g) Measure the distance between the marks
on the oor in mm. This is your wheel
factor (i.e. your wheel circumference).
Fig.8
distance in millimeter
per one turn
Wheel Factor C
1913
1953
2005
2010
2023
2050
2055
2068
2170
2070
2086
2096
2105
2136
2170
2145
2155
2161
2288
2326
Wheel Diameter D
26 x 1.0
26 x 1.25
26 x 1.4
26 x 1.5
26 x 1.75
26 x 1.95
26 x 2.0
26 x 2.1
26 x 2.3
700 x 18
700 x 20
700 x 23
700 x 25
700 x 28
700 x 30
27 x 1"
27 x 1 1/8"
27 x 1 1/4"
29 x 2.1
29 x 2.3
