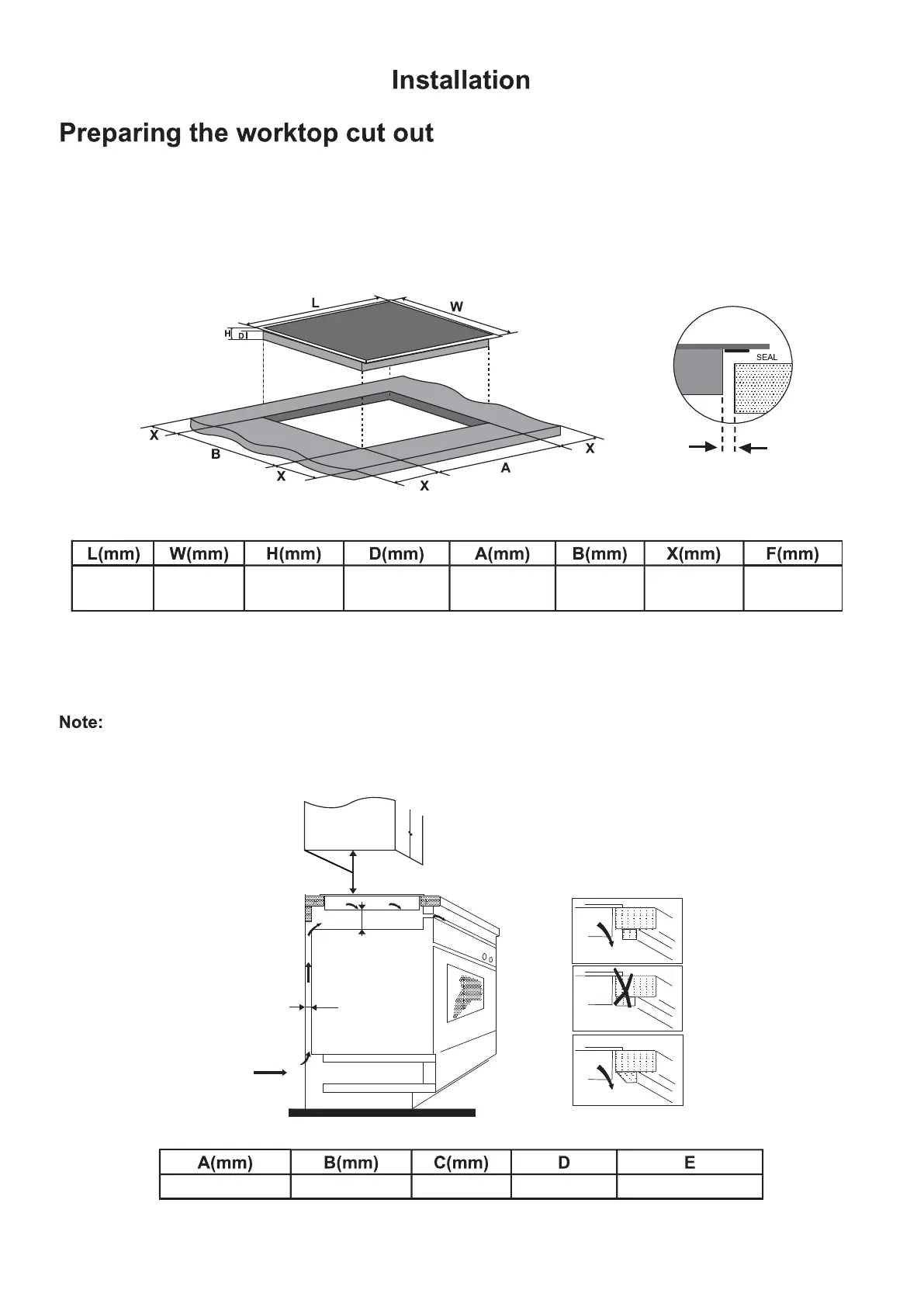

Cut out the work surface according to the sizes shown in the drawing.
For the purpose of installation and use, a minimum of 5cm space shall be preserved around the hole.
Be sure the thickness of the work surface is at least 30mm. Please select heat-resistant work surface
material to avoid larger deformation caused by the heat radiation from the hotplate.
Make sure that the hob is well-ventilated, and that the air inlet and outlet underneath the hob are not
blocked. Ensure that the hob has not been damaged in any way. Do not install a damaged appliance.
The safety distance between the hotplate and the cupboard above the hotplate should be at least
760mm.
760 50 mini 20 mini Air intake Air exit 5mm
Mini.3mm
F
770 520 55 51
751+3
-0
496+3
-0
50 mini 3 mini
A
B
E
C
D
