12

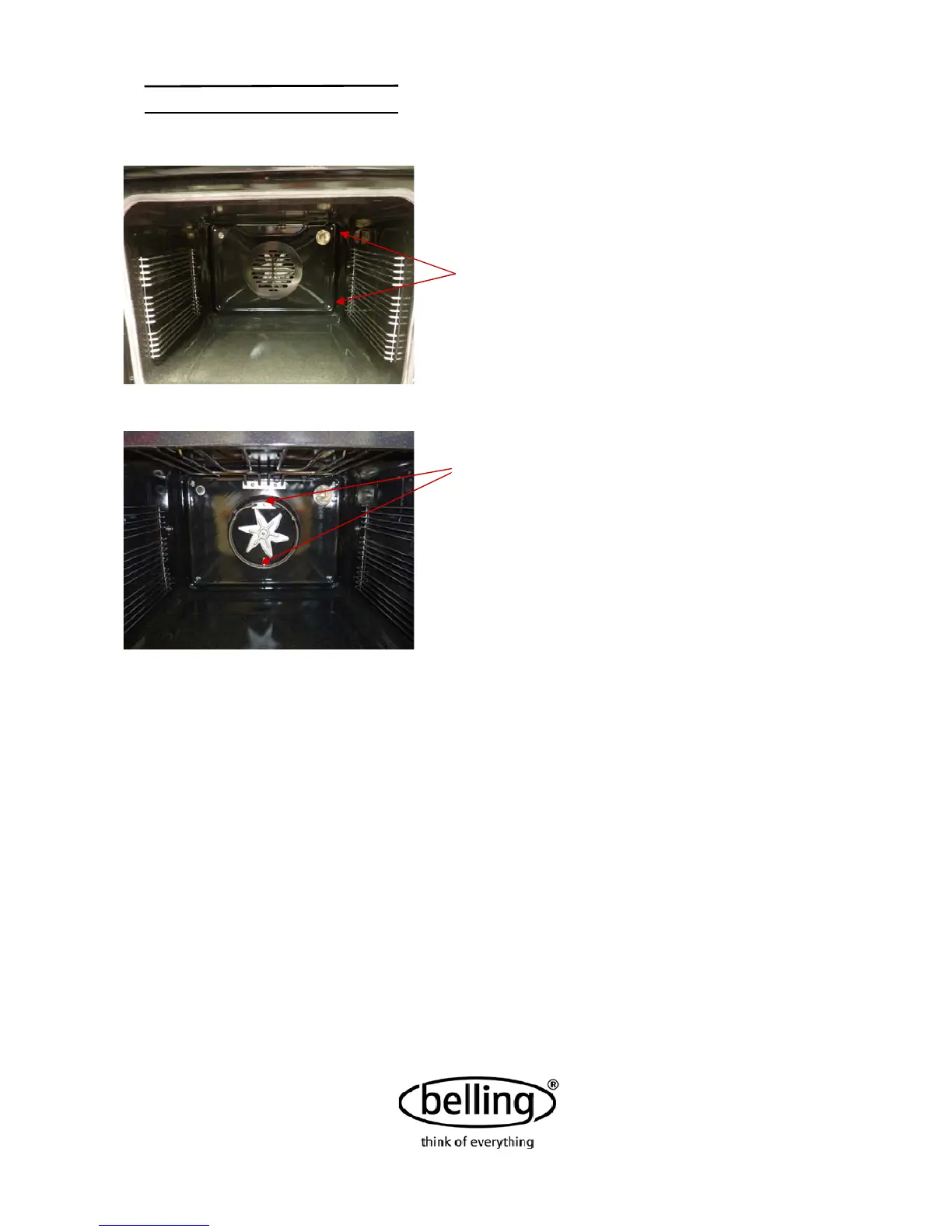

G) MAIN OVEN ELEMENT
FOLLOW STEP 6 AND REMOVE THE
REAR SERVICE PANEL
REMOVE 4 X REAR FAN COVER
SECURING SCREWS AND REMOVE
FAN COVER
DISCONNECT WIRING
REMOVE THE 2 ELEMENT SECURING
SCREWS AND PULL ELEMENT
FORWARD INTO THE CAVITY
