13

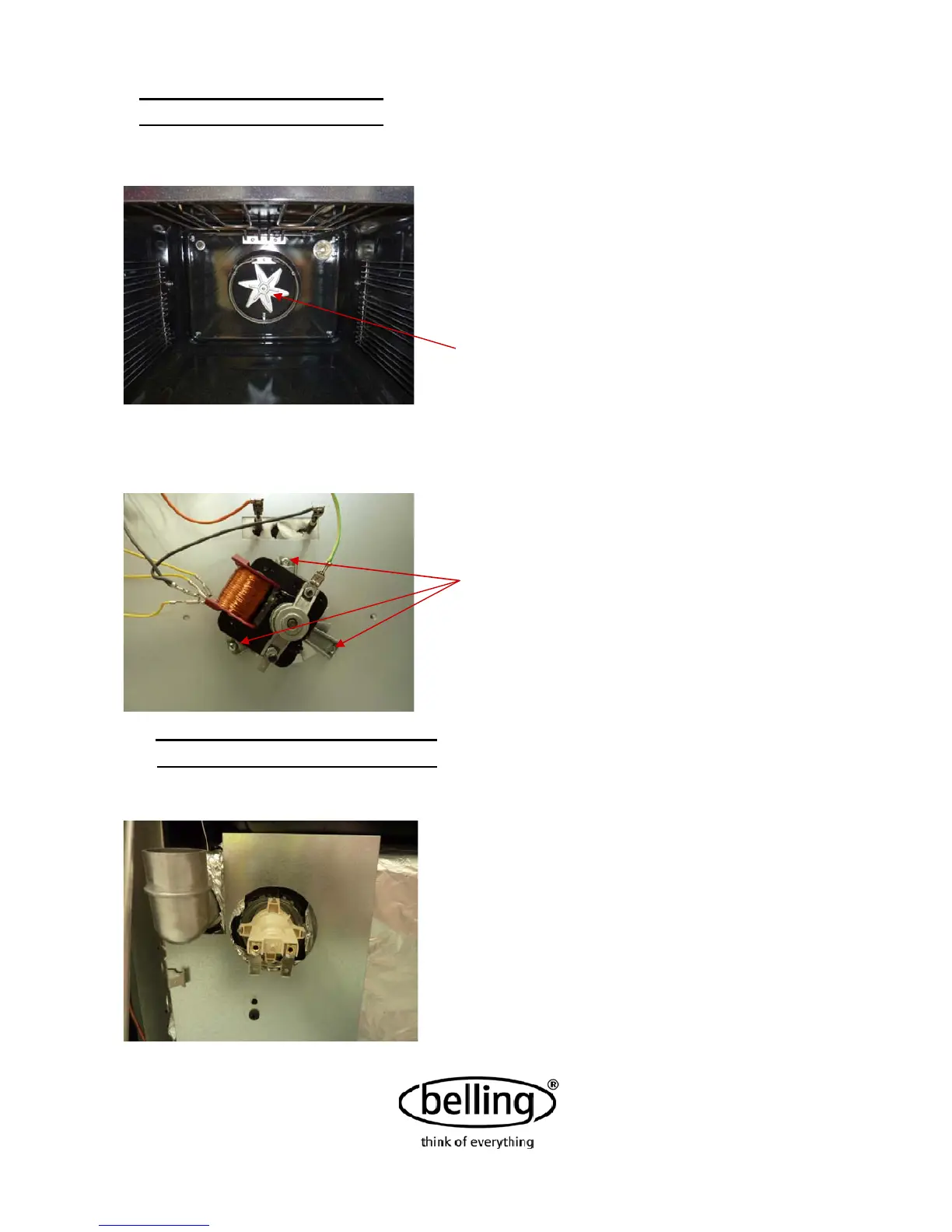

H) MAIN OVEN STIR FAN
FOLLOW STEP 6AND REMOVE THE
REAR SERVICE PANEL
REMOVE THE REAR FAN COVER AS
ON PREVIOUS PAGE
REMOVE THE FAN IMPELLOR
N.B L/H THREAD NEEDS TO TURNED
CLOCKWISE TO REMOVE
DISCONNECT WIRING FROM FAN
REMOVE 3 X STIR FAN SECURING
SCREWS AND REMOVE FAN FROM
THE REAR OF THE APPLIANCE
I) MAIN OVEN LIGHT FITTING
FOLLOW STEP 6 REMOVING REAR
SERVICE PANEL
REMOVE GLASS LAMP COVER BY
UNSCREWING
REMOVE THE EARTH LEAD
RELEASE 4 XCLIPS HOLDING LIGHT
FITTING IN PLACE
REMOVE BY PULLING LIGHT FITTING
FORWARD INTO CAVITY
