Belling platinum db3A - Installation Instructions; Gas Safety Regulations; Space for Fixing

5
F
OR COOKER TO SIT FLUSH WITH THE REAR WALL :-
G
AS PIPE MUST NOT BE MORE THAN 75mm ABOVE THE FLOOR (In either direction)
O
R PROJECT MORE THAN 40mm FROM THE REAR WALL
85
ELECTRICAL CONNECTION
75
MAX
T
Fig. 2
200
755
275
150
MAINS INLET ON APPLIANCE
250
150
1000
285
Installation Instructions
Gas Safety
This appliance is
TO BE INSTALLED ONLY BY AN AUTHORISED PERSON
in
(Installation & accordance with the manufacturers installation instructions,
Use) Regulations local gas fitting regulations, the AGA Gas Installation Code, the Australian Gas
Installation code AG601/AS5601 and any other relevant statutory regulations.
Particular attention should be given to the relevant requirements regarding
ventilation.
Failure to install the cooker correctly could invalidate the warranty liability claims
and could lead to prosecution.
Where this appliance is installed in marine craft or in caravans, it shall NOT
be used as a space heater.
Space for Fixing Your cooker is heavy, so be careful when moving or positioning it. Do not try to
move the cooker by pulling on the doors or handles or control panel. The Belling
db92 is designed to 'slot-in' between 600mm deep cabinets, spaced at least
915mm apart. It can also be used freestanding, with a cabinet to one side, in a
corner setting or with its back to a wall. However it must not be situated with
either side closer than 50mm to a combustible wall or cupboard that is higher
than the cooker.
The wall behind the cooker and 450mm above and across the width of the
cooker, should be of an incombustible material or easy clean surface such as
ceramic tiles. Please note, when positioning your cooker against a wall, ensure
there is sufficient clearance for the screw heads on the back panel.
This appliance is designed not to project in front of standard 600mm worktops
(excluding handles). To achieve the best fit the cooker must be pushed against the

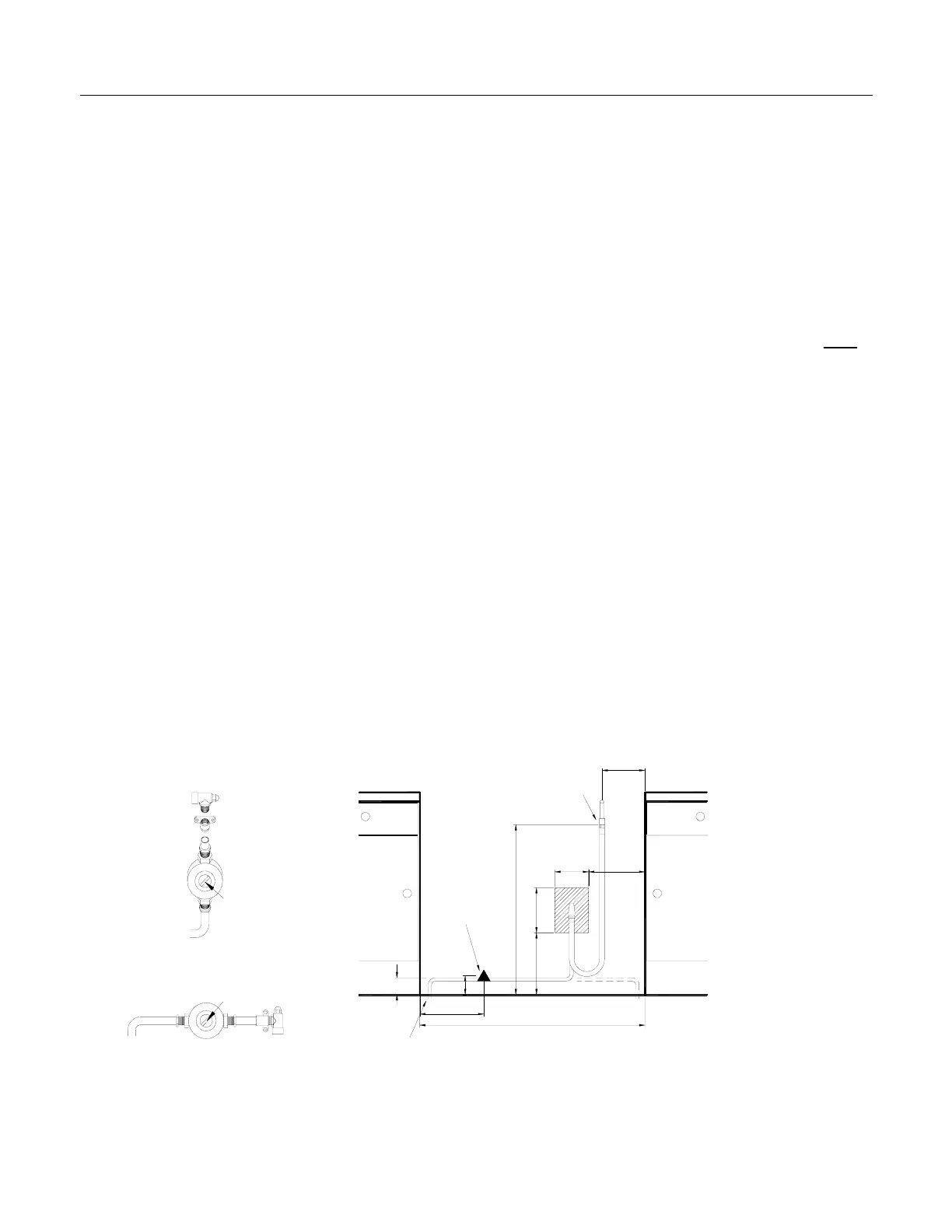

wall. If the wall mounted adapter back-plate (Fig.1) is to be fitted behind the
appliance then the suitable area for this fitting is shown as the area in (Fig.2).
Fig. 1
NOTE: The adaptor backplate requires chasing into the wall if it protrudes more than 40mm. This is to
allow the cooker to be pushed back to the wall.
VERTICAL PIPEWORK OPTION
HORIZONTAL PIPEWORK OPTION
(Natural Gas Only
GAS REGULATOR
(Natural Gas Only
GAS REGULATOR
