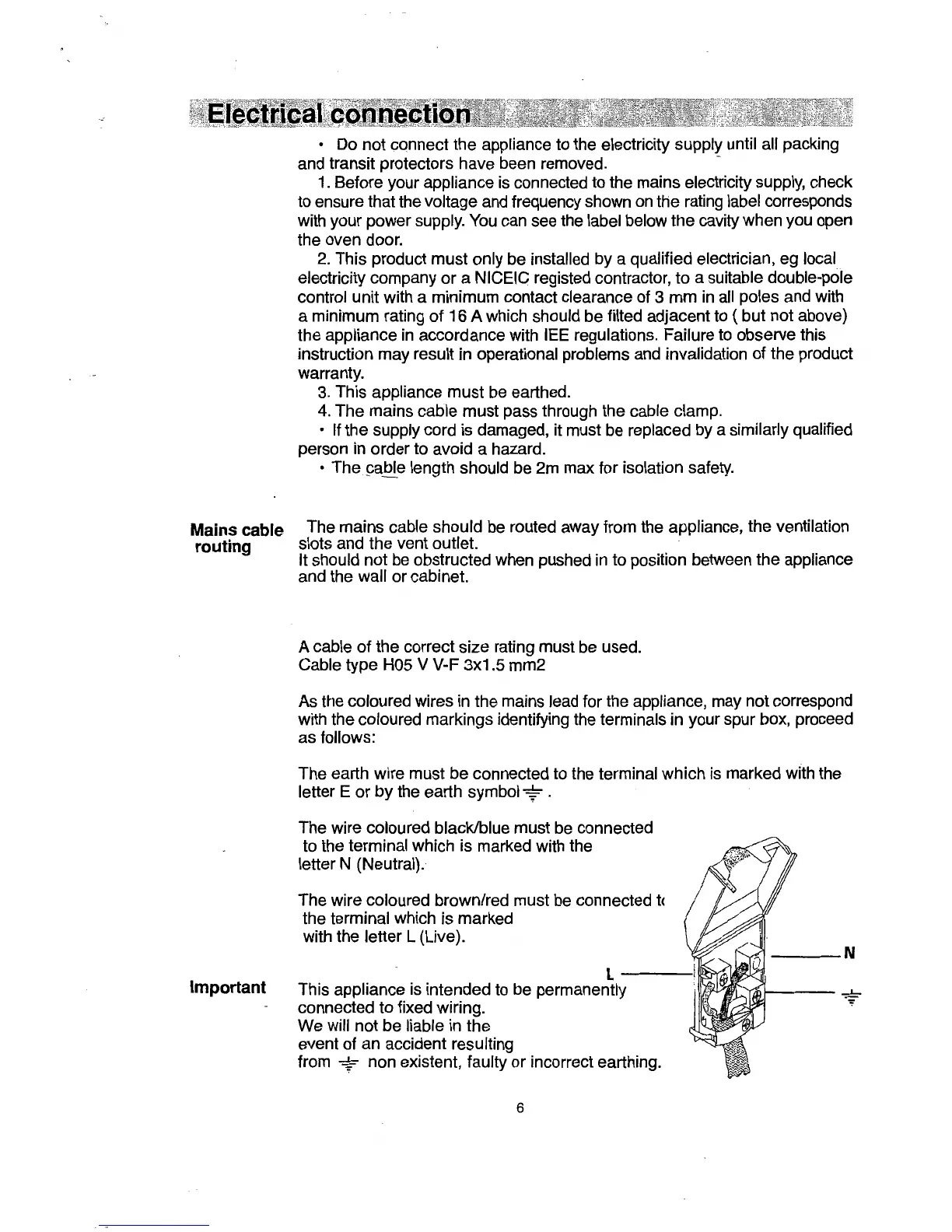

Mains cable
routing
Important
• Do not connect the appliance to the electricity supply until all packing
and transit protectors have been removed.
1.
Before your appliance is connected to the mains electricity supply, check
to ensure that the voltage and frequency shown
on
the rating label corresponds
with your power supply.
You
can see the label below the cavity when you open
the oven door.
2. This product must only be installed by a qualified electrician, eg local
electricity company
or
a NICEIC registed contractor, to a suitable double-pole
control unit with a minimum contact clearance of 3
mm
in
all poles and with
a minimum rating
of
16 A which should be filted adjacent to ( but not above)
the appliance in accordance with lEE regulations. Failure to observe this
instruction may result in operational problems and invalidation
of
the product
warranty.
3.
This appliance must
be
earthed.
4.
The mains cable must pass through the cable clamp.
• If the supply cord is damaged, it must be replaced by a similarly qualified
person in order to avoid a hazard.
• The pable length should be 2m max for isolation safety.
The mains cable should be routed away from the appliance, the ventilation
slots and the vent outlet.
It should not
be
obstructed when pushed
in
to position between the appliance
and the wall or cabinet.
A cable
of
the correct size rating must be used.
Cable type
HOS
V V-F 3x1
.5
mm2
As the coloured wires in the mains lead for the appliance, may not correspond
with the coloured markings identifying the terminals in your spur box, proceed
as follows:
The earth wire must be connected to the terminal which
is
marked with the
letter E
or
by
the earth symbol .
The wire coloured black/blue must
be
connected
to the terminal which is marked with the
letter N (Neutral).
The wire coloured brown/red must
be
connected
t<
the terminal which is marked
with the letter L (Live).
L----
This appliance
is
intended to be permanently
connected to fixed wiring.
We will not be liable in the
event of an accident resulting
from
non existent, faulty or incorrect earthing.
6
----N
