Beluk BLR-CX-R User Manual

Reference Manual
BLR-CX-R / BLR-CX-T
Rev. 07
2018-07
5

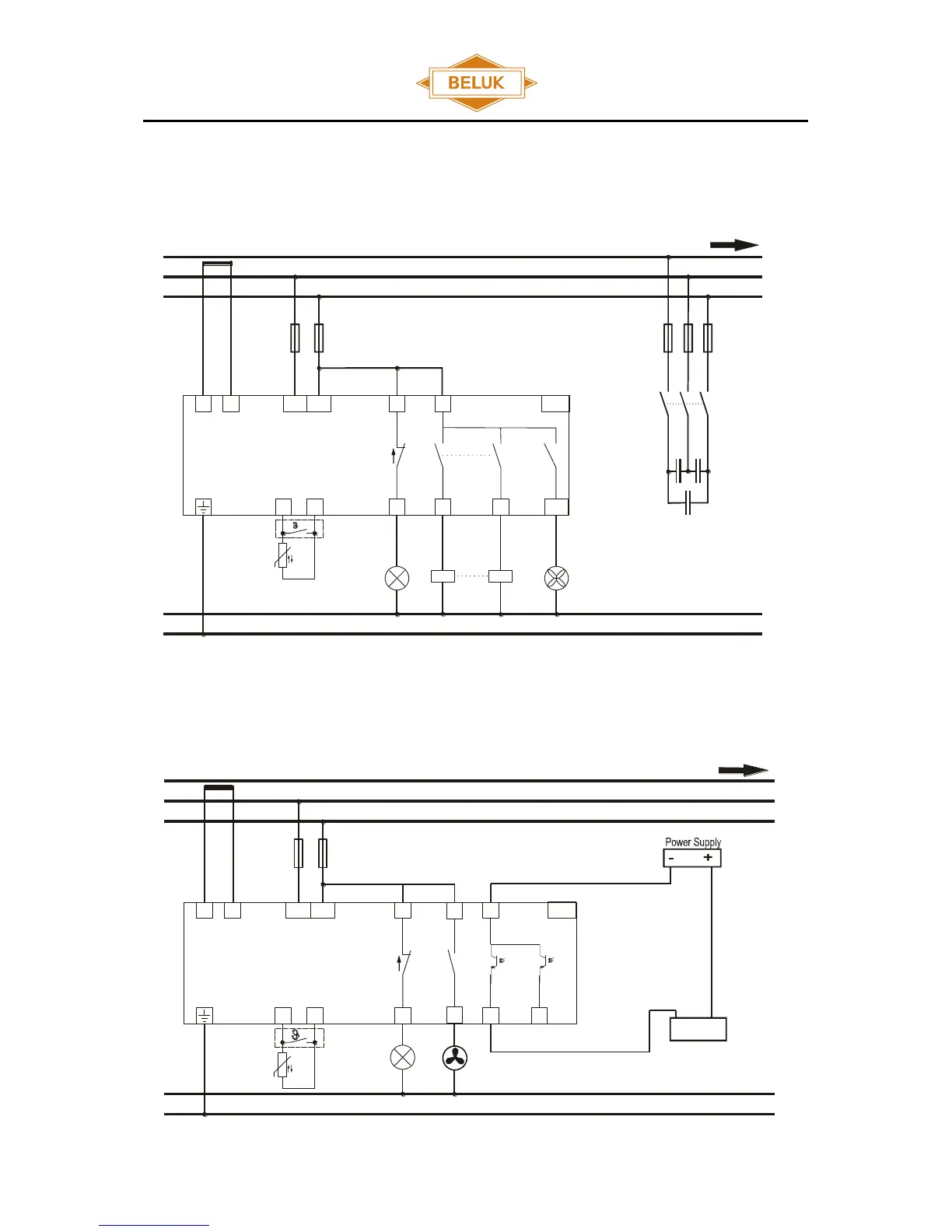

1.1 Wiring diagram
BLR-CX-R
BLR-CX-T
T
K L Um1 Um2 AM
MS 1 14 1-14T1 T2
Controll exits can
be parametered
for fan controll
K1 K14
K1-K14
L1
L2
L3
N
PE
BLR-CX
TTL
X/1A or X/5A
15mA - 6A 90V - 550V
power-input
utility
Interface
load
external
temperature sensor
or temperature switch
(parallel use of sensor
and switch is possible)
signal:
in order
(life-contact)
up to 14
control exits
external
temperature sensor
or temperature switch
(parallel use of sensor
and switch is possible)
T
L
Um1 Um2
AM
MS 1 12T1 T2
BLR-CX
TTL
15mA - 6A 90V - 550V
+ -
Triggerinput
BEL-TSXX
K
L1
L2
L3
PE
N
L
LF
X/1A or X/5A
power-input
utility
power-input
utility
Interface
load
signal:
in order
(life-contact)
Fan control
up to 12
control exits
