LC8810 User Manual V1.0
10

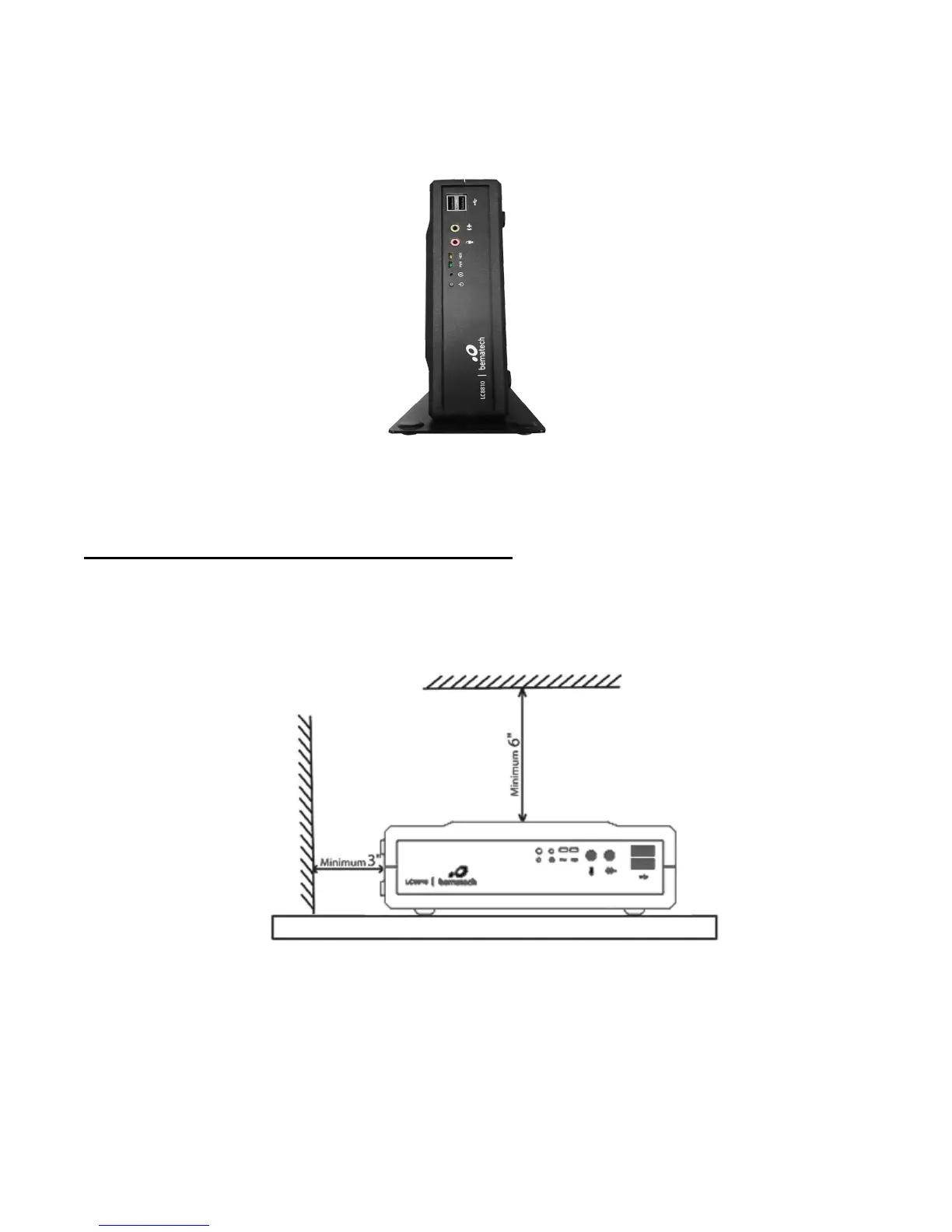

2. mount the LC8810 on the vertical stand and secure with two M3 screws from bottom
of the bracket.
Picture 4
Mount the LC8810 horizontally above counter
Allow at least 6 inches of space from the top of the unit and 3 inches from the sides to
allow proper ventilation. See the picture below:
Picture 5
