Benchmark Games Ticket Station - Page 10

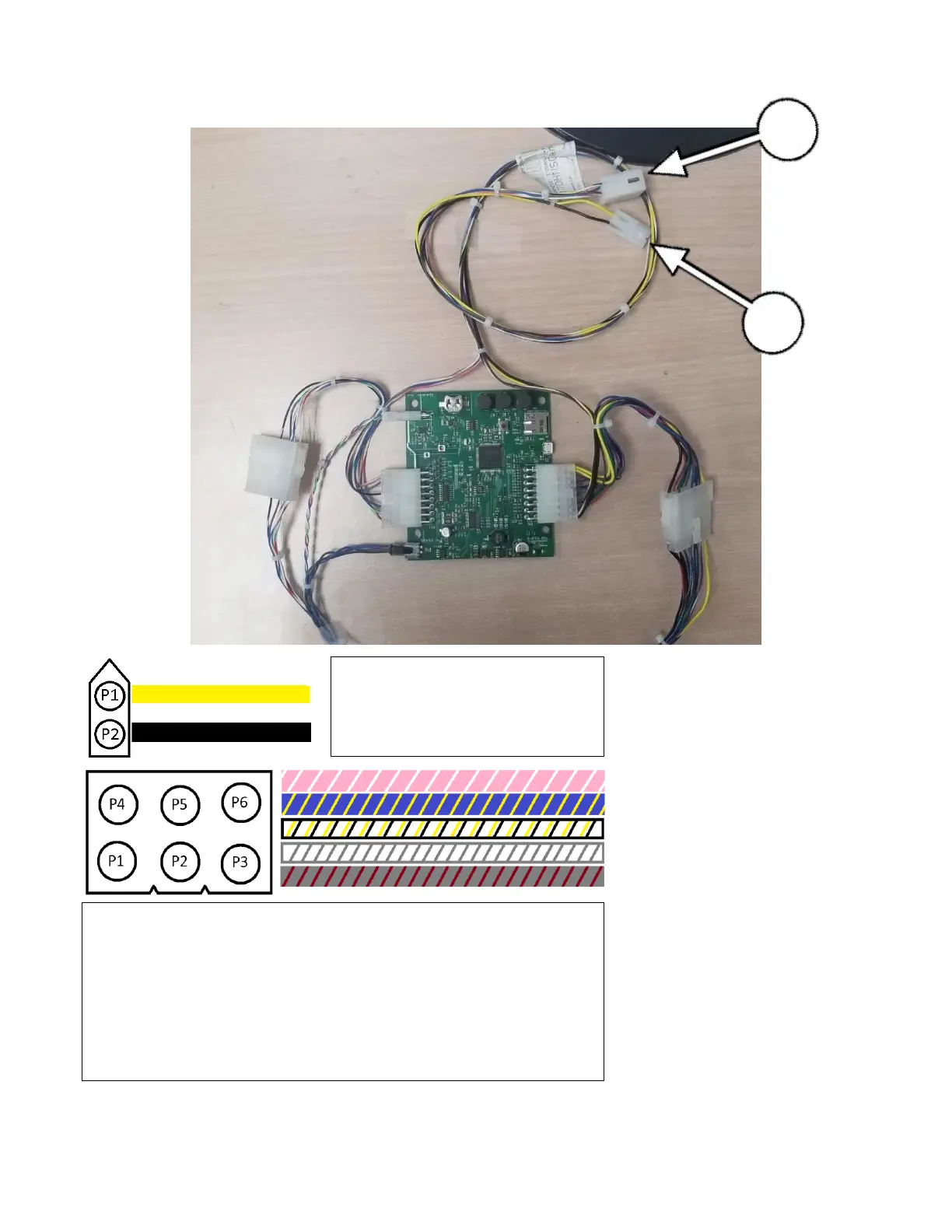

The last two plugs left are for your Card swipe system. The small Plug being Power(A) and the larger one your signals(B).
B
A
Figure A:
Pin 1 – Yellow: 12V
Pin 2 – Black: Ground
Figure B:
Pin 1 – Pink/White: Clock Pulse
Pin 2 – Blue/Yellow: Busy Fault Line
Pin 3 – White/Yellow/Black: Transfer Tickets/ Complete Transaction
Pin 4 – White/Gray: Data
Pin 5 – Gray/Red: Enable
Pin 6 – Open (No wire)
