Adjusting the Barcode Sensor:
First you will need to get to the Barcode sensor. One is on the top Assembly, the other is in the lower Belt Assembly.
To get to the barcode sensor on the lower assembly, follow the next
few steps.

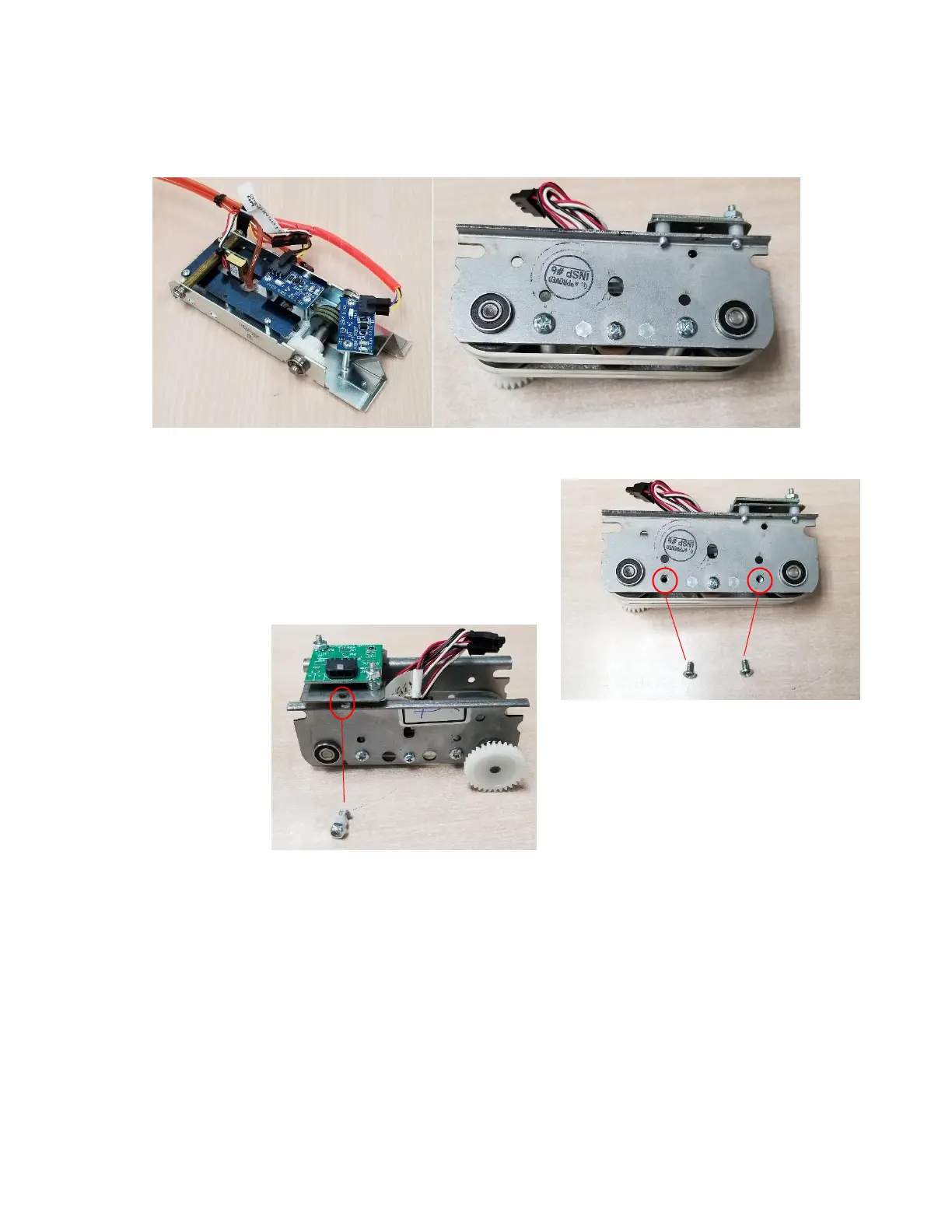

Remove the two screws from the side plate with the barcode attached
to it.
Then Remove the screw spacer and nut from the other side that holds
the receiver optic in place.
Once these are removed, we can separate the two side.
