Benchmark Games Ticket Station - Pin Out Sheets

Pin Out Sheets:

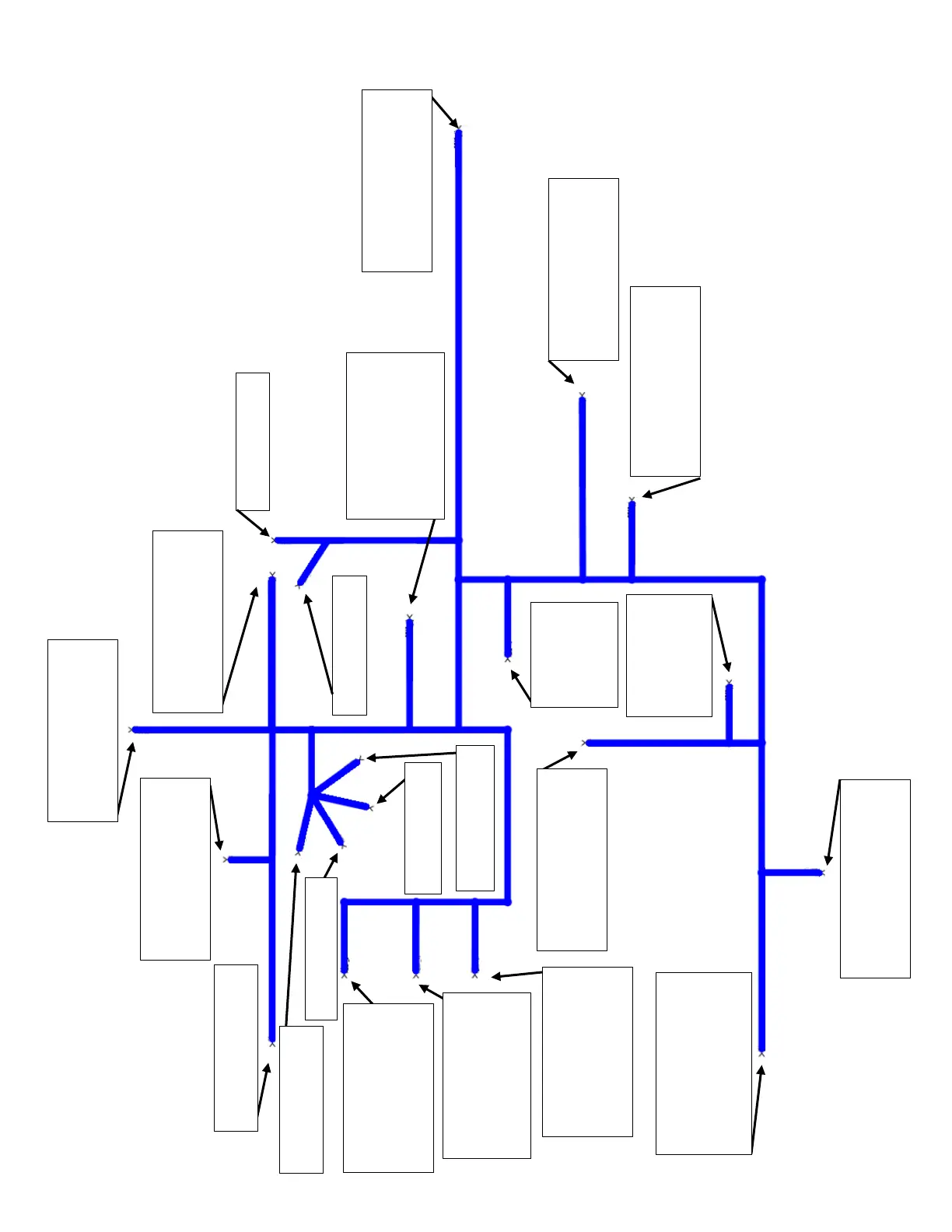

170HNS001: Door Harness
C15- Ticket Scanner 3/4
Micro F
C18- Ticket Count Opto
Micro F
C20- Speaker (+)
C21- Speaker (
-)
C16- Opto Transmitter
Micro F
C7- 5 Digit Display
Micro
F
C2- Main Controller
Board Input
Mini F
C14- Ticket
Scanner 1/2
Micro F
C13- Hall Effect sensor
Micro F
C3- Main Controller
Board Output
Mini F
C4- Main Controller
RS485
Micro F
C19- Ticket Insert
Optic (Motor)
Micro F
C22- Main Control
ler
Board (P3)
Mini F
C10- Button LED
C11- Button Gnd
C12- Button Switch
C9- Button Power
C5- OLED Display
Mini F
C6- Printer Power
C8- Stepper Motor
Micro F
C1- Door to Main HNS
Mini F
C17- Opto
Transmitter
Micro F
