11
KICKBACK SAFETY DEVICES ON THIS CHAINSAW CHAIN
BRAKE
The chainsaw comes equipped with a chain brake, which stops both the motor and
the motion of the chain when kickback occurs. The chain brake can be activated by
the forward motion of the chain-kickback brake handle as the saw rotates backward
during kickback; it can also be activated by the inertial forces generated during
rapid pushback.
WARNING: Never modify or attempt to disable the chain brake.
Make sure that the chain brake is working properly before using the chainsaw.
The chainkick back brake handle should move back and forth easily. To test the
operation of the chain brake perform the following steps (Fig. 1).

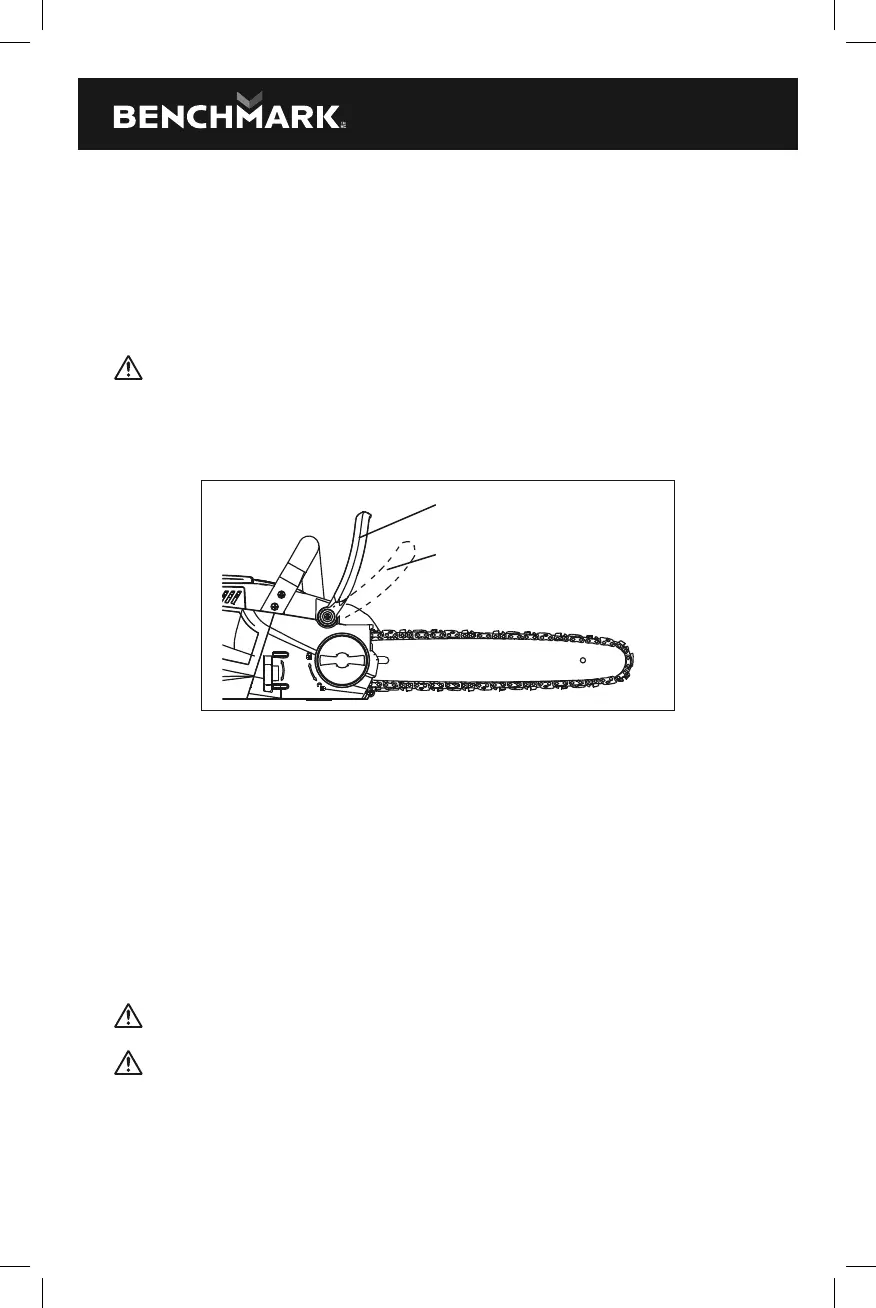

FIG. 1
• Place the chainsaw on a flat bare surface and make sure no objects or
obstructions that could come in contact with the bar and chain are in the
immediate vicinity.
• Disengage the chain brake by pulling the chain-kickback brake handle
towards the front handle.
• Start the chainsaw.
• Push the chain-kickback brake handle towards the front of the saw. A properly
functioning hand brake will stop the movement of the chain immediately. If the
chain brake is not working properly, do not use the chainsaw until it has been
repaired by a qualified service technician.
WARNING: Confirm that the chain brake works properly before each use.
WARNING: If the chain brake is clogged with wood chips, the function of
the chain brake may deteriorate. Always keep the device clean.
Chain kickback brake handle
in operationg position
Chain kickback brake handle
in brake position
