Benchmark 5240-050 - Technical Data and Functions; Chainsaw Component Identification

15
TECHNICAL DATA
60V CORDLESS CHAIN SAW
Nominal voltage of product with battery 60V
Chain Speed 33 ft./s
Cutting Length 16 in.(400 mm)
Chain Type Recommended Oregon type 90PX056X
Guide Bar Type Recommended Oregon type
164MLEA041
Weight 13.2 lbs
Battery Pack Model 5350-018
Battery Capacity 60 V DC, 2.5 Ah
Battery Charger Model 5350-020
Input 100–240 V~, 50/60 Hz, 150 W
Output 63 V d.c., 2.5 A

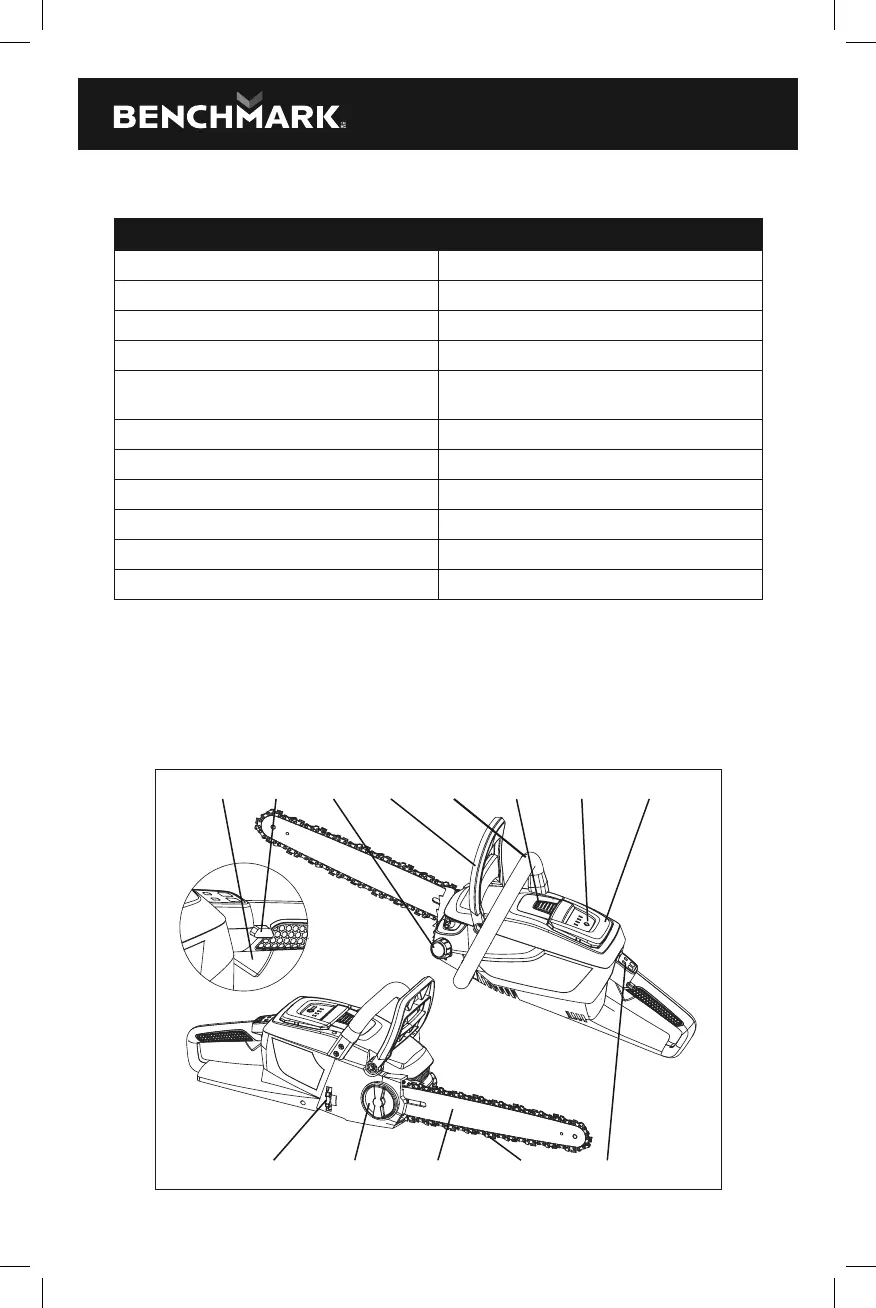

FUNCTIONS
1. Front Guard/Chain
Brake
2. Guide Bar
3. Saw Chain
4. Oil Tank Cap
5. Indicator Panel
6. Chain Tension Knob
7. Lock Knob
8. Lock-Off Button
9. Main Switch
10. Battery Pack
11. Front Handle
12. Power Indicator Button
13. Battery Releasing/
Locking Button
9 8 4 1 11 13 12 10
6 7 2 3 5
