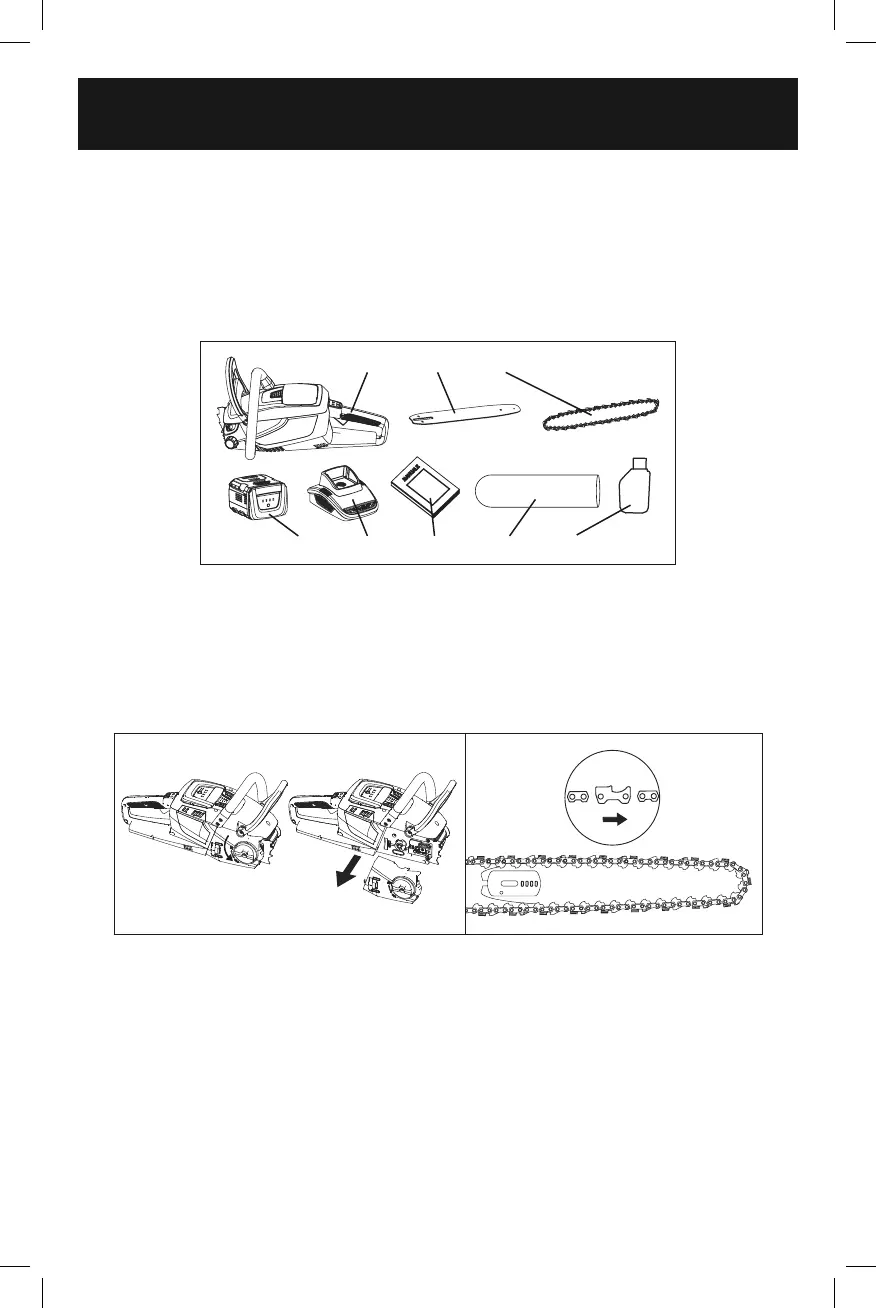

DELIVERY PARTS
Remove the machine from its packaging carefully and make sure that all of the
following parts are present:
1. Chainsaw x 1
2. Guide Bar x 1
3. Saw Chain x 1
4. Battery Pack x 1
5. Charger x 1
6. Manual x 1
7. Guide Bar Cover x 1
8. Bar and Chain
Lubricant Oil x 1
1 2 3
4 5 6 7 8
INSTALLATION
Install the guide bar and saw chain
1. Position the chainsaw power head on its side with the side cover facing upwards.
2. Turn the side cover knob counter-clockwise to remove the side cover and then
loosen the chain tensioning knob as much as possible (Fig.10).
FIG. 10 FIG. 11
3. Lay the new saw chain in a loop on a flat surface and straighten any kinks.
4. Place the chain drive links into the guide bar groove and make the chain a loop
at the back of the guide bar (Fig.11).
5. Hold the chain in position on the guide bar and place the loop around the
sprocket of the power head (Fig. 12).
6. Slide the guide bar slot over the alignment flanges until the tension adjusting
pin is inserted in the lower hole in the tail of the bar.
52 40-050
60V 16-INCH CORDLESS CHAINSAW
