Setup

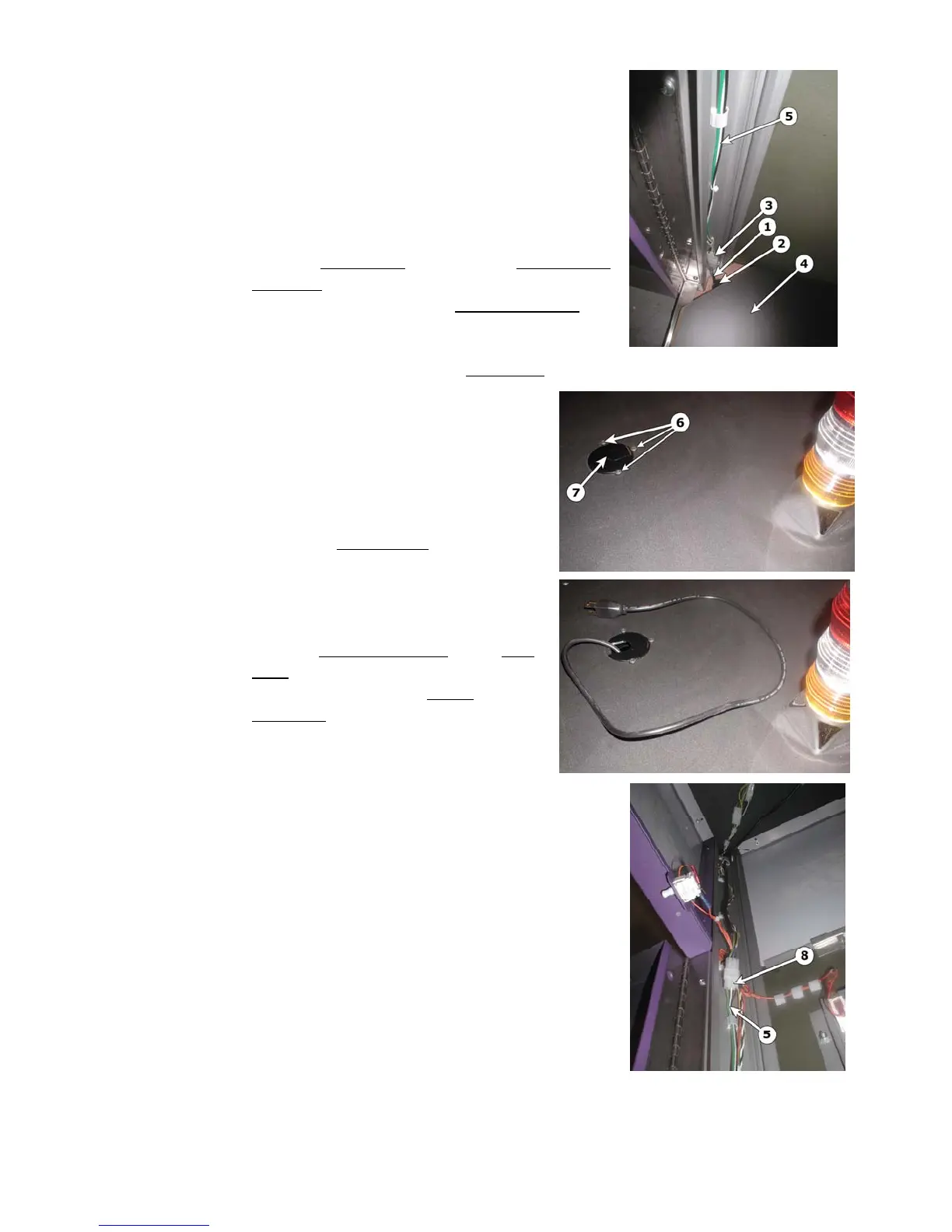

1. Install Power Cord
The power cord can be run down and out the bottom of
the machine or up and out the top of the machine.
• To run the cord out the bottom of the machine:
1. Feed the power cord1 through the lower power
cord hole2 in the bottom of the machine.
2. Connect power cord to the power connector3 at
the main harness.
-Be sure to secure the wires tight along the
inside corner away from the scale floor4 View inside looking down
3. Plug power cord into a power
receptacle. If a floor receptacle is
used, position machine over the top of
it.
• To run the cord up and out the top of the
machine:
1. Detach the power wires5 from the
wire clips on the inside left corner of
machine
2. Run power wires up inside corner
attaching into wire clips
3. Remove wire plate screws6 and wire
plate7
4. Connect power cord to power
connector8 on the main harness.
5. Run the power cord up and out the top
of the machine securing with wire
clips.
6. Replace wire plate and reattach with screws.
2. Install ticket bags (see “Changing Ticket Bags”
section of this manual).
3. Program barcode, machine number, etc. as desired
(see “Programming section of this manual).
View inside looking up
View UI
