Rev. 2, June, 1982
IM0007-4
KING
KY 196/196E/KY 197/197E
VHF COMMUNICATIONS TRANSCEIVER
INSillAl
;~
,
CONDUCTOR CRIMP
SOLDERLESS CONTACT TERMINAL
KPN 030-1107-30
-
HAND EJECTOR
KPN 047-5099-01
MOLEX PN HT-1884

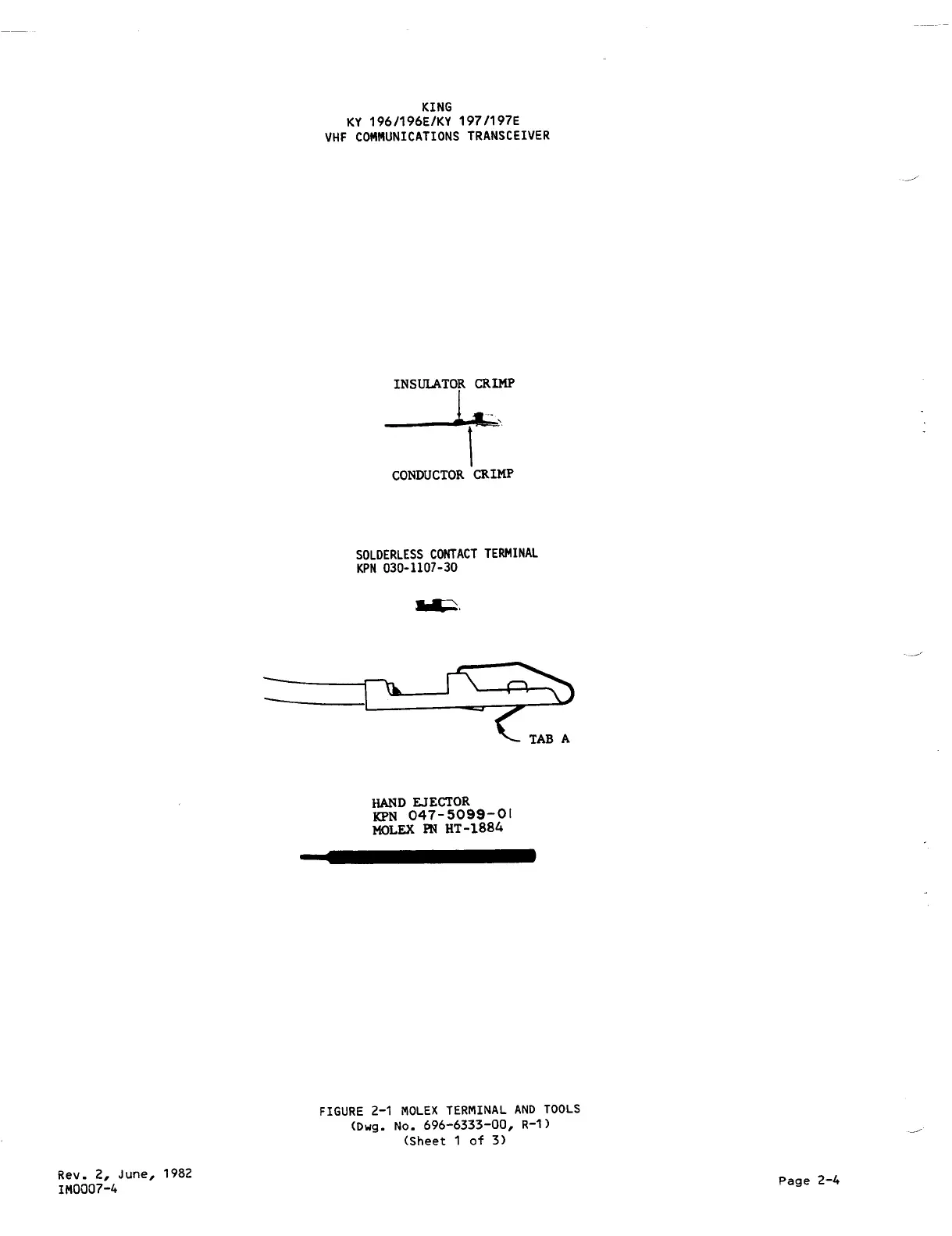

FIGURE 2-1 MOLEX TERMINAL AND TOOLS
(Dwg. No. 696-6333-00, R-1)
(Sheet 1 of 3)
Page 2-4
