8
End Cover
Cooling Plate
Cap
Screws
(x2)
Crankcase
Alignment
Pins (x2)
Valve Plate
Assembly
ST-4
Safety Valve
Cylinder Head
Crankcase
Washer
3
4
7
8
10
11
1
2
5
14
15
13
12
6
9

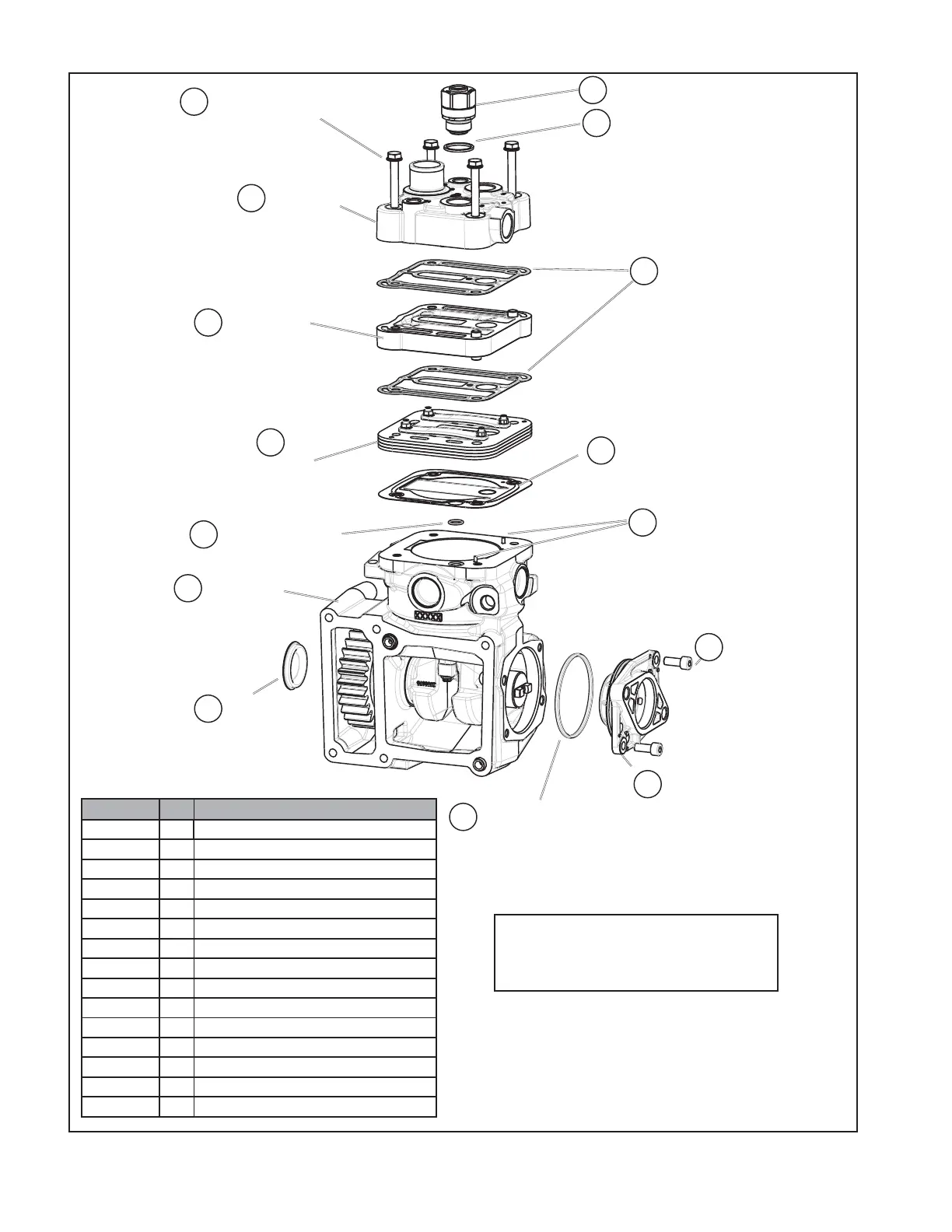

FIGURE 8 – BENDIX
®
60cc SINGLE CYLINDER COMPRESSOR EXPLODED VIEW
Head Gasket
(2)
Head Cap Screws (4)
(include washers)
Kit Notes:
Kit 1: Discharge Safety Valve Kit (K026809)
Kit 2: Compressor Seal Kit (Major) (K026807)
Kit 3: Compressor Seal Kit (Minor) (K051352)
End Cover O-ring
Inlet Reed/Valve Gasket
Crankcase O-ring
Cover
Item Qty. Description
1 4 Head Cap Screws - (Kit 2)
2 1 ST-4
Safety Valve - (Kit 1)
3 1 Washer - (Kit 1)
4 2 Head Gaskets - (Kit 2)
5 1 Inlet Reed Valve/Gasket - (Kit 2)
6 2 Crankcase Alignment Pins
7 2 Cap Screws
8 1 End Cover
9 1 End Cover O-Ring (Kit 2 & 3)
10 1 Cover (Kit 2 & 3)
11 1 Crankcase
12 1 Crankcase O-ring (Kit 2)
13 1 Valve Plate Assembly
14 1 Cooling Plate
15 1 Cylinder Head
