BENDIX EC-30 ABS-ATC CONTROLLER User Manual

20
SECTION A - EC-30
™

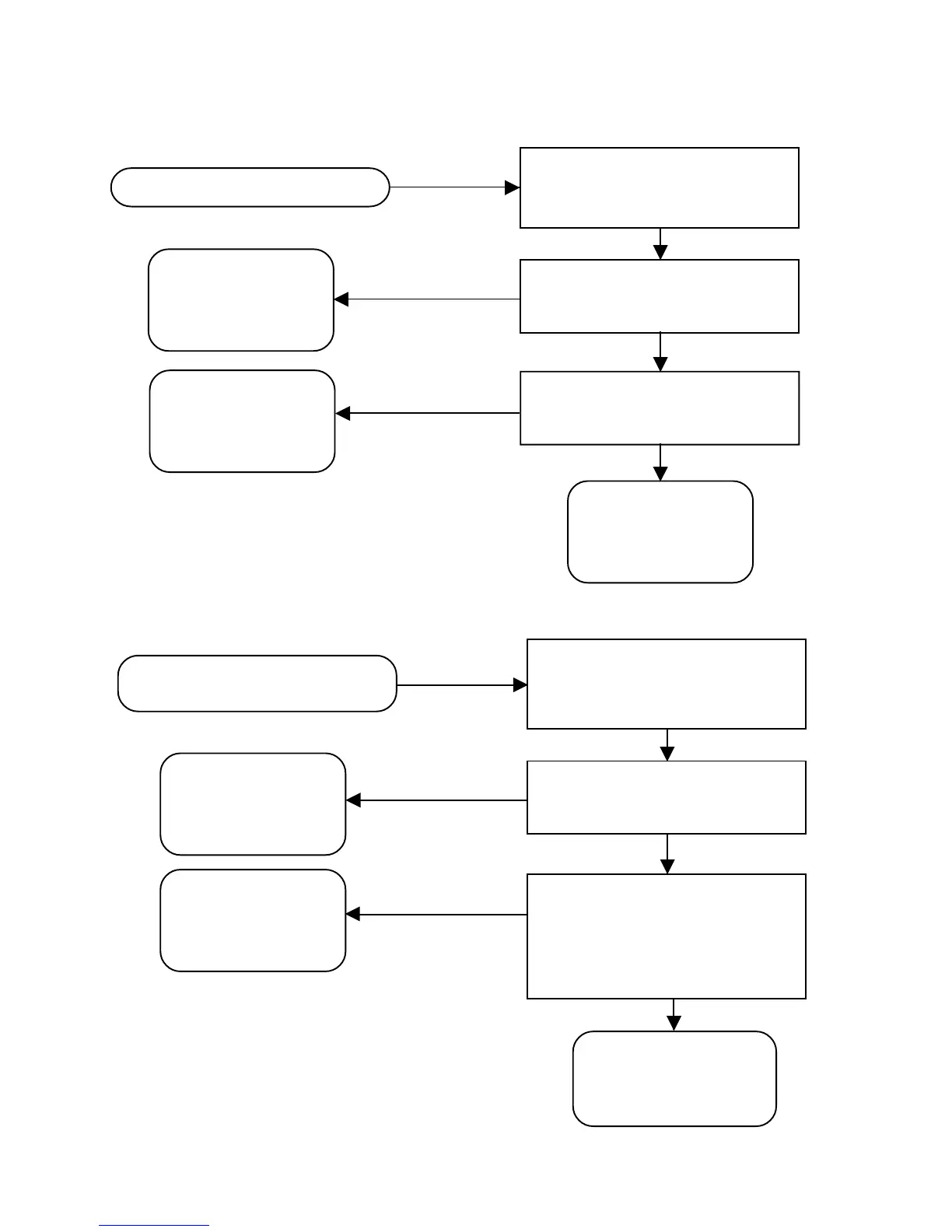

CONTROLLER POWER-UP SEQUENCE -
ABS WARNING LAMP AND ATC ACTIVE/WARNING LAMP
Verify that the ATC active/warning lamp
turns off after 2.5 seconds. This lamp
may blink, displaying the ATC
configuration during power up. See
figure 7.
The ATC active/warning lamp should
immediately illuminate when ignition
power is applied to the vehicle.
YES
NO
NO
YES
ATC Active/Warning Lamp at
Power-Up
Verify that the ATC enable/disable
switch is set to enable ATC. Turn
ignition on and observe ATC active/
warning lamp.
The ATC unit is functioning
normally. No service to ATC
components is needed.
ABS Warning Lamp at Power-Up
Verify that the ABS warning lamp stays
on for 2.5 seconds and then turns off.
The ABS warning lamp should
immediately illuminate when ignition
power is applied to the vehicle.
Turn ignition on and observe the ABS
warning lamp.
YES
NO
NO
YES
The ABS unit is
functioning normally.
No service to ABS
components is needed.
ABS warning lamp
does not come on.
Go to Section C.
The ABS warning lamp
stays on.
Go to Section F.
The ATC active/warning
lamp stays on.
Go to Section F.
ATC active/warning lamp
does not come on.
Go to Section D.
