BENDIX EC-60 ABS User Manual

33

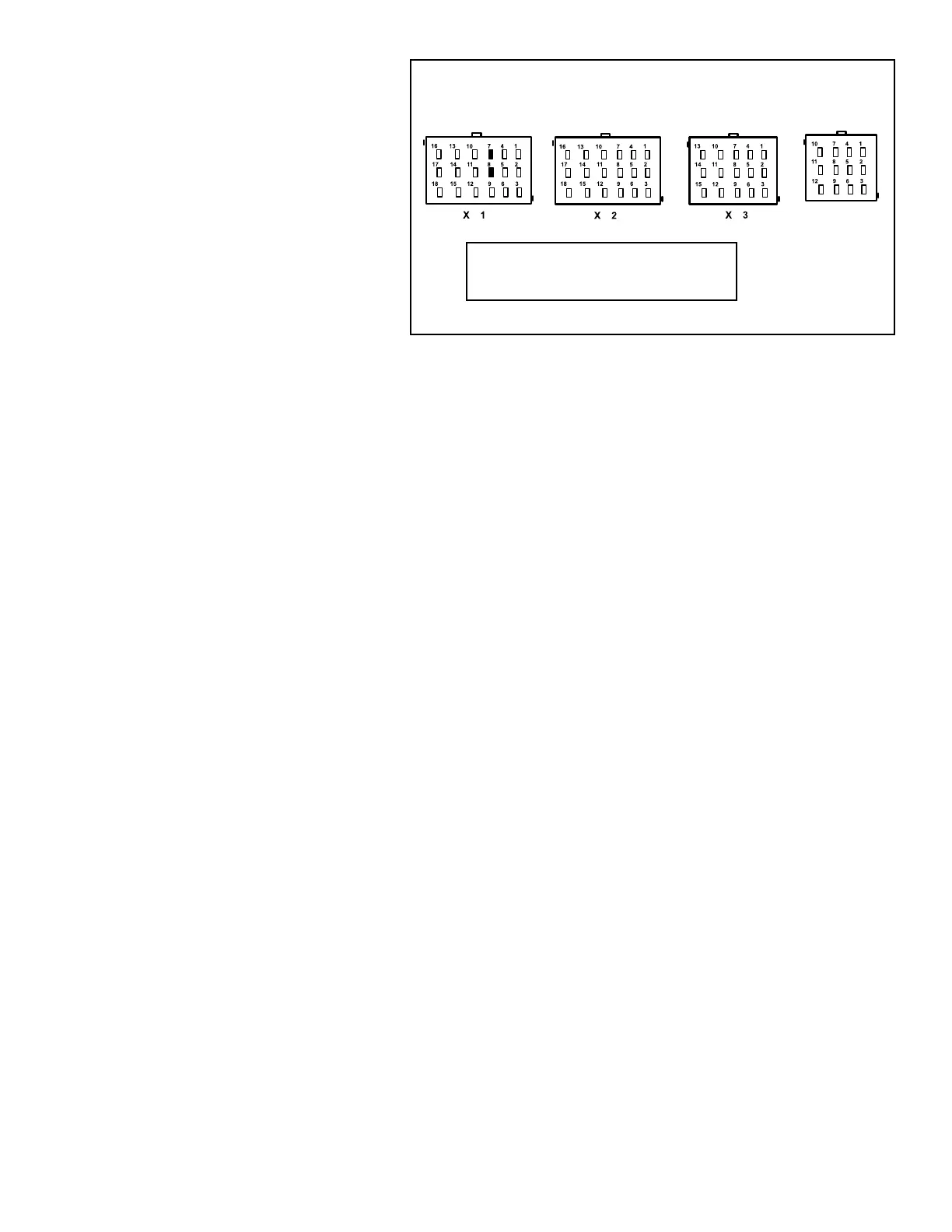

Cab-mount ECU:
Looking into wire harness connector
Connector Pin J1939
X1 7 J1939 Low
18 Way 8 J1939 High
J1939 Troubleshooting Tests:
1. Take all measurements at ECU harness
connector
2. Check for damaged or reversed J1939
wiring
3. Check for corroded or damaged wiring
connector problems such as (opens or
shorts to voltage or ground)
4. Check for other J1939 devices which
may be loading down (inhibiting) J1939
communication
X4

BENDIX EC-60 ABS Specifications

General

Type	ABS Controller
Function	Anti-lock Braking System control
Model	EC-60
Manufacturer	Bendix
Operating Temperature	-40°C to +85°C
Compatibility	Heavy-duty Vehicles
