BENDIX EC-60 ABS User Manual

44
Advanced cab models utilize four AMP connectors for wire
harness connections.

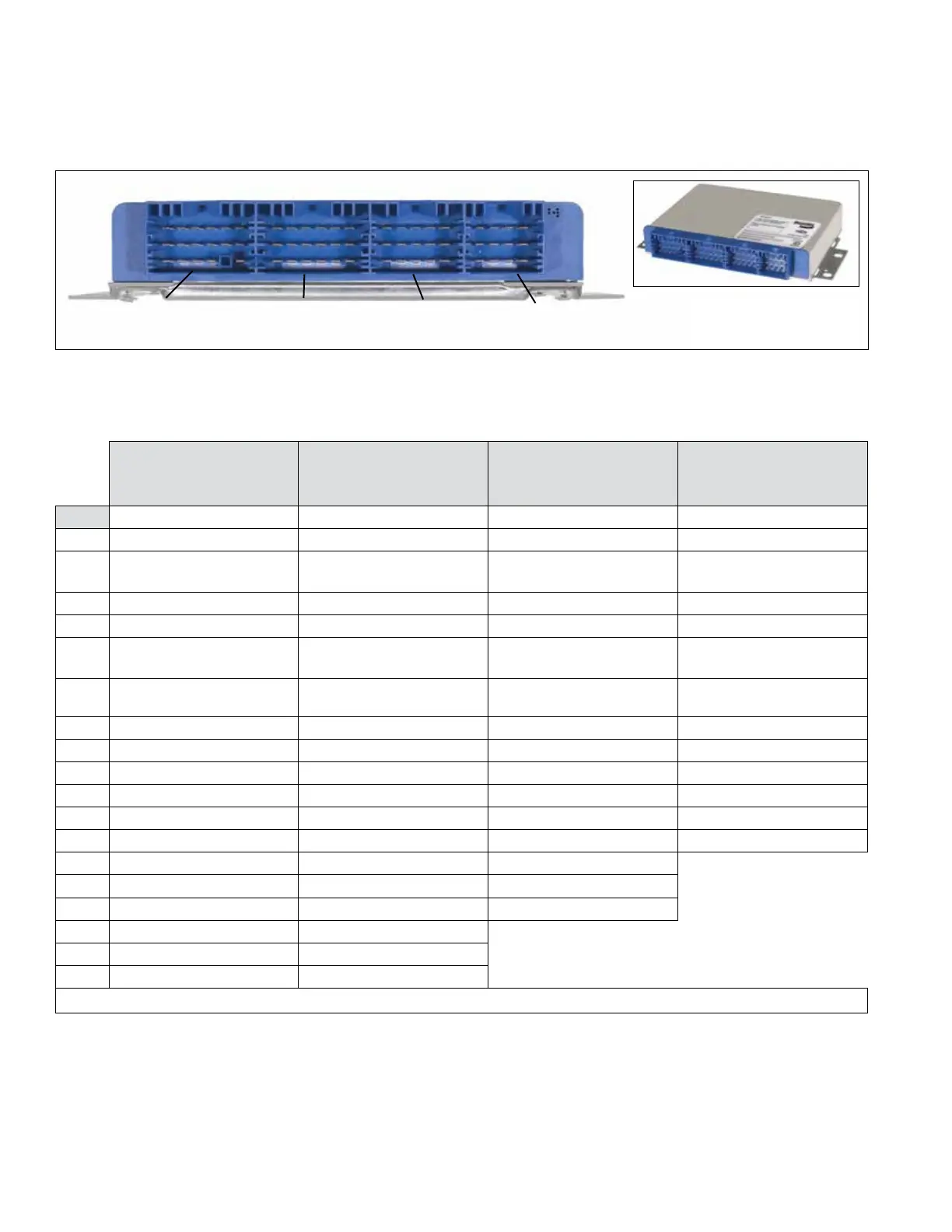

Advanced Cab Bendix EC-60 Controller
Bendix
®
EC-60
™
Controller Wire Harness
Connector Part Numbers and Pin Assignments:
ADVANCED CAB
X1
CONNECTOR
X2
CONNECTOR
X3
CONNECTOR
X4
CONNECTOR
Troubleshooting: Connectors
X1 Connector Pin
Assignments
X2 Connector Pin
Assignments
X3 Connector Pin
Assignments
X4 Connector Pin
Assignments
Pin Designation Designation Designation Designation
1 Ground PMV SA Left HLD ABS ORS Pressure Sensor CMN
2 Trailer ABS Indicator PMV SA Left REL
Diff. Lock SOL
*
Brake Demand Primary
CKT Signal
3 Ignition PMV SA Left CMN TCV CMN (SA) Load Sensor Signal
4 TCV CMN (DA) PMV SA Right HLD PMV AA Left HLD Pressure Sensor Supply
5 TCV (DA) WSS SA Left (+) TCV (SA)
Brake Demand Secondary
CKT Signal
6
ATC/ESP Indicator and ATC
ORS
PMV SA Right CMN PMV AA Left CMN PMV Trailer HLD
7 J1939 Low PMV SA Right REL PMV AA Left REL Sensor CAN Low
8 J1939 High WSS SA Left (-) Stop Lamp Output Sensor CAN High
9 SLS Input PMV DA Right CMN PMV AA Right CMN PMV Trailer REL
10 WSS DA Right (+) PMV DA Right HLD PMV AA Right HLD Sensor CAN Common
11 WSS DA Right (-) WSS SA Right (+) WSS AA Left (+) Sensor CAN Supply
12 ABS Indicator Ground PMV DA Left CMN WSS AA Right (+) PMV Trailer CMN
13 J1587 (B) PMV DA Right REL PMV AA Right REL
14 J1587 (A) WSS SA Right (-) WSS AA Left (-)
15 ABS Indicator Interlock WSS DA Left (+) WSS AA Right (-)
16 Battery PMV DA Left HLD
17 Retarder PMV DA Left REL
18 ABS Dash Indicator WSS DA Left (-)
*
AWD vehicles only. (AWD Transfer Case)

BENDIX EC-60 ABS Specifications

General

Type	ABS Controller
Function	Anti-lock Braking System control
Model	EC-60
Manufacturer	Bendix
Operating Temperature	-40°C to +85°C
Compatibility	Heavy-duty Vehicles
