BENDIX EC-60 ABS User Manual

46
ABS Component Connector Wire Terminal
Wire Seal/
Plug
Terminal
Lock
Terminal Crimp Tool
In-Cab Controller
Harness
17-Way AMP
MCP 2.8 (X1)
1718091-1
927768-9
1 - 2.5 mm
2
X1-12 & 18
968874
2.5 - 4 mm
2
968873
1.0 - 2.5 mm
2
N/A
967634
539723-2
In-Cab Controller
Harness
18-Way AMP
MCP 2.8 (X2)
8-968974-1
N/A N/A
In-Cab Controller
Harness
15-Way AMP
MCP 2.8 (X3)
8-968973-1
N/A N/A
Controller
Harness
12-Way AMP
MCP 2.8 (X4)
8-968972-1
N/A N/A
ABS Modulator
Harness
AMP Twist-Lock
(Bayonet)
1-967325-2
929975-1
N/A N/A
539635-1
ATC Modulator
Harness
AMP Twist-Lock
(Bayonet)
1-967325-3
N/A N/A
ABS Modulator
Harness
3-pin Packard
Metri-Pack
280 Series
12040977
12077411
12015323
12034145
12155975
WS-24
™
Wheel Speed Sensor Connectors
Packard GT
150 series
Packard
Metripack 150.2
series
Deutsch DTM06
series
Packard
Metripack 280
series (female)
Packard
Metripack 280
series (male)
Deutsch DT04
series
Standard round
two pin
Yaw Rate Sensor Wire Harness Connectors (4 contact):
Straight Connector: Schlemmer 9800 351 (shown)
AMP Connector 2-967325-1
ITT Cannon Connector 121583-001
90 degree Connector: Schlemmer 9800 331
Yaw Rate Sensor Wire Harness
Contact Pin Terminals:
Schlemmer 7814 125
AMP 0-962981-1
ITT Cannon 031-8717-120
SAS-60
™
Sensor Connectors:
Robert Bosch 1 928 404 025,
Robert Bosch 1 928 498 001
One Meter Adapter to Connector:
Bendix 5015242 (shown)
Packard 12092162, pins 12064971
Brake Demand Sensor/Load Sensor
Wire Harness Connectors:
Metri-Pack (Packard) 1206 5287
Contact Pins:
Packard 1210 3881

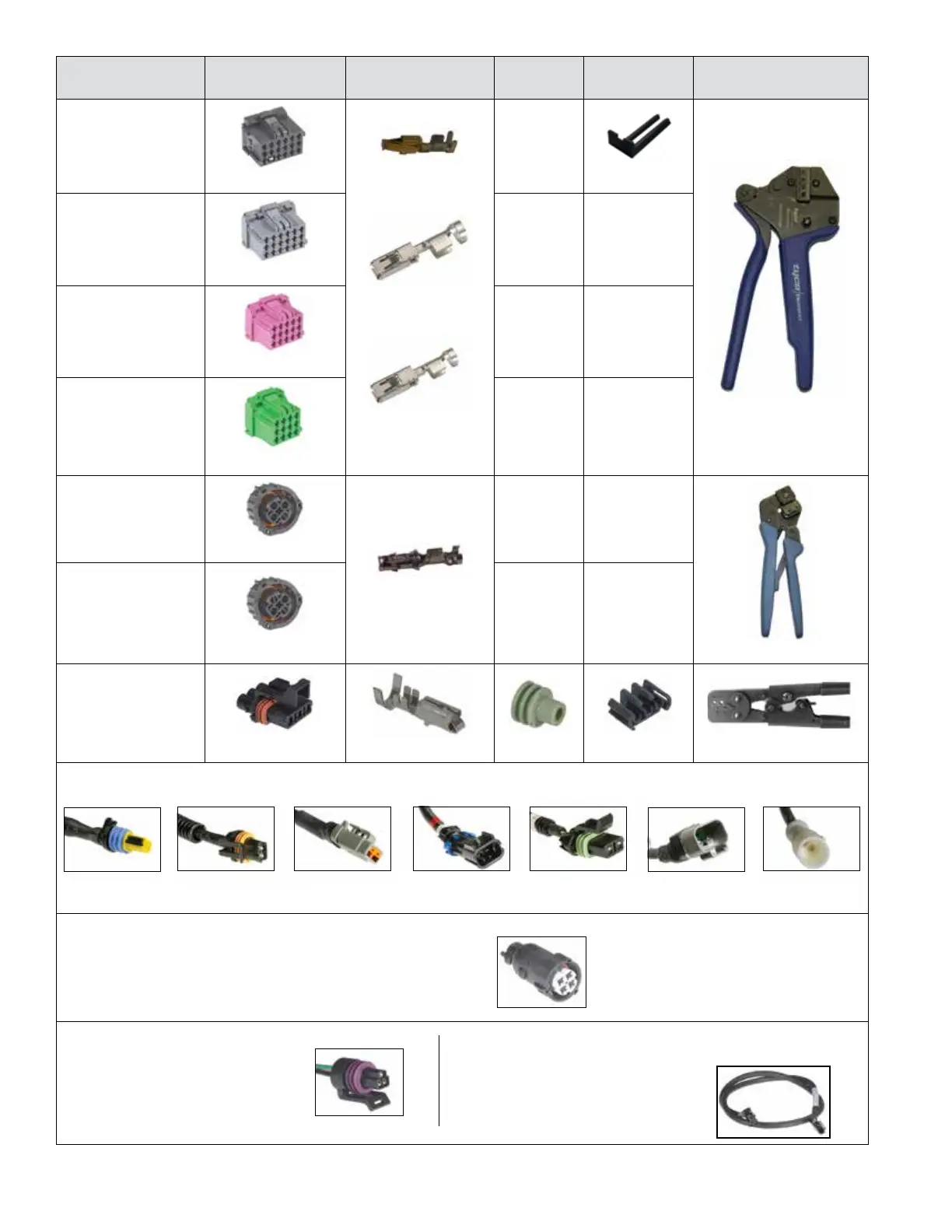

CHART 4 - EC-60
™
CONTROLLER COMPONENT CONNECTORS
