Autostacker™ Parking Lift 11 P/N 5900002 — Rev. D — August 2019
Orientation

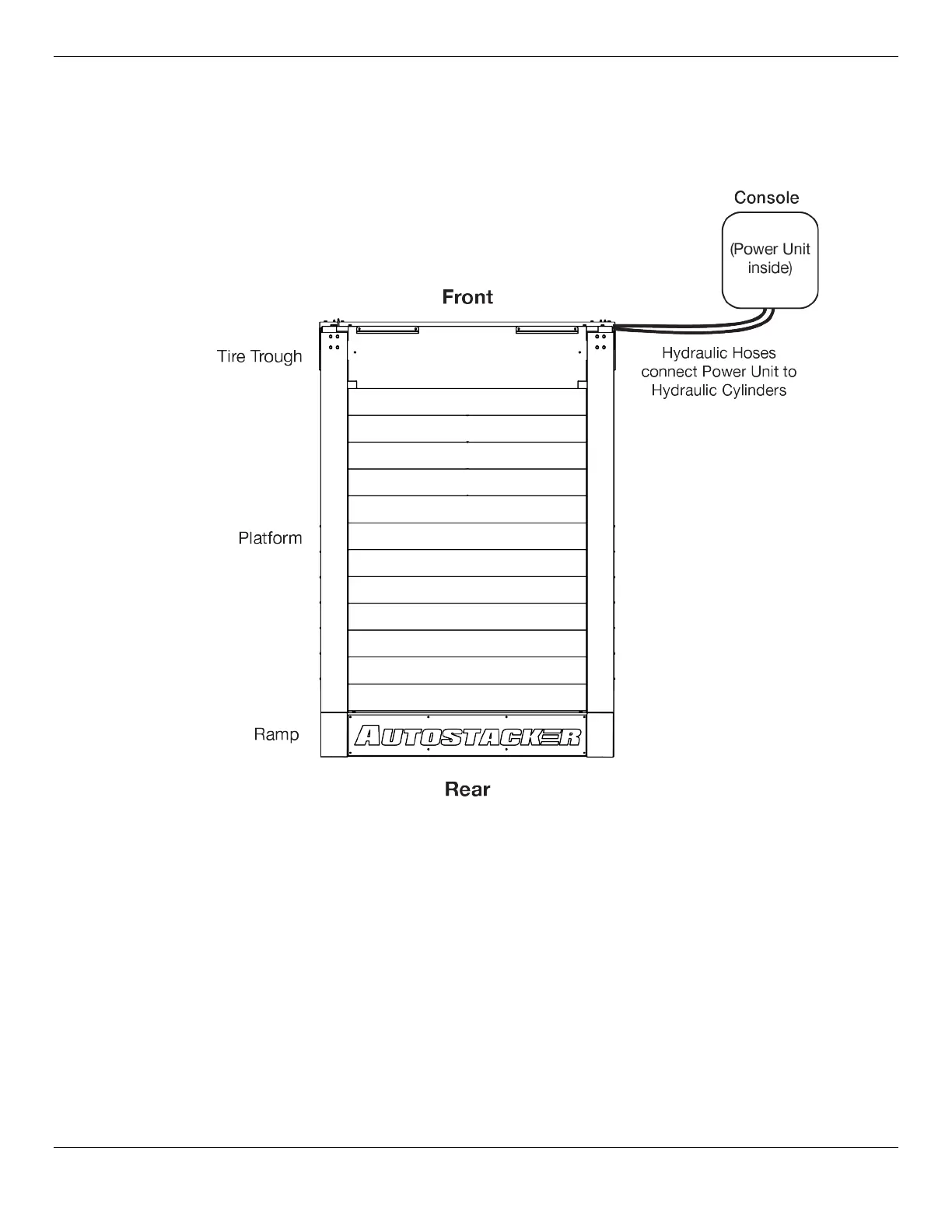

The following diagram shows the Console on the right side; it can be placed on either side up to 30
inches away from the Lift.
Not all components are shown. Drawing not necessarily to scale.
