Autostacker™ Parking Lift 51 P/N 5900002 — Rev. D — August 2019
Multi-Autostacker
Autostacker is available in a Multi-Lift configuration where you can control up to 12 Lifts with one
Master Power Unit; however, only
one
Lift can be raised or lowered at a time.
The installation for each Autostacker in a Multi-Lift setup is similar to that of a single Autostacker. The
main differences include separate procedures for routing the Hydraulic Hoses and the Return Line to a
Master Power Unit, in addition to installing a Control Stand for each Lift that allows you to operate a
specific Autostacker in your setup. The following pages describe those procedures.
For a Multi-Lift setup, you will need the following:
• Autostacker Lifts. You decide how many Lifts you want in your setup.
• Control Kits. Connects the Control Stand and Hydraulic Hoses to the Lift. One Kit per Lift.
• MPU (Master Power Unit). Provides the Hydraulic force needed to operate the Lifts. One MPU for
up to 12 Lifts.
• MPU Plumbing Kit. Connects the Master Power Unit to the first Lift. One Kit total.
• MPU Enclosure. Optional. Protects the Power Unit from the outdoor elements. Not included.

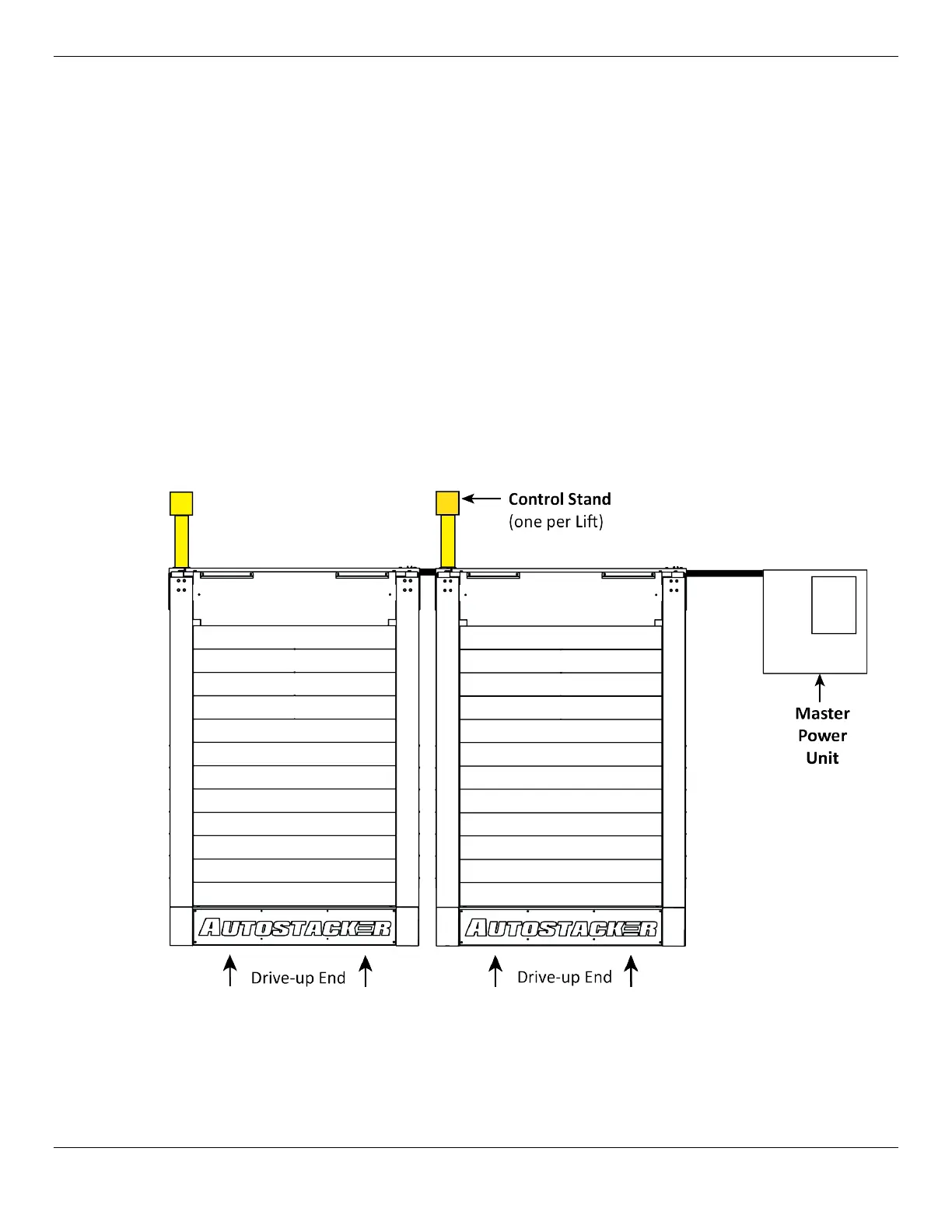

The following drawing shows the Control Stands at the Front of the Lifts.
Not necessarily to scale. Not all components are shown. The Front of the Lift is where the Front of the
Vehicle commonly faces once driven onto the Platform.
