Autostacker™ Parking Lift 25 P/N 5900002 — Rev. D — August 2019
Assemble the Console and Attach the Power Unit
The Console can go on either side of the front of the Autostacker. The Console only works with Single-
Lift configurations.
Note: The Console comes unassembled from the factory. This section describes how to assemble
the Console and attach the Power Unit inside the Console.
Tip If you wish to place the Console further than 30 inches from your Autostacker, you will
need to get Hydraulic Hoses that are long enough to reach the Autostacker from where
you want to put the Console. These should be relatively easy to obtain from the local
hydraulics shop, once you know how long you need the Hoses. You will also need a
longer Return Line.

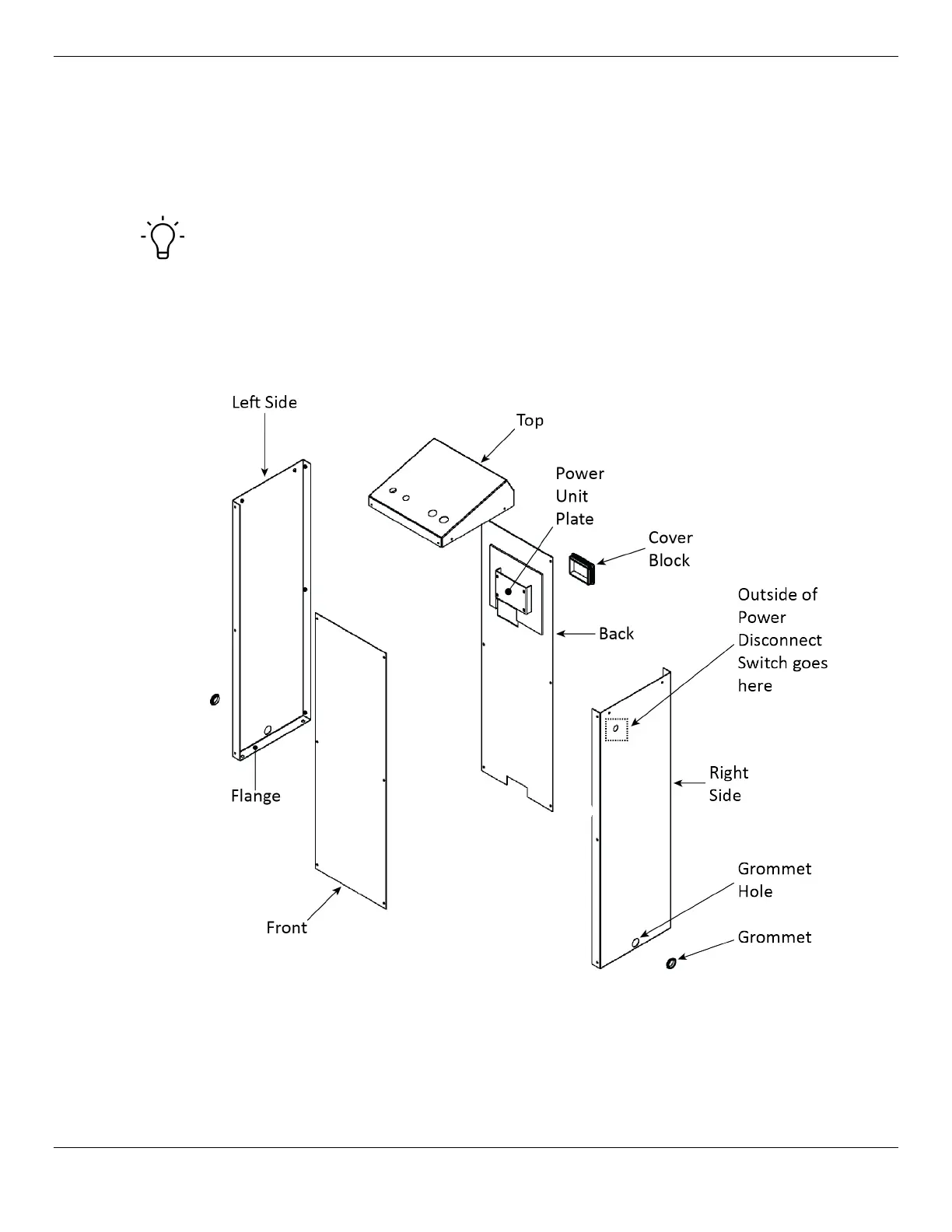

The following drawing shows the components that make up the Console.
