Autostacker™ Parking Lift 34 P/N 5900002 — Rev. D — August 2019
Wiring a Power Disconnect Switch
⚠ DANGER All wiring
must
be performed by a licensed, certified Electrician. Do not perform
any
maintenance or installation on the Lift without first making sure that main
electrical power has been disconnected from the lift and
cannot
be re-energized
until all procedures are complete.

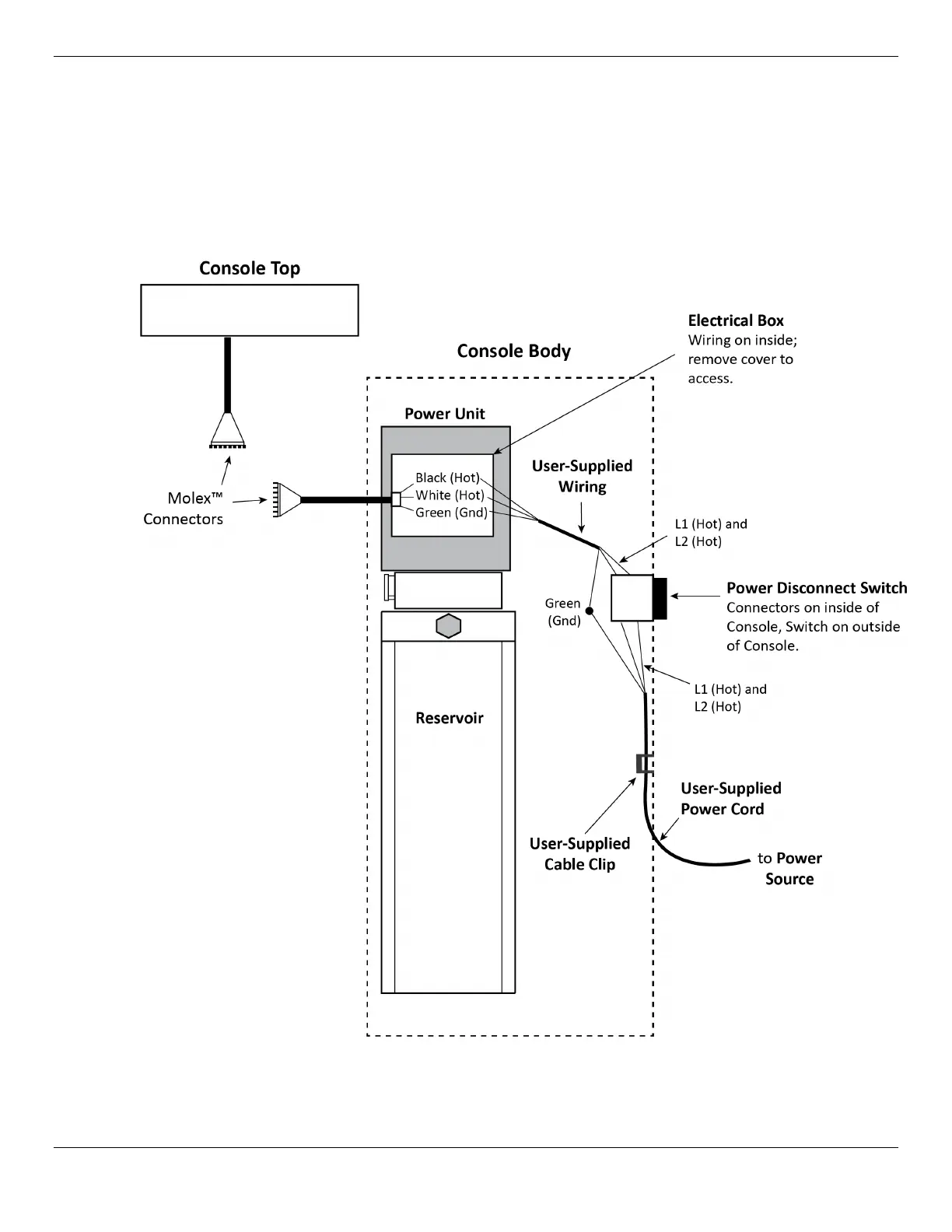

The following diagram shows the components related to installing a Power Disconnect Switch.
Drawing not to scale. Not all components shown. Only connect Molex connectors to each other.
