Autostacker™ Parking Lift 49 P/N 5900002 — Rev. D — August 2019
Optional Access Panel
The optional Autostacker Access Panel gives you access to the underside of the Vehicle that is raised
on an Autostacker, making it into a Service Lift in addition to a Parking Lift.
You can install up to two Access Panels per Autostacker, which works with the
standard PL-6SR
model only
.
An Access Panel is made up of two pieces:
• The Structure. Is bolted to the Autostacker in place of three Platform sections. Holds the
Removable Panel.
• The Removable Panel. Sits in the Structure. Remove to access the underside of a Vehicle
parked on the Platform. Dimensions are 35 inches by 53 inches.
⚠ WARNING: The Removable Panel does not take up the entire width of the Platform; when
parking a Vehicle on the Platform, try to keep the tires off the Removable Panel—
keep them on the Structure instead.

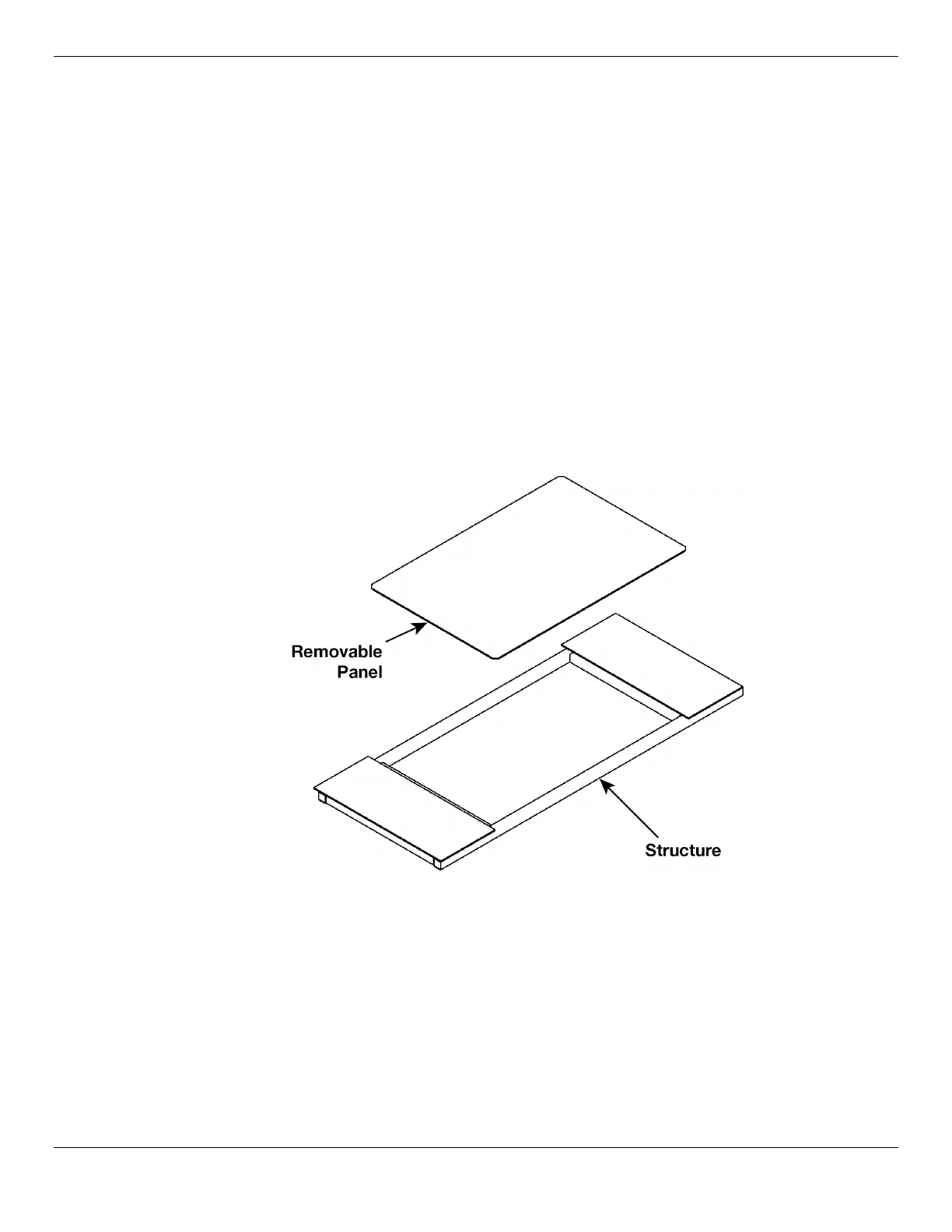

The following image shows the major parts of the Access Panel.
