Autostacker™ Parking Lift 71 P/N 5900002 — Rev. D — August 2019
Multi-Autostacker
Each Control Stand requires three Electrical Cables, of varying gauges:
• #14 AWG. Four wires; Green, Red, Black, and White. One end of the Cable goes to the Power
Unit, and the other end goes through the Bottom Connector Tube, connecting to each Lift.
• #16 AWG. Two wires; Black and Blue. Interlinks the two Solenoids on each Lift, and connects to
the Blue and Orange wire coming from the Control Stand.
• #16 AWG. Six wires; Green, Red, Black, White, Blue, and Orange. One end connects to the
Control Box (on Control Stand), and the other end connects to the Cable that is routed through the
Bottom Connector Tube.

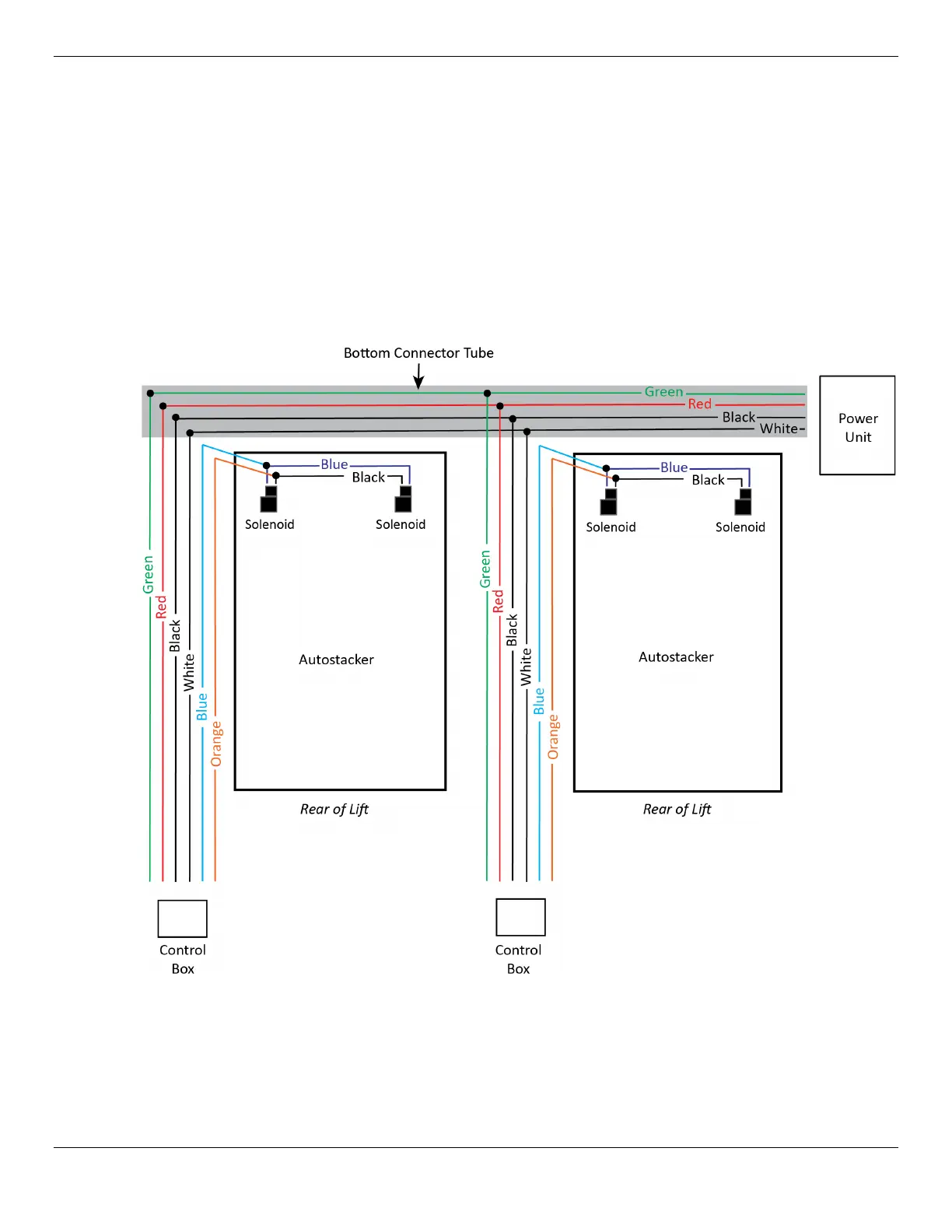

The following graphic shows the various connections to make to your Electrical system.
Not drawn to scale. Some components are missing or exaggerated for easier understanding.
