10

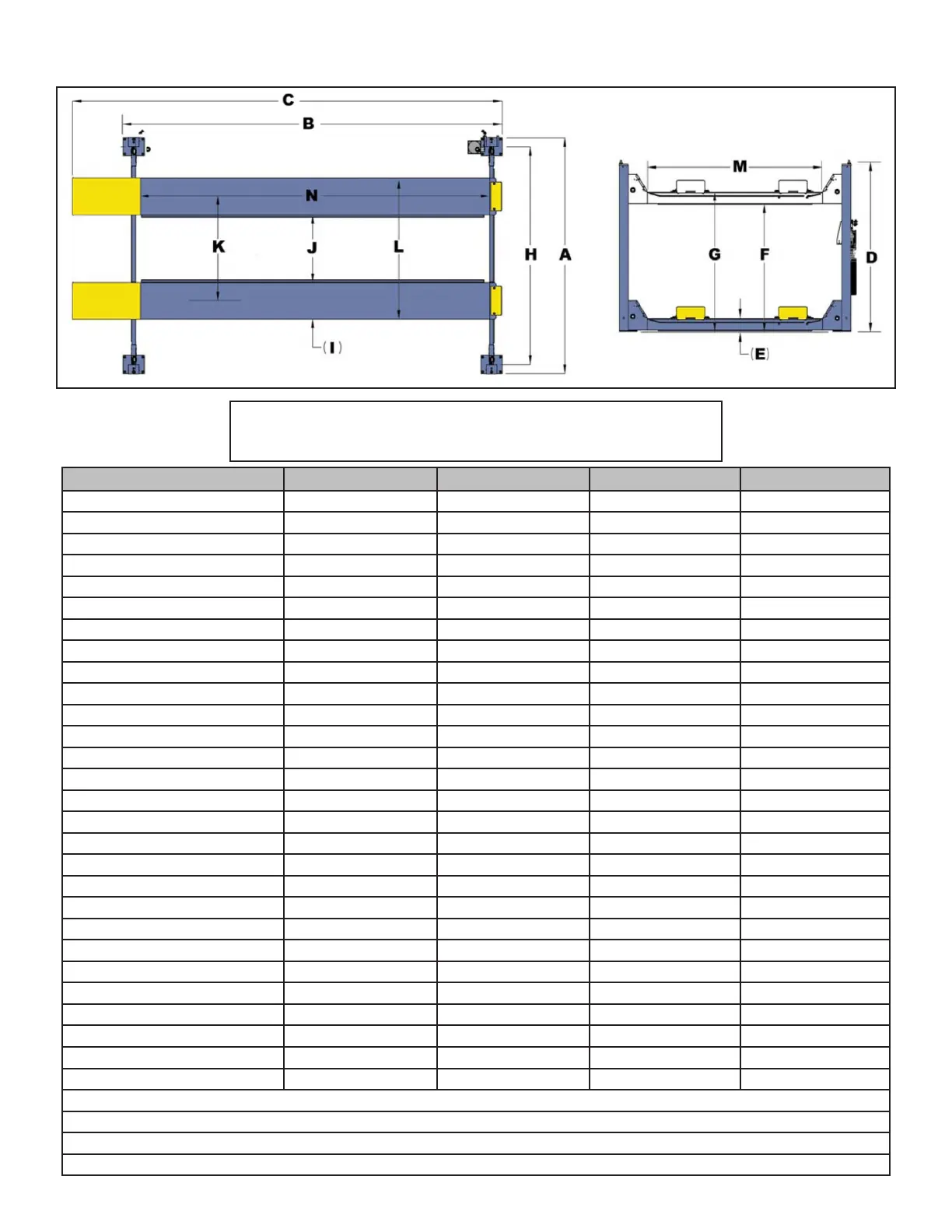

FLOOR PLAN
MODEL HDS-35 HDS-35X HDS-37 HDS-37X
Lifting Capacity* 35,000 lbs. / 15,876 Kg. 35,000 lbs. / 15,876 Kg. 37,000 lbs. / 18,144 Kg. 37,000 lbs. / 18,144 Kg.
*Max Capacity / Front Axle 17,500 lbs. / 7,938 Kg. 17,500 lbs. / 7,938 Kg. 18,500 lbs. / 8,391 Kg. 18,500 lbs. / 8,391 Kg.
*Max Capacity / Rear Axle 17,500 lbs. / 7,938 Kg. 17,500 lbs. / 7,938 Kg. 18,500 lbs. / 8,391 Kg. 18,500 lbs. / 8,391 Kg.
A -Overall Width 154” / 3899 mm 154” / 3899 mm 154” / 3899 mm 154” / 3899 mm
B -Outside Length 257” / 6528 mm 317” / 8052 mm 257” / 6528 mm 317” / 8052 mm
C -Overall Length 296” / 7524 mm 356” / 9048 mm 296” / 7524 mm 357” / 9068 mm
D -Height of Columns 91-1/4” / 2318 mm 91-1/4” / 2318 mm 91-1/4” / 2318 mm 91-1/4” / 2318 mm
E -Min. Runway Height 9-1/2” / 240 mm 9-1/2” / 240 mm 9-1/2” / 240 mm 9-1/2” / 240 mm
F -Max. Rise 60” / 1524 mm 60” / 1524 mm 60” / 1524 mm 60” / 1524 mm
G -Max. Lifting Height 69-1/2” / 1764 mm 69-1/2” / 1764 mm 69-1/2” / 1764 mm 69-1/2” / 1764 mm
H -Width Between Columns 133-1/2” / 3391 mm 133-1/2” / 3391 mm 133-1/2” / 3391 mm 133-1/2” / 3391 mm
I -Runway Width 28” / 711 mm 28” / 711 mm 28” / 711 mm 28” / 711 mm
J -Width Between Runways (*) MIN 36” / 914 mm 36” / 914 mm 36” / 914 mm 36” / 914 mm
J -Width Between Runways (*) MAX 47” / 1194 mm 47” / 1194 mm 47” / 1194 mm 47” / 1194 mm
K -Runway Centerline (*) MIN 64” / 1625 mm 64” / 1625 mm 64” / 1625 mm 64” / 1625 mm
K -Runway Centerline (*) MAX 75” / 1905 mm 75” / 1905 mm 75” / 1905 mm 75” / 1905 mm
L -Outside Edge of Runways (*) MIN 92” / 2367 mm 92” / 2367 mm 92” / 2367 mm 92” /2367 mm
L -Outside Edge of Runways (*) MAX 103” / 2616 mm 103” / 2616 mm 103” / 2616 mm 103” /2616 mm
M -Drive-Thru-Clearance 109” / 2769 mm 109” / 2769 mm 109” / 2769 mm 109” /2769 mm
N -Length of Runways 260-1/4” / 6610 mm 320-1/2” / 8141 mm 260-1/4” / 6610 mm 320-1/2” / 8141 mm
Min. Wheelbase @ Rated Capacity 185” / 4699 mm 230” / 5842 mm 185” / 4699 mm 230” / 5842 mm
Min. Wheelbase @ 75% Capacity 160” / 4064 mm 195” / 4953 mm 160” / 4064 mm 195” / 4953 mm
Min. Wheelbase @ 50% Capacity 135” / 3429 mm 165” / 4191 mm 135” / 3429 mm 165” / 4191 mm
Min. Wheelbase @ 25% Capacity 110” / 2794 mm 130” / 3302 mm 110” / 2794 mm 130” / 3302 mm
Locking Positions
13 13 13 13
Lock Spacing
Every 4” / 100 mm Every 4” / 100 mm Every 4” / 100 mm Every 4” / 100 mm
Lifting Time 75 Seconds 75 Seconds 75 Seconds 75 Seconds
Standard Motor (***) 220 VAC / 60 Hz. 1Ph. 220 VAC / 60 Hz. 1Ph. 220 VAC / 60 Hz. 1Ph. 220 VAC / 60 Hz. 1Ph.
Emission sound pressure at Operator Position < 70 dB(A)
* This dimension may be limited with the addition of rolling jacks. See Rolling Jack Specications on Separate page.
** For CE compliant countries see errata sheet included with control panel.
The design, material and specications are subject to change without notice.
*IMPORTANT NOTE*
Check Diagonal Measurements
To Ensure Square Layout Diagonal Measurements Must Be Equal.
