23
Male Branch
“Tee” Fitting
Male Branch
“Tee” Fitting
Route Airlines
Though Retainers
Underneath Runway

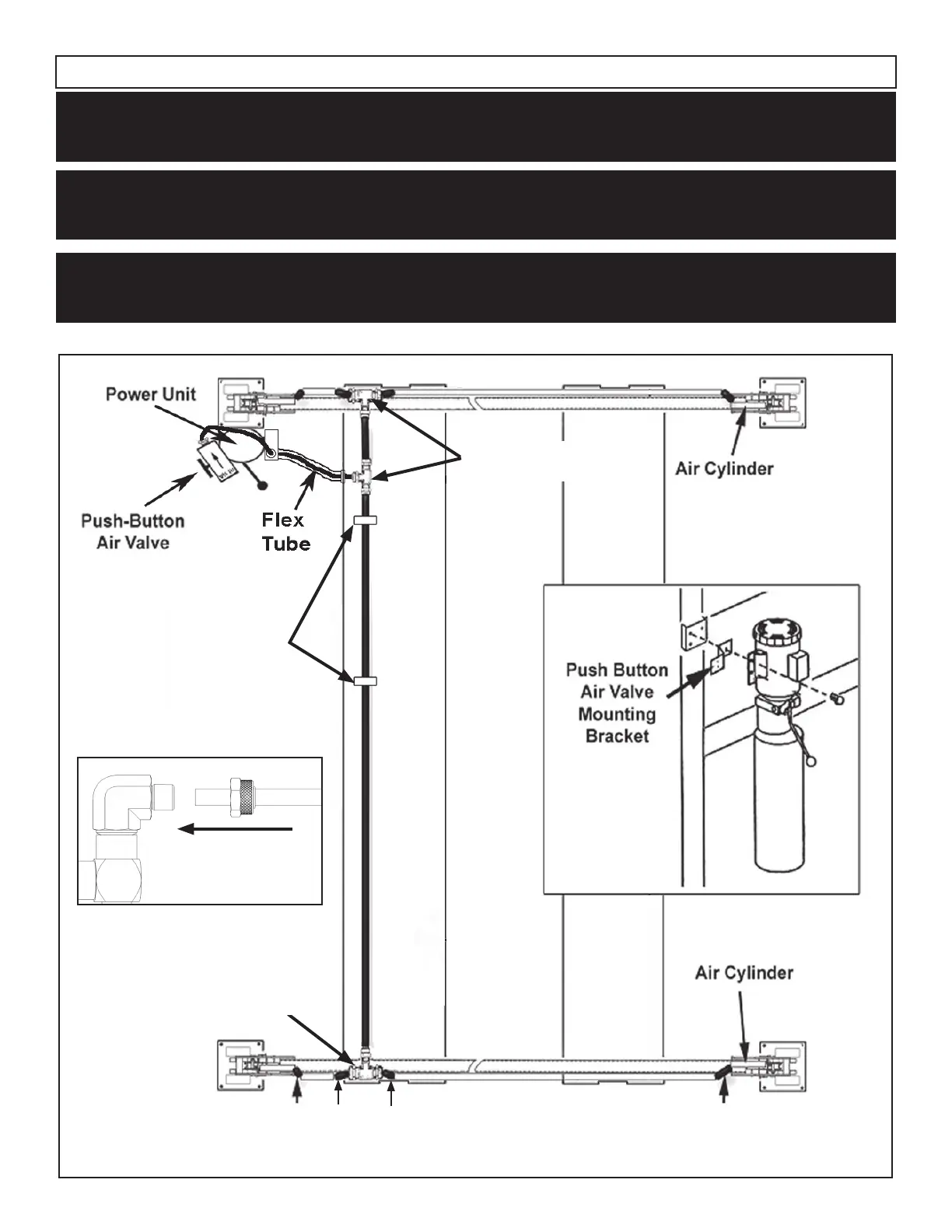

SAFETY AIR LINE ROUTING
NOTE:
CUT THE PROVIDED 1/4” AIR LINE TUBING WITH A SHARP BLADE TO LENGTHS AS REQUIRED. TUBING MUST
BE CUT SQUARE WITH ALL PLASTIC BURRS REMOVED.
AIR TUBING ASSEMBLY:
SEE PAGE 21 FOR ASSEMBLY OF AIR LINE TUBING INTO FITTING.
CAUTION:
REMOVING THE AIR TUBING FROM THE COMPRESSION FITTINGS WILL CAUSE DAMAGE TO THE TUBING
ITSELF. USE OF A DAMAGED AIR LINE MAY RESULT IN SAFETY LOCK FAILURE.
NOTE: FEED AIR LINE TUBING THROUGH THE RETAINER TUBING
ON THE OUTSIDE OF THE CROSSTUBES
