DIMENSIONS ARE IN MM
☺
A
6
7
3
2
4
1
5
8
DETAIL A
SCALE 1 : 4
9
11
10
ITEM
NO
PART
NUMBER
DESCRIPTION
QTY
REV

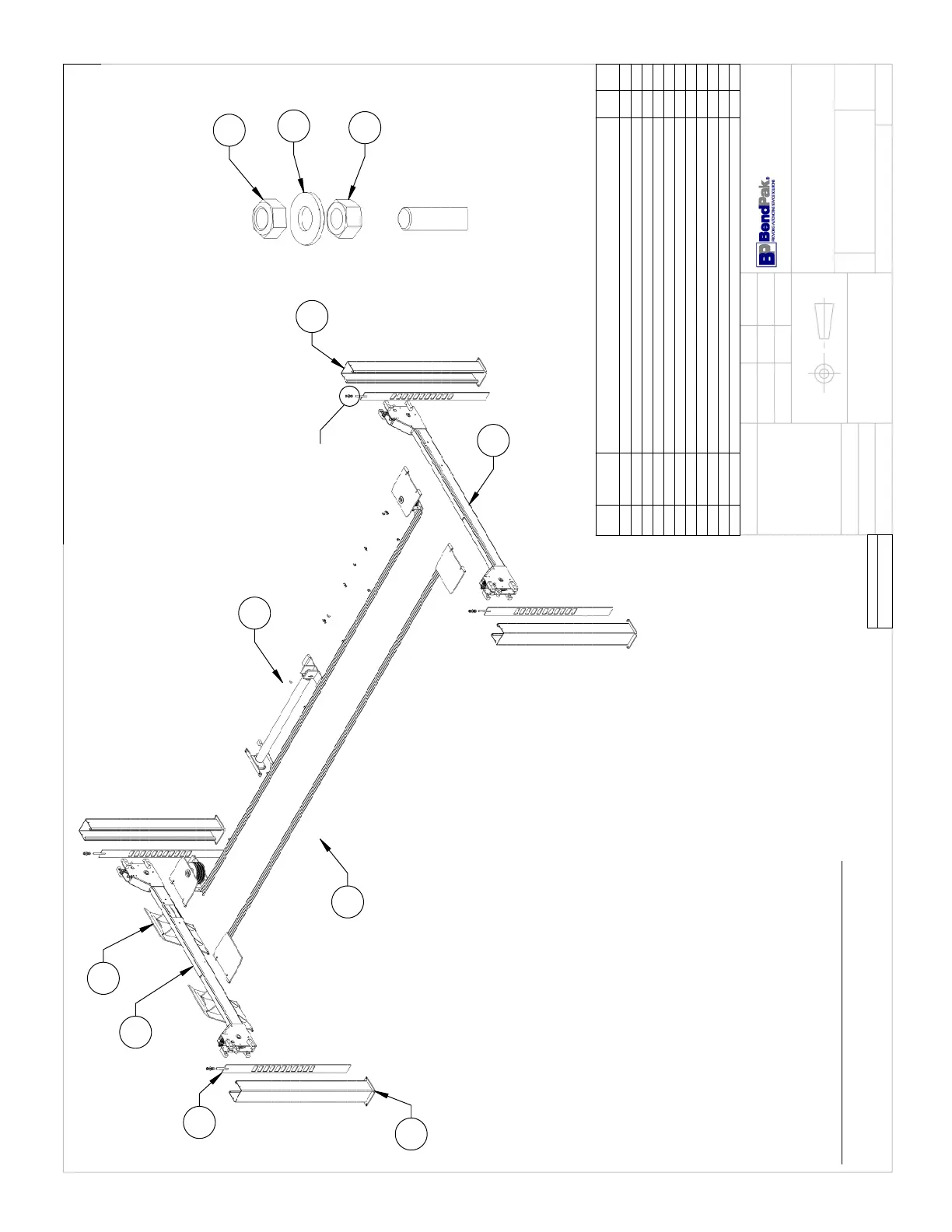

1 5215610
HDS-18 SERIES LARGE WINDOW CROSSTUBE ASSEMBLY
1
A
2 5215564
HDS-18X POWER SIDE RAMP ASSEMBLY
1
B
3 5600706
HDS-18X OFF SIDE RAMP WELDMENT
1
A
4 5215607
HDS-18 DRIVE UP RAMP ASSEMBLY
2
A
5 5215611
HDS-18 SERIES SMALL WINDOW CROSSTUBE ASSEMBLY
1
A
6 5600755
HDS-18 SERIES SAFETY LADDER WELDMENT
4
A
7 5600350
HD/HDS-18/27/35 SERIES POST WELDMENT
3
A
8 5600351
HD/HDS-18/27/35 SERIES POWER POST WELDMENT
1
A
9 5535011
NUT M22 x 2.5 NL
4
-
10 5535304
NUT M22 x 2.5
4
-
11 5545345
WASHER M22 x 50mm FLAT
4
-
NEXT ASSEMBLY
5260080
REVISION
REV
DESCRIPTION
DATE
EDITED BY
ECO#
A
PRODUCTION RELEASE, DERIVED FROM 5245369
05/03/2013
TM
00593
SHEET 1 OF 1
REV
DWG. NO.
A
SIZE
TITLE:
NAME
DATE
CHECKED
DRAWN
SIZE:
MATERIAL:
A
1645 LEMONWOOD DR.
SANTA PAULA, CA 93060
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS DRAWING IS
THE SOLE PROPERTY OF
BENDPAK INC.
ANY
REPRODUCTION IN PART OR AS A WHOLE WITHOUT
THE WRITTEN PERMISSION OF
BENDPAK INC.
IS
PROHIBITED.
NOTE: UNLESS OTHERWISE SPECIFIED
.
TM
5245267
HDS-18X LIFT
SUPERSTRUCTURE
---
---
05/03/2013
DO NOT SCALE DRAWING
1:60
SCALE:
THIRD ANGLE PROJECTION
SEE SHIPPING INSTRUCTIONS FOR FINAL PACKAGING
