LR-10000 Low-Rise Scissor Lift 12 P/N 5900075 — Rev. B — August 2021
Clearances around the Lift
For safety purposes, a reasonable amount of clear space around the Lift is
required
.
You also need to make sure to leave enough space
above
the Vehicles you will be raising. Be sure to
check for low-hanging obstructions such as hanging lights, beams, and so on.
Do not install the
Lift under low-hanging obstructions
.

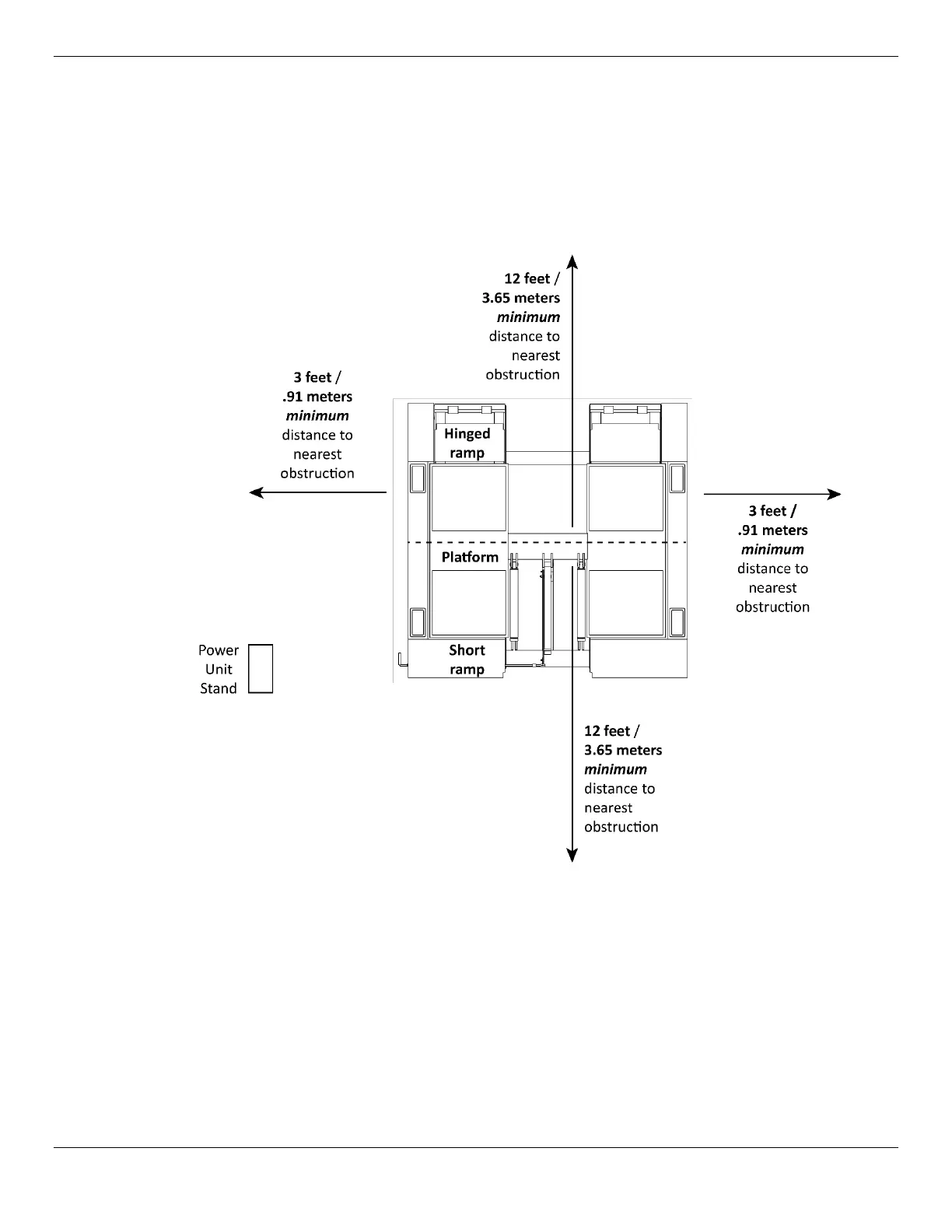

Note: The Power Unit Stand can be on either side of the Lift, but it must be on the Short Ramp end.
Top view. Not drawn to scale. Not all components are shown.
