LR-10000 Low-Rise Scissor Lift 23 P/N 5900075 — Rev. B — August 2021
6. Attach the curved end of the Long Hydraulic Hose to the Tee Fitting (5550066) on the Hydraulic
Cylinder closest to the Power Unit; finger tighten the connection.

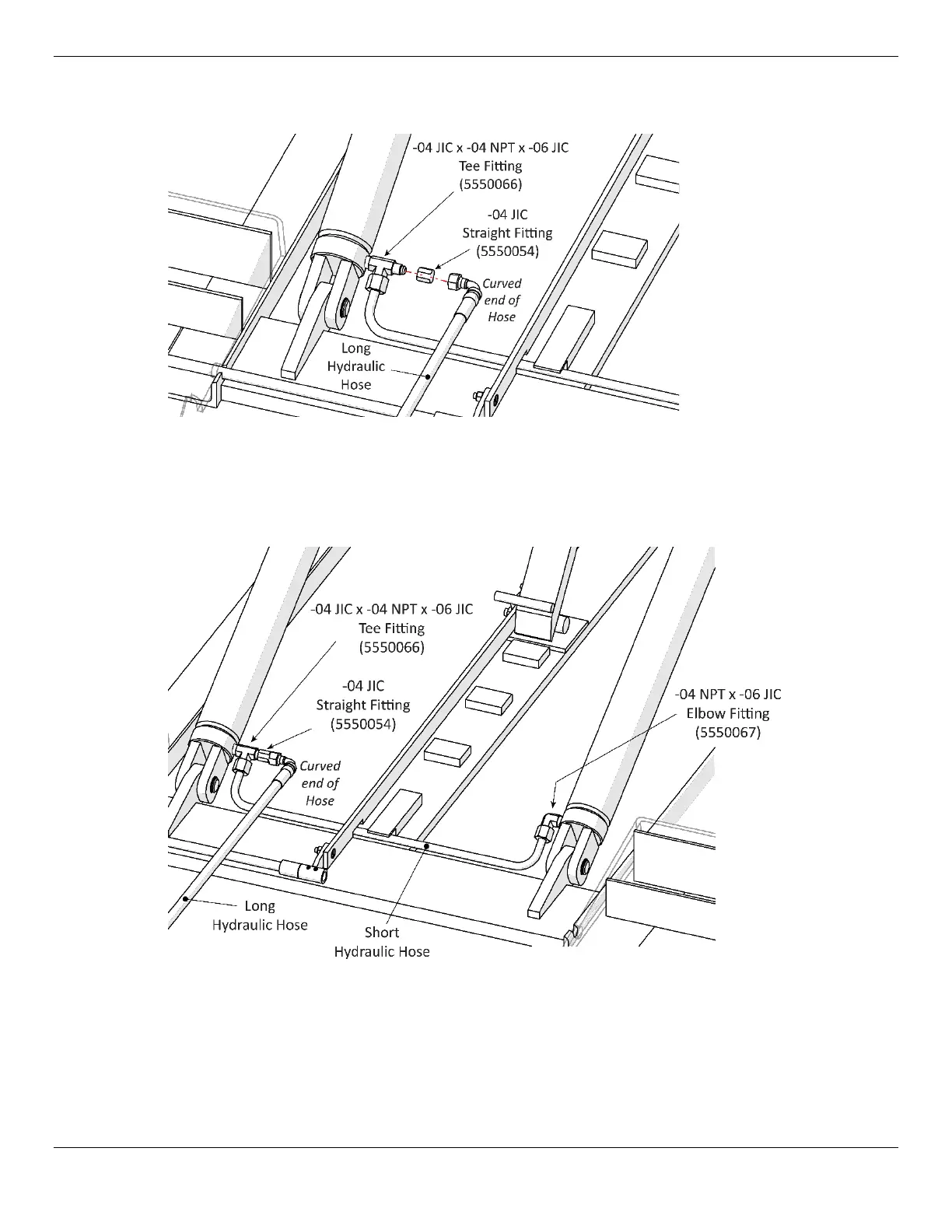

Drawing shows a close up of the connections to the Tee Fitting. Not necessarily to scale.
7.
Switching to the Short Hydraulic Hose
, make sure it is in position and that both ends are
connected to the Hydraulic Fittings that link the Hydraulic Cylinders together.
The following drawing shows the connections the Short Hydraulic Hose makes.
Drawing not to scale. Some components not shown, other components exaggerated for clarity.
Fittings shown not connected for clarity.
8. Make sure both Hydraulic Hoses are correctly routed, then use appropriate tools to securely
tighten all connections.
